StarTech DisplayPort To DVI D Adapter Latching DP Connector 1080p Video Converter For Monitors Adapter/Video StarTech.com Monitor DP2DVI
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Adapter Type: Displayport/DVI-D
Connector Type on First End: DVI-D Digital Video - Female
Connector on First End Details: 1 x 25-pin DVI-D Digital Video - Female
Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Maximum Resolution Supported: 1080
Features: Screw Lock,Latching Connector,Passive
Color Family: Black
Product Color: Black
Height: 0.80" (20.32 mm)
Width: 1.70" (43.18 mm)
Length: 9.40" (238.76 mm)
Weight (Approximate): 2.20 oz (62.37 g)
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 3 Year

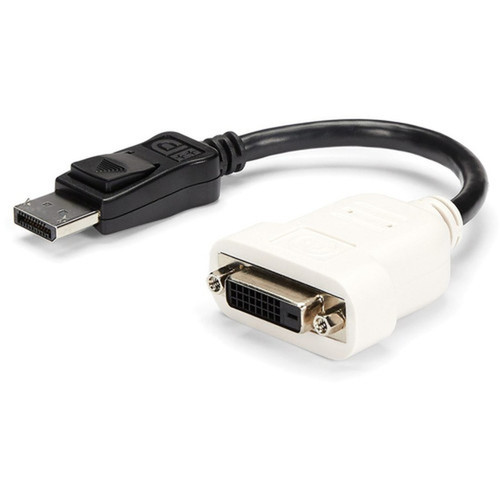

- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 (HBR2) to DVI-D single-link adapter connects a DVI display or projector supporting 1920x1200 & 1080p at 60Hz; EDID pass-through ensures compatibility between source & display
6.3" (16cm) attached cable - COMPATIBILITY: Passive video converter supports DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations

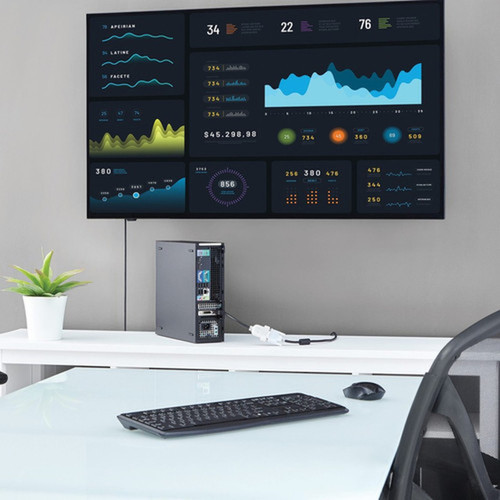

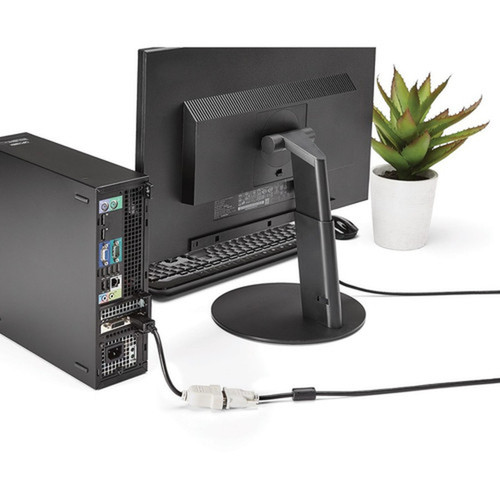

- CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI display adapter; Durable design makes it ideal for travel to & from office/home

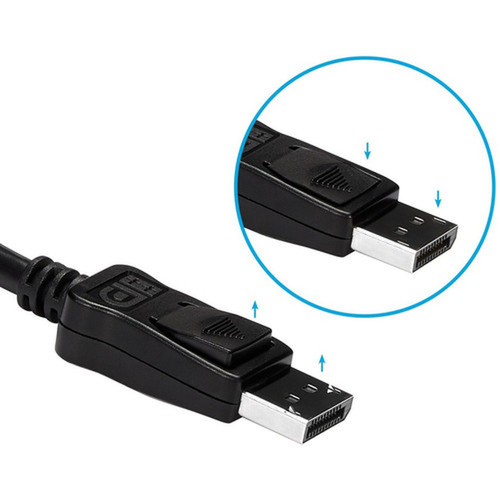

Tested w/ DVI cables up to 25ft - LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection
Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection - EASY TO USE: With no software or drivers required, the DP to DVI adapter converter dongle works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI female adapter
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP2DVI |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Model | DP2DVI |
| Product Name | DisplayPort to DVI Video Converter Cable |
| Packaged Quantity | 1 Each |
| Product Type | Video Adapter |
| Technical Information | |
| Adapter Type | Displayport/DVI-D |
| Connector Type on First End | DVI-D Digital Video - Female |
| Connector on First End Details | 1 x 25-pin DVI-D Digital Video - Female |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Maximum Resolution Supported | 1080 |
| Features | Screw Lock,Latching Connector,Passive |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 0.80" (20.32 mm) |
| Width | 1.70" (43.18 mm) |
| Length | 9.40" (238.76 mm) |
| Weight (Approximate) | 2.20 oz (62.37 g) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
