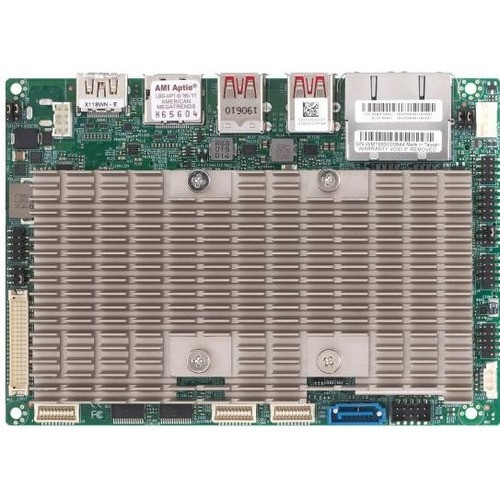

Supermicro 3.5 SBC Server Motherboard Socket BGA-1528 Core Ready 64 GB DDR4 SoDIMM Support Dual Module Maximum SDRAM RAM X MBD-X11SWN-H-B
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- X11SWN-H Server Motherboard
- 1 x SATA Power Cable
- 1 x SATA cable
- 1 x Passive Heatsink
- 1 x DC IN Power Cable
Processor Socket: Socket BGA-1528
Integrated Processor Type: Core i7
Integrated Processor Model: i7-8665UE
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 2400 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Model: UHD Graphics 620
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of USB Ports: 4
Number of USB 3.1 Ports: 4
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 1
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 4
Form Factor: 3.5" SBC
Width: 5.70" (144.78 mm)
Depth: 4" (101.60 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- 3.5" SBC style to support numerous features for constructing a reliable computing system
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X11SWN-H-B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X11SWN-H |
| Product Name | X11SWN-H Server Motherboard |
| Packaged Quantity | 1 |
| Package Type | Bulk |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Processor Socket | Socket BGA-1528 |
| Integrated Processor | |
| Integrated Processor Type | Core i7 |
| Integrated Processor Model | i7-8665UE |
| Integrated Processor Core | Quad-core (4 Core) |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 2400 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | UHD Graphics 620 |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.1 Ports | 4 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 1 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | 3.5" SBC |
| Width | 5.70" (144.78 mm) |
| Depth | 4" (101.60 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
| Product | Supermicro DC Adapter - 60 W |
| SKU | MCP-250-10117-0N |
| Sale Price | $53.08 |
[/custom-options]
