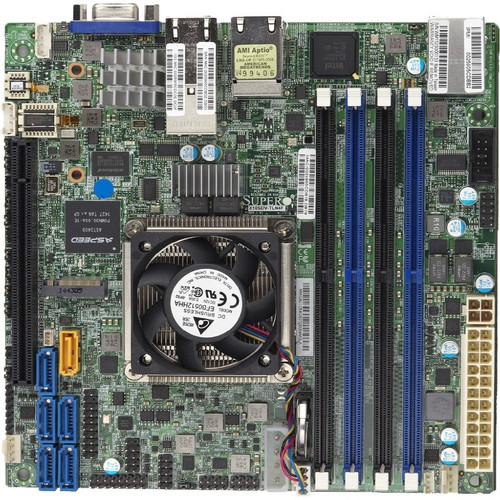

Supermicro Mini ITX Server Motherboard Intel Socket BGA-1667 Integrated Xeon D-1541 Platform Supporting Up To 164 GB DDR4 Memory MBD-X10SDV-8C-TLN4F-O
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SC504-203B
- SC505-203B
Marketing Information: X10SDV Embedded Boards / Xeon D SoC BGA
Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon® System-on a-Chip (SoC) D-1500 Family solutions. The X10SDV series offer infrastructure optimization, by combining the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. With server-class reliability, availability and serviceability (RAS) features now available in an ultra-dense, low-power device, the X10SDV will be able to deliver balanced compute, storage and intelligent edge networks and appliances. These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon® processor D family, with up to 128GB DDR4 ECC RDIMM operating at 2133MHz, USB 3.0 I/O, six SATA3.0 storage and dual 10 GbE LAN networking ports.
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1667
Integrated Processor Type: Xeon
Integrated Processor Model: D-1541
Integrated Processor Speed: 2.10 GHz
Integrated Processor Core: Octa-core (8 Core)
Number of Memory Slots: 4
Memory Form Factor: DIMM,RDIMM,UDIMM
Maximum Memory Supported: 164 GB
Memory Speed Supported: 2133 MHz,1866 MHz,1600 MHz
Memory Standard: DDR4-2133/PC4-17000,DDR4-1866/PC4-14900,DDR4-1600/PC4-12800
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 2
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 4
Form Factor: Mini ITX
Width: 6.70" (170.18 mm)
Depth: 6.70" (170.18 mm)
Compatibility: Supermicro 1U Chassis:
Environmentally Friendly: Yes
Limited Warranty: 3 Year
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X10SDV-8C-TLN4F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X10SDV-8C-TLN4F |
| Product Name | X10SDV-8C-TLN4F |
| Package Type | Retail |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Socket | Socket BGA-1667 |
| Integrated Processor | |
| Integrated Processor Type | Xeon |
| Integrated Processor Model | D-1541 |
| Integrated Processor Speed | 2.10 GHz |
| Integrated Processor Core | Octa-core (8 Core) |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,RDIMM,UDIMM |
| Maximum Memory Supported | 164 GB |
| Memory Speed Supported | 2133 MHz,1866 MHz,1600 MHz |
| Memory Standard | DDR4-2133/PC4-17000,DDR4-1866/PC4-14900,DDR4-1600/PC4-12800 |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2400 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 4 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.70" (170.18 mm) |
| Depth | 6.70" (170.18 mm) |
| Miscellaneous | |
| Compatibility | Supermicro 1U Chassis:
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
