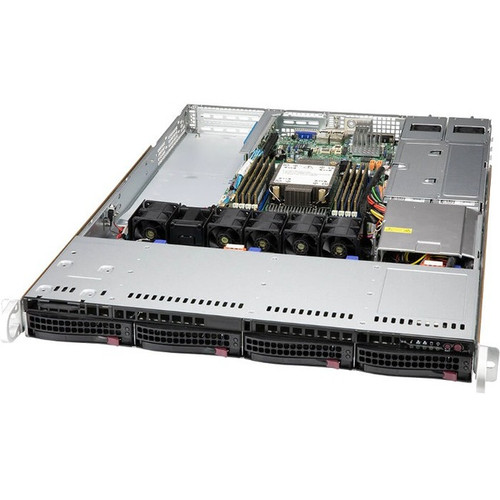

Supermicro SuperServer SYS-510P-WTR Server Barebone System - 1U Rack-mountable - Socket LGA-4189 - 1 x Processor Support - Intel C621A (SYS-510P-WTR)
SKU:
SYS-510P-WTR
UPC:
672042421473
(No reviews)
Write a Review
Write a Review
Supermicro
Supermicro SuperServer SYS-510P-WTR Server Barebone System - 1U Rack-mountable - Socket LGA-4189 - 1 x Processor Support - Intel C621A (SYS-510P-WTR)
MSRP:
$2,801.95
$2,801.95
$2,447.99
Save:
$353.96 (12.63%)
Warranty Information:
1 Year
Condition:
New
Width:
43.70
(cm)
Height:
4.30
(cm)
Depth:
65.00
(cm)
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description
[custom-highlights][/custom-highlights]
- UP SuperServer SYS-510P-WTR
- 1 x Super X12SPW-TF Motherboard
- 1 x 1U Chassis
- 1 x 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
- 1 x MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
- 1 x 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
- 1 x 510P-WT/WTR Quick Reference Guide
- 1 x 1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
- 1 x 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
- 1 x License key for enabling OOB BIOS management
- 1 x 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
- 2 x 500W 1U Redundant PWS W/ 54.5MM Wide
- 2 x 1U Redundant 500W/600W, Platinum efficiency, AC inlet: C14,RoHS
- 1 x WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
- 1 x FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
- 2 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
- 1 x FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
- 1 x Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
- 4 x 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
- 4 x 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
- 1 x 815 UIO front control board (U)
- 1 x Blank LP L-bracket (1 raw of capsule hole)
- 2 x Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
- 4 x Black gen 5.5 hot-swap 3.5" HDD tray
- 1 x WIO rear window for SC113,SC116, SC815 Redundant PWS
- 1 x SC815 Redundant Power Distributor Cover
- 1 x Rail set, quick/quick, optional for 1U 17.2
- 1 x SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
- 2 x Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Number of Processors Supported: 1
Processor Socket: Socket LGA-4189
Processor Supported: Xeon Bronze,Xeon Silver,Xeon Gold,Xeon Platinum
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C621A
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-3200/PC4-25600
Total Number of Memory Slots: 8
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600,12Gb/s SAS
RAID Supported: Yes
Ethernet Technology: 10 Gigabit Ethernet
Number of Total Expansion Bays: 6
Number of 3.5" Bays: 4
Number of PCI Slots: 3
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 9
Number of USB 3.2 Gen 1 Ports: 4
Number of SATA Interfaces: 10
Number of VGA Ports: 1
Plug/Connector Type: C14
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 500 W
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.69" (43 mm)
Width: 17.20" (437 mm)
Depth: 25.59" (650 mm)
Weight (Approximate): 24 lb (10886.22 g)
Package Contents:
Limited Warranty: 1 Year
- Compatible Xeon Bronze processor enables fast and efficient execution of computational tasks
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- Rack-mountable server barebone system maximizes space utilization while providing easy access to essential components
- Connect USB-enabled devices via 9 USB ports for seamless data sharing and reliable performance
- 10 Gigabit Ethernet optimizes network performance, ensuring rapid data transfer for enterprise and high-speed environments
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-510P-WTR |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | SYS-510P-WTR |
| Product Name | UP SuperServer SYS-510P-WTR |
| Packaged Quantity | 1 |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4189 |
| Processor Supported | Xeon Bronze,Xeon Silver,Xeon Gold,Xeon Platinum |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 8 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600,12Gb/s SAS |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Number of 3.5" Bays | 4 |
| Number of PCI Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of SATA Interfaces | 10 |
| Number of VGA Ports | 1 |
| Power Description | |
| Plug/Connector Type | C14 |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.69" (43 mm) |
| Width | 17.20" (437 mm) |
| Depth | 25.59" (650 mm) |
| Weight (Approximate) | 24 lb (10886.22 g) |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 1 Year |
