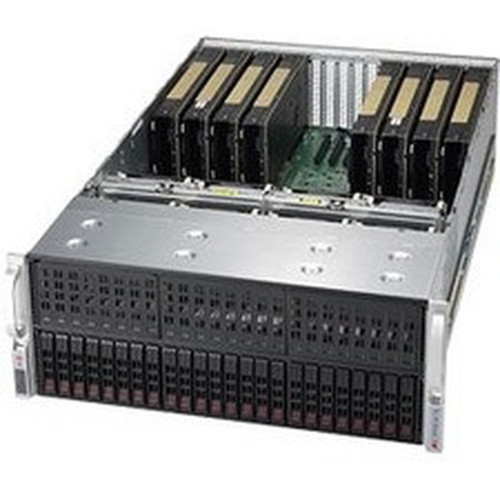

Supermicro SYS-4029GP-TRT2 SuperServer 4029GP-TRT2 Barebone System - 4U Rackmount - Dual Socket P LGA-3647 - Intel C622 Chipset - 24x Memory Slots
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server barebone features a comprehensive storage architecture with Serial ATA/600 controller support and RAID capability, ensuring reliable data protection and performance. The integrated 24-port 2U SAS3 12Gbps hybrid backplane supports up to 20x 2.5-inch SAS3/SATA3 HDD/SSD devices and 4x SAS3/SATA3/NVMe storage devices, providing flexible storage options for mixed workload environments.
Network connectivity is handled by 10 Gigabit Ethernet interfaces, delivering high-speed data transfer for enterprise applications. The system includes four USB 3.0 ports for peripheral connectivity and supports dual-voltage input (120V AC/230V AC) for global deployment flexibility.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SuperServer 4029GP-TRT2 delivers exceptional value through its balanced combination of compute density, expansion flexibility, and enterprise-grade reliability features. The system's 4U form factor optimizes rack space utilization while providing ample room for cooling and component accessibility.
High-Density Compute
Dual processor support with Socket P LGA-3647 sockets enables deployment of high-core-count Xeon processors for virtualization, database, and analytics workloads.
- Supports Xeon Platinum/Gold/Silver/Bronze
- Intel C622 chipset
- 24 memory slots for up to 3 TB
Extensive Expansion
Twelve PCIe x16 slots provide unprecedented expansion capability for GPU accelerators, network adapters, and storage controllers in a single 4U chassis.
- 12 PCIe x16 slots
- 24 total expansion bays
- 10 SATA interfaces
Enterprise Reliability
Four 2000W redundant titanium power supplies with PMbus monitoring ensure continuous operation, while the 92mm high-RPM fans maintain optimal thermal conditions.
- 4x 2000W redundant PSUs
- Active CPU heat sinks
- RoHS/REACH compliant
Deployment / Use Cases
This server barebone system is particularly well-suited for environments requiring high compute density and extensive expansion capabilities. The combination of dual processor support, substantial memory capacity, and multiple PCIe slots makes it ideal for GPU-accelerated computing, virtualization hosts, and high-performance storage arrays.
Enterprise data centers can leverage this platform for private cloud infrastructure, database servers, and big data analytics workloads. Research institutions and academic computing facilities will appreciate the system's ability to accommodate specialized computing cards and storage configurations for scientific computing and simulation applications.
Virtualization Host
With dual processor support and up to 3 TB of memory, this system serves as an excellent foundation for virtualization platforms, supporting numerous virtual machines with demanding resource requirements.
GPU Computing Platform
Twelve PCIe x16 slots enable deployment of multiple GPU accelerators for machine learning, rendering, and computational fluid dynamics applications in a single 4U enclosure.
Physical Profile
The SuperServer 4029GP-TRT2 utilizes a standard 4U rackmount form factor with dimensions of 7" (177.80 mm) height, 17.20" (436.88 mm) width, and 29" (736.60 mm) depth. The black chassis features a professional enterprise aesthetic and includes a 21-slot rear window for cable management and component visibility.
Weighing approximately 80 lb (36,287.39 g), this system is designed for standard 19-inch rack installation with proper rail mounting hardware. The chassis includes eight 92x92x38 mm high-RPM fans with housing for efficient thermal management in dense deployment scenarios.
- Width
- 17.20" (436.88 mm)
- Depth
- 29" (736.60 mm)
- Height
- 4U
- Weight
- 80 lb (36287.39 g)
What's in the Box
This barebone system includes all necessary components for server assembly, excluding processors, memory, storage drives, and operating system.
Highlights
- Dual Socket P LGA-3647 processor support for Intel Xeon Platinum/Gold/Silver/Bronze CPUs
- Intel C622 chipset with support for up to 3 TB of DDR4-2666 memory across 24 DIMM slots
- 12 PCIe x16 expansion slots for GPU accelerators, network adapters, and storage controllers
- 24 total expansion bays with SAS3 12Gbps hybrid backplane supporting mixed storage devices
- 4U rackmount form factor with 4x 2000W redundant titanium power supplies for enterprise reliability
- 10 Gigabit Ethernet connectivity for high-speed network performance in data center environments
- Serial ATA/600 controller with RAID support for data protection and storage performance
- RoHS/REACH environmental compliance with 3-year limited warranty coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-4029GP-TRT2 |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 4029GP-TRT2 |
| Product Name | SuperServer 4029GP-TRT2 (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
| Memory | |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 24 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Total Number of Expansion Slots | 12 |
| Number of PCI Express x16 Slots | 12 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of SATA Interfaces | 10 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 4 |
| Maximum Power Supply Wattage | 2 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 7" (177.80 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 29" (736.60 mm) |
| Weight (Approximate) | 80 lb (36287.39 g) |
| Miscellaneous | |
| Package Contents | SuperServer 4029GP-TRT2 (Black) 1 x Super X11DPG-OT-CPU Motherboard 1 x Super X10DRG-O-PCIE Motherboard 1 x CSE-418GTS-R4000B Chassis 1 x 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices 2 x HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG 8 x GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C 2 x MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG 2 x OcuLink V. 1.0 source to MiniSAS HD,INT,PCIe, 70CM,34AWG,RoH 1 x Black plastic palm cover for X10DRG-O-PCIE 4 x RSC-X9DRG-O 2 x 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform 4 x 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH 8 x 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF 1 x 21 slot rear window for SC418X |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this server barebone system?
The SuperServer 4029GP-TRT2 supports dual Intel Xeon processors using Socket P LGA-3647, including Xeon Platinum, Xeon Gold, Xeon Silver, and Xeon Bronze series. This compatibility provides flexibility for various performance and budget requirements while maintaining enterprise-grade reliability and feature support.
How much memory can this system support and what type is required?
This system supports up to 3 TB of DDR4 SDRAM memory using DDR4-2666/PC4-21300 modules. The motherboard includes 24 memory slots, allowing for substantial memory configurations suitable for virtualization, database, and in-memory computing applications that benefit from large memory capacities.
What expansion capabilities does this 4U server offer?
The SuperServer 4029GP-TRT2 provides extensive expansion with 12 PCIe x16 slots and 24 total expansion bays. This configuration supports multiple GPU accelerators, network interface cards, storage controllers, and specialized computing cards, making it ideal for high-performance computing and storage-intensive applications.
What storage connectivity options are included in this system?
Storage connectivity includes a Serial ATA/600 controller with RAID support and 10 SATA interfaces. The integrated 24-port 2U SAS3 12Gbps hybrid backplane supports up to 20x 2.5-inch SAS3/SATA3 HDD/SSD devices and 4x SAS3/SATA3/NVMe storage devices, providing flexible storage options for mixed workload environments.
What power supply configuration does this server use?
This system includes four 1U 2000W redundant titanium power supplies with PMbus monitoring. The redundant configuration ensures continuous operation in case of power supply failure, while the titanium efficiency rating provides energy savings in data center deployments with high utilization rates.
What is included in the warranty coverage for this product?
The SuperServer 4029GP-TRT2 comes with a 3-year limited warranty from Supermicro. This coverage includes support for manufacturing defects and component failures, providing peace of mind for enterprise deployments where system reliability and vendor support are critical considerations.
