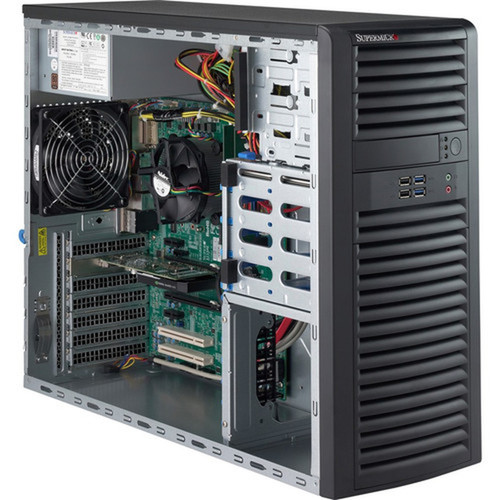

Supermicro SYS-5039A-IL SuperWorkstation Barebone System - Mid-Tower - LGA-1151 Socket - Intel C236 Chip - 64GB DDR4 - 500W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone workstation supports Intel Xeon, Core i3, i5, and i7 processors through its Socket H4 LGA-1151 interface, delivering 64-bit processing performance. The Intel C236 chipset enables advanced storage management with Serial ATA/600 controllers supporting RAID configurations for data redundancy and performance optimization.
Memory architecture utilizes DDR4-2133/PC4-17000 standards across four DIMM slots, reducing processor idle time and improving multitasking efficiency. Expansion capabilities include six total bays (two external 5.25" and four internal 3.5") and six expansion slots (two PCI, two PCIe x4, and two PCIe x16) for graphics cards, network adapters, and other add-in cards.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SYS-5039A-IL combines workstation-grade components in a practical mid-tower form factor, offering professional users a balanced solution between expandability and desktop footprint. Its comprehensive I/O configuration and storage flexibility make it suitable for demanding computational tasks.
Professional-Grade Connectivity
With 16 total USB ports including six USB 3.0 ports and Gigabit Ethernet, this system ensures high-speed data transfer and network connectivity for workstation environments.
- 16 USB ports total
- 6 USB 3.0 for 5Gbps transfer
- Gigabit Ethernet for network tasks
Expansion Flexibility
Six expansion slots and six drive bays provide ample room for storage arrays, graphics cards, and specialized hardware to meet evolving workflow requirements.
- 2 PCIe x16 slots for GPUs
- 4 internal 3.5" bays
- RAID-capable SATA controllers
Deployment / Use Cases
This barebone workstation is ideal for engineering workstations, scientific computing, financial modeling, and content creation environments where single-processor performance meets most requirements. The mid-tower design fits standard office spaces while providing professional expansion capabilities.
Common deployments include CAD/CAM stations, video editing suites, data analysis workstations, and development systems. The support for Intel Xeon processors makes it suitable for entry-level server applications, small business virtualization hosts, and specialized computing clusters where reliability and expandability are priorities.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The black mid-tower chassis measures 16.70" (424.18 mm) in height, 7.60" (193.04 mm) in width, and 20.68" (525.27 mm) in depth, providing a compact footprint for workstation deployments. The 3U-style design offers professional aesthetics while maintaining accessibility for component installation and maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 16.70" (424.18 mm), 7.60" (193.04 mm), 20.68" (525.27 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 7.60" (193.04 mm)
- Depth
- 20.68" (525.27 mm)
- Height
- 16.70" (424.18 mm)
What's in the Box
This barebone system includes all necessary components for workstation assembly:
Highlights
- Supports Intel Xeon, Core i3/i5/i7 processors via LGA-1151 socket
- Intel C236 chipset with Serial ATA/600 controllers and RAID support
- Up to 64GB DDR4-2133 memory across four DIMM slots
- Six expansion slots including PCIe x16 for graphics cards
- Six drive bays (2x 5.25", 4x 3.5") for storage flexibility
- 16 USB ports total with six USB 3.0 for high-speed connectivity
- Gigabit Ethernet for demanding network applications
- 500W power supply with 120V/230V input compatibility
- Black mid-tower chassis with professional 3U design
- Includes complete barebone system with all necessary components
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5039A-IL |
| Brand Name | Supermicro |
| Product Line | SuperWorkstation |
| Product Model | 5039A-IL |
| Product Name | SuperWorkstation SYS-5039A-iL (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Xeon,Core i3,Core i5,Core i7 |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C236 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Total Number of Memory Slots | 4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Number of External 5.25" Bays | 2 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 6 |
| Number of PCI Slots | 2 |
| Number of PCI Express x4 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 16 |
| Number of USB 3.0 Ports | 6 |
| Number of SATA Interfaces | 8 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mid-tower |
| Height | 16.70" (424.18 mm) |
| Width | 7.60" (193.04 mm) |
| Depth | 20.68" (525.27 mm) |
| Miscellaneous | |
| Package Contents | SuperWorkstation SYS-5039A-iL (Black) 1 x Super X11SAE Motherboard 1 x 3U Mid-Tower Chassis 4 x SATA CABLE 57.5CM FLAT S-S PBF. 26AWG flat 1 x SYS-5039A-IL (X11SAE, CSE-732D4-500B), QRG 1 x STD size I/O shield for X10SLQ-L with EMI Gasket,RoHS/REACH,PBF 1 x PS2 ATX 500W MULTI-OUTPUT HI-EFF PWS |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What processors are compatible with this barebone workstation?
The SYS-5039A-IL supports Intel processors using the LGA-1151 socket, including Xeon, Core i3, Core i5, and Core i7 series. This compatibility provides flexibility for both workstation and entry-level server configurations, allowing users to select processors based on performance requirements and budget considerations.
How much memory can this system support?
This barebone workstation supports up to 64GB of DDR4 SDRAM across four memory slots. The system utilizes DDR4-2133/PC4-17000 memory standards, which offer improved bandwidth and power efficiency compared to previous generations, enhancing multitasking performance and overall system responsiveness.
What storage expansion options are available?
The system includes eight SATA interfaces with Serial ATA/600 controllers supporting RAID configurations. It features six total drive bays: two external 5.25" bays for optical drives or front-panel devices, and four internal 3.5" bays for hard drives or SSDs. This configuration supports substantial storage arrays for data-intensive applications.
What expansion slots does this workstation provide?
There are six total expansion slots: two traditional PCI slots, two PCI Express x4 slots, and two PCI Express x16 slots. The PCIe x16 slots support high-performance graphics cards for CAD, rendering, or computational workloads, while the additional slots accommodate network cards, storage controllers, or other expansion hardware.
What connectivity features are included?
Connectivity includes 16 total USB ports with six USB 3.0 ports for 5Gbps data transfer, Gigabit Ethernet for network connectivity, and eight SATA interfaces for storage devices. The comprehensive I/O configuration supports multiple peripherals, external storage, and network-dependent applications common in workstation environments.
What power supply is included with this system?
The system includes a 500W power supply that supports both 120V and 230V input voltages. This power capacity accommodates single-processor configurations with multiple storage drives, expansion cards, and memory modules, providing stable power delivery for professional workstation applications.
