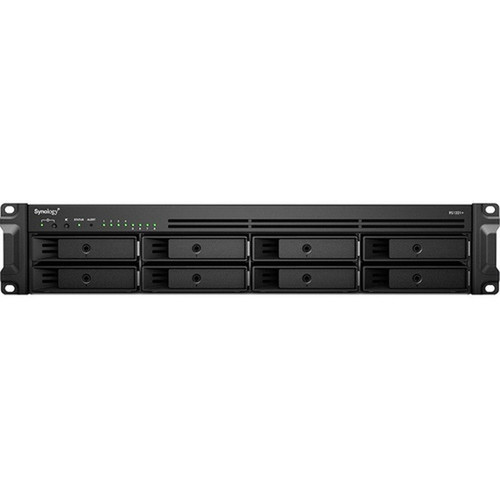

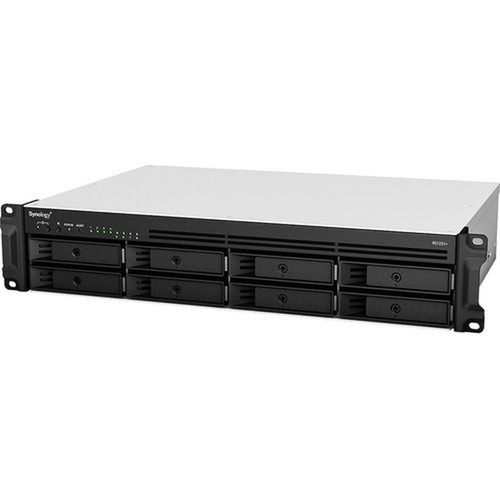

Synology RS1221RP+ RackStation SAN/NAS Storage System - 8-Bay - AMD Ryzen V1500B Quad-core 2.20 GHz - 4 GB DDR4 - 4x Gigabit Ethernet - 2U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the RS1221RP+ is an AMD Ryzen V1500B quad-core processor running at 2.20 GHz, providing efficient processing power for storage operations, data protection tasks, and application hosting. The system includes 4 GB of DDR4 SDRAM as standard memory, supporting smooth operation of the DiskStation Manager operating system and hosted services.
Storage management is handled through a Serial ATA controller with comprehensive RAID support including levels 0, 1, 5, 6, 10, Basic, Hybrid RAID, and JBOD configurations. This flexibility allows organizations to balance performance, capacity, and data protection according to their specific requirements.
Relevant factors for this section include Number of Hard Drives Supported, Number of Hard Drives Installed, Number of Solid State Drive Supported, Processor Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The RS1221RP+ combines enterprise storage features with Synology's intuitive DiskStation Manager platform, creating a versatile storage solution that simplifies deployment and management while maintaining professional-grade capabilities.
High-Density Storage
Eight drive bays in a 2U form factor maximize storage capacity within standard rack space, supporting both HDD and SSD media for performance-optimized configurations.
- 8x 2.5"/3.5" bays
- SATA interface
- Mixed drive support
Enterprise Connectivity
Four Gigabit Ethernet ports provide network redundancy and aggregated bandwidth options, while USB 3.2 Gen 1 ports and eSATA support additional peripheral connections.
- 4x RJ-45 ports
- 2x USB 3.2 Gen 1
- eSATA available
Professional Management
DiskStation Manager offers comprehensive protocol support including CIFS, NFS, iSCSI, and SMB 3.0, along with management protocols like SNMP and LDAP for integration into existing infrastructure.
- Multiple file protocols
- iSCSI SAN support
- Enterprise management
Deployment / Use Cases
The RS1221RP+ serves as a centralized storage platform for small to medium businesses requiring reliable network-attached storage with the scalability to grow with organizational needs. Its rack-mountable design makes it particularly suitable for IT closets, server rooms, and data center environments where space optimization is important.
Common deployment scenarios include departmental file servers, backup target storage for enterprise backup software, virtualization storage for hypervisors, and media storage for creative workflows. The system's protocol support enables seamless integration with Windows, macOS, and Linux environments while providing block-level storage through iSCSI for database and application servers.
Business File Services
Centralized storage for departmental shares, user home directories, and collaborative workspaces with granular permissions and access controls.
Backup and Archive
Dedicated storage target for backup software with RAID protection for data integrity and multiple network interfaces for backup throughput.
Localization and Operating System
The Synology RS1221RP+ runs the DiskStation Manager (DSM) operating system, Synology's comprehensive storage management platform designed for business environments. DSM provides a web-based interface that simplifies storage administration, file sharing, backup management, and application deployment without requiring specialized storage expertise.
This storage system supports a wide range of file access protocols including CIFS, NFS, SMB 3.0, AFP, and FTP, enabling seamless integration with Windows, macOS, Linux, and Unix client environments. For block-level storage requirements, DSM includes iSCSI target support that allows the RS1221RP+ to function as a SAN storage device for virtualization platforms, database servers, and other applications requiring direct storage access.
Management protocols including SNMP, LDAP, and HTTPS provide enterprise-grade monitoring and integration capabilities. The system's extensive protocol support makes it suitable for mixed-OS environments where diverse client systems need simultaneous access to shared storage resources.
Protocol Support
Comprehensive file and management protocol support ensures compatibility with diverse IT environments and simplifies integration into existing infrastructure.
- CIFS, NFS, SMB 3.0 for file sharing
- iSCSI for block-level SAN storage
- SNMP and LDAP for enterprise management
Physical Profile
Designed for standard 19-inch racks, the RS1221RP+ occupies 2U of vertical space with dimensions of 3.46" (88 mm) height, 18.98" (482 mm) width, and 12.07" (306.60 mm) depth. The 15.21 lb (6900 g) weight reflects a robust construction suitable for data center environments. The system includes a single 250W power supply with C13/C14 connector compatibility for standard data center power distribution.
- Width
- 18.98" (482 mm)
- Depth
- 12.07" (306.60 mm)
- Height
- 3.46" (88 mm)
- Weight
- 15.21 lb (6900 g)
Highlights
- 8-bay storage system supporting both HDD and SSD drives
- AMD Ryzen V1500B quad-core processor at 2.20 GHz
- 4 GB DDR4 SDRAM standard memory
- 4x Gigabit Ethernet ports for network connectivity
- Comprehensive RAID support including 0, 1, 5, 6, 10, and Hybrid RAID
- DiskStation Manager operating system with extensive protocol support
- 2U rack-mountable form factor for data center deployment
- PCI Express 3.0 x8 expansion slot for additional capabilities
- USB 3.2 Gen 1 and eSATA ports for peripheral connectivity
- Single 250W power supply with C13/C14 connector
Specifications
| Specifications | |
|---|---|
| Manufacturer | Synology, Inc |
| Manufacturer Part Number | RS1221RP+ |
| Brand Name | Synology |
| Product Line | RackStation |
| Product Model | RS1221RP+ |
| Product Name | RS1221RP+ SAN/NAS Storage System |
| Packaged Quantity | 1 |
| Product Type | SAN/NAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 8 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 8 |
| Number of Solid State Drive Installed | 0 |
| Processor & Chipset | |
| Processor Manufacturer | AMD |
| Processor Type | Ryzen |
| Processor Model | V1500B |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.20 GHz |
| Memory | |
| Standard Memory | 4 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 2.5"/3.5" Bays | 8 |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Controllers | |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, Basic, Hybrid RAID, JBOD |
| Interfaces/Ports | |
| Drive Interface | Serial ATA |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| eSATA | Yes |
| Software | |
| Operating System | DiskStation Manager |
| Management & Protocols | |
| Protocols | CIFS,AFP,NFS,FTP,WEBDAV,SMB 1.0,SMB 2.0,SMB 3.0,NFSv3,NFSv4,NFSv4.1,iSCSI,HTTP,HTTPS,SNMP,LDAP,CalDAV,DLNA |
| Power Description | |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 250 W |
| Physical Characteristics | |
| Height | 3.46" (88 mm) |
| Width | 18.98" (482 mm) |
| Depth | 12.07" (306.60 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Weight (Approximate) | 15.21 lb (6900 g) |
| Miscellaneous | |
| Country of Origin | Taiwan |
User Manual
FAQ
What processor does this product use?
This product uses the AMD processor for everyday performance and multitasking.
How much memory is installed?
It includes 4 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 0 of storage for applications, files, and everyday business data.
What graphics or display support is listed?
Display-related specifications help position Synology RS1221RP+ SAN/NAS Storage System - AMD Ryzen V1500B Quad-core (4 Core) 2.20 GHz - 8 x HDD Supported - 0 x HDD Installed - 8 x (RS1221RP+) for the kind of viewing experience, readability, and workspace fit buyers may expect in business it/storage arrays & nas/nas storage system deployments.
What connectivity options are available?
Connectivity options include Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is DiskStation Manager, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
