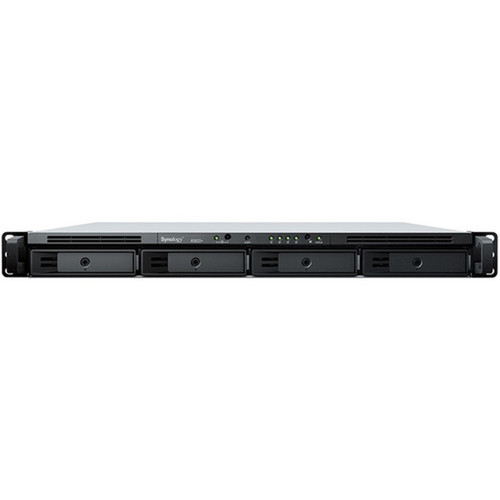

Synology RS822+ RackStation SAN/NAS Storage System - 4-Bay 1U Rackmount - AMD Ryzen V1500B Quad-core 2.20 GHz - 2 GB DDR4 - 4x Gigabit Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the RS822+ is an AMD Ryzen V1500B quad-core processor running at 2.20 GHz, providing sufficient computational power for file-serving operations, data protection tasks, and running Synology's extensive application ecosystem. The system includes 2 GB of DDR4 SDRAM as standard memory, supporting efficient multitasking and caching operations for improved storage performance.
Storage management is handled through a Serial ATA controller with comprehensive RAID support including levels 0, 1, 5, 6, 10, Basic, Hybrid RAID, and JBOD configurations. This flexibility allows organizations to implement the appropriate balance of performance, capacity, and data protection based on their specific requirements and risk tolerance.
Relevant factors for this section include Number of Hard Drives Supported, Number of Hard Drives Installed, Number of Solid State Drive Supported, Number of Processors Installed. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The RS822+ delivers several distinct advantages for business storage deployments, starting with its space-efficient 1U rackmount design that maximizes storage density within standard server cabinets. The four drive bays provide substantial storage capacity while maintaining a compact footprint, making this system ideal for environments where rack space is at a premium.
Comprehensive RAID Support
With support for multiple RAID levels including 5, 6, and 10, organizations can implement robust data protection strategies that balance performance, capacity utilization, and fault tolerance according to their specific requirements.
- Data redundancy options
- Performance optimization choices
- Flexible storage configurations
Enterprise Connectivity
Four Gigabit Ethernet ports enable link aggregation and network redundancy configurations, while two USB 3.2 Gen 1 ports provide convenient connectivity for peripheral devices and backup storage.
- Network load balancing
- Connection redundancy
- High-speed peripheral support
Expansion Capability
The PCI Express expansion slot allows for future hardware enhancements, providing organizations with a path to add specialized networking cards, additional connectivity options, or performance accelerators as needs evolve.
- Future-proof design
- Hardware customization
- Performance scalability
Deployment / Use Cases
The Synology RS822+ is well-suited for several business storage scenarios where reliable file services, data protection, and space efficiency are primary considerations. Its compact 1U form factor makes it particularly valuable in colocation facilities, branch offices, and small to medium-sized data centers where rack space optimization is critical.
Common deployment scenarios include departmental file servers, backup target storage, virtual machine datastores for smaller virtualization environments, and centralized storage for collaborative workgroups. The system's comprehensive protocol support—including SMB, NFS, iSCSI, FTP, and HTTP/HTTPS—ensures compatibility with diverse client environments ranging from Windows and macOS workstations to Linux servers and virtualization platforms.
Branch Office Storage
Provide reliable file services and data protection for remote offices with limited IT staff, leveraging Synology's intuitive management interface and comprehensive monitoring capabilities.
- Remote management
- Automated alerts
- Centralized administration
Virtualization Support
Serve as shared storage for hypervisor platforms using iSCSI or NFS protocols, enabling features like vMotion, High Availability, and centralized VM management in smaller virtualized environments.
- iSCSI target support
- NFS compatibility
- VM performance optimization
Localization and Operating System
The Synology RS822+ operates on DiskStation Manager (DSM), Synology's proprietary operating system designed specifically for network-attached storage. DSM provides a comprehensive, web-based management interface that simplifies storage administration, file sharing, data protection, and application deployment without requiring specialized storage expertise. The operating system supports a wide range of file-sharing protocols including SMB, NFS, AFP, FTP, and WebDAV, ensuring compatibility with diverse client environments across Windows, macOS, Linux, and Unix platforms.
For business environments requiring block-level storage, DSM includes iSCSI target support with LUN management capabilities, enabling the RS822+ to serve as shared storage for virtualization platforms like VMware vSphere, Microsoft Hyper-V, and Citrix XenServer. The operating system also supports advanced features such as snapshot replication, backup synchronization, and cloud integration, providing organizations with flexible data protection and disaster recovery options. DSM's extensive application ecosystem includes packages for media serving, surveillance recording, collaboration tools, and development environments, allowing the storage system to serve multiple roles beyond basic file services.
While the RS822+ does not include specific regional keyboard or language localization hardware, DSM itself offers multilingual interface support with over 20 language options, making the management environment accessible to international IT teams. The operating system's intuitive graphical interface reduces training requirements and enables efficient administration through role-based access controls, comprehensive monitoring dashboards, and automated alerting systems that notify administrators of potential issues before they impact operations.
Protocol Compatibility
DSM supports industry-standard file-sharing protocols including SMB 1.0 through 3.0, NFSv3 and NFSv4, AFP for legacy macOS environments, FTP with secure variants, and WebDAV for web-based access. This broad protocol support ensures seamless integration with heterogeneous IT environments.
- Cross-platform file sharing
- Legacy system compatibility
- Secure access options
Management Interface
The web-based DSM interface provides centralized management of storage resources, user accounts, shared folders, and security settings through an intuitive dashboard. Real-time monitoring tools track system health, performance metrics, and resource utilization.
- Centralized administration
- Real-time monitoring
- Role-based access control
Physical Profile
Designed for standard 19-inch server racks, the RS822+ occupies just 1U of vertical space with dimensions of 1.73 inches (44 mm) in height, 18.90 inches (480 mm) in width, and 19.39 inches (492.60 mm) in depth. The compact design allows for high-density deployments while maintaining adequate airflow for cooling. Weighing approximately 14.11 pounds (6400 grams), the system is manageable for single-person installation in most rack environments. The front-accessible drive bays simplify drive installation and maintenance without requiring complete system removal from the rack.
- Width
- 18.90" (480 mm)
- Depth
- 19.39" (492.60 mm)
- Height
- 1.73" (44 mm)
- Weight
- 14.11 lb (6400 g)
Highlights
- Four drive bays supporting both 2.5" and 3.5" hard drives or solid-state drives
- AMD Ryzen V1500B quad-core processor at 2.20 GHz for efficient storage operations
- 2 GB DDR4 SDRAM standard memory for caching and multitasking performance
- Four Gigabit Ethernet ports supporting link aggregation and network redundancy
- Comprehensive RAID support including levels 0, 1, 5, 6, 10, Basic, Hybrid RAID, and JBOD
- 1U rackmount form factor for space-efficient deployment in standard server cabinets
- DiskStation Manager operating system with extensive protocol and application support
- PCI Express expansion slot for future hardware enhancements and customization
- Two USB 3.2 Gen 1 ports for peripheral connectivity and backup storage
- Serial ATA controller interface for reliable storage connectivity and management
Specifications
| Specifications | |
|---|---|
| Manufacturer | Synology, Inc |
| Manufacturer Part Number | RS822+ |
| Brand Name | Synology |
| Product Line | RackStation |
| Product Model | RS822+ |
| Product Name | RackStation RS822+ SAN/NAS Storage System |
| Packaged Quantity | 1 |
| Product Type | SAN/NAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 4 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 4 |
| Number of Solid State Drive Installed | 0 |
| Processor & Chipset | |
| Number of Processors Installed | 1 |
| Processor Manufacturer | AMD |
| Processor Type | Ryzen |
| Processor Model | V1500B |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.20 GHz |
| Memory | |
| Standard Memory | 2 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 2.5"/3.5" Bays | 4 |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express |
| Controllers | |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, Basic, Hybrid RAID, JBOD |
| Interfaces/Ports | |
| Drive Interface | Serial ATA |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Software | |
| Operating System | DiskStation Manager |
| Management & Protocols | |
| Protocols | SMB,FTP,NFS,WEBDAV,AFP,NFSv4.1,CalDAV,HTTPS,LDAP,SMB 1.0,CIFS,SNMP,iSCSI,SMB 3.0,SMB 2.0,HTTP,NFSv4,NFSv3,Kerberos,SFTP |
| Power Description | |
| Maximum Power Supply Wattage | 150 W |
| Physical Characteristics | |
| Height | 1.73" (44 mm) |
| Width | 18.90" (480 mm) |
| Depth | 19.39" (492.60 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Weight (Approximate) | 14.11 lb (6400 g) |
User Manual
FAQ
What processor does this product use?
This product uses the 1 processor for everyday performance and multitasking.
How much memory is installed?
It includes 2 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 0 of storage for applications, files, and everyday business data.
What graphics or display support is listed?
Display-related specifications help position Synology RackStation RS822+ SAN/NAS Storage System - 1 x AMD Ryzen V1500B Quad-core (4 Core) 2.20 GHz - 4 x HDD Supported - 0 x HDD - (RS822+) for the kind of viewing experience, readability, and workspace fit buyers may expect in business it/storage arrays & nas/nas storage system deployments.
What connectivity options are available?
Connectivity options include Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is DiskStation Manager, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
