Product Features
Technical Overview
This Wi-Fi 7 Bluetooth 5.4 PCIe adapter operates across three simultaneous frequency bands, utilizing the 6 GHz UNII band to double available bandwidth compared to previous Wi-Fi generations. The adapter achieves a maximum theoretical wireless transmission speed of 6.30 Gbit/s, distributed across 2882 Mbps on the 6 GHz band, 2882 Mbps on the 5 GHz band, and 688 Mbps on the 2.4 GHz ISM band.
The PCI Express host interface provides direct motherboard connectivity for optimal performance, while the low-profile card design measures 3.09 inches in height, 0.85 inches in width, and 4.80 inches in depth. Two high-gain antennas extend wireless coverage and improve signal strength, supporting OFDMA and MU-MIMO technologies that reduce network congestion and latency.
Relevant factors for this section include Wi-Fi Generation, Wireless LAN Standard, Bluetooth Standard, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This adapter delivers significant advantages for users requiring high-speed, reliable wireless connectivity for demanding applications. The combination of Wi-Fi 7 and Bluetooth 5.4 technologies provides both cutting-edge wireless networking and enhanced peripheral connectivity in a single expansion solution.
Enhanced Security
WPA3 security protocol protects network transmissions against unauthorized access, ensuring data privacy across wireless connections.
- Latest WPA3 encryption
- Secure wireless transmission
- Protection against hacking attempts
Reduced Network Latency
OFDMA and MU-MIMO technologies minimize lag on busy networks, supporting real-time applications like gaming and VR experiences.
- OFDMA efficiency
- MU-MIMO simultaneous connections
- Optimized for real-time applications
Extended Coverage
Two high-performance antennas significantly boost signal range and strength, providing stable connections from greater distances.
- High-gain antennas
- Extended Wi-Fi coverage
- Improved signal penetration
Deployment / Use Cases
The ARCHER TBE400E adapter is ideal for desktop computers requiring upgraded wireless capabilities without sacrificing performance. Its PCI Express interface ensures full bandwidth utilization for applications that demand maximum wireless throughput and minimal latency.
Primary deployment scenarios include gaming PCs where low-latency connections are critical for competitive gameplay, workstations handling large file transfers over wireless networks, and media centers streaming high-bitrate 4K/8K content. The adapter also serves well in environments where running Ethernet cables is impractical, providing enterprise-grade wireless performance to standard desktop systems.
Gaming & VR Systems
Delivers the low latency and high bandwidth required for immersive virtual reality experiences and competitive online gaming.
Content Creation Workstations
Enables fast wireless transfer of large media files between workstations and network storage solutions.
Physical Profile

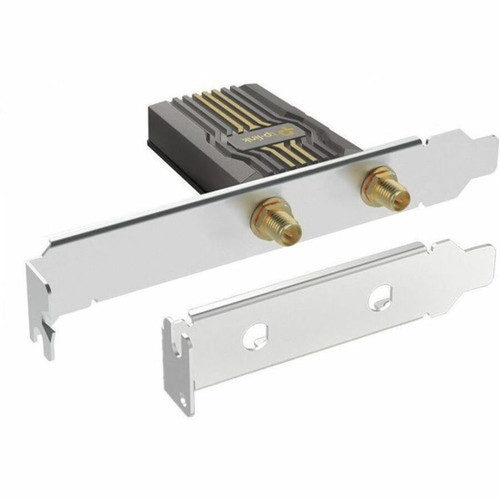

The low-profile plug-in card design measures 3.09 inches in height, 0.85 inches in width, and 4.80 inches in depth, making it compatible with both standard and compact computer cases. The adapter includes both standard and low-profile mounting brackets, providing installation flexibility for various chassis configurations.
The compact form factor ensures minimal space consumption within the computer case while maintaining optimal antenna positioning for signal reception. The card's dimensions allow installation in most desktop systems with available PCI Express slots, regardless of case size constraints.
- Width
- 0.85" (21.59 mm)
- Depth
- 4.80" (121.92 mm)
- Height
- Low-profile
What's in the Box
The package includes all necessary components for immediate installation and operation of the Wi-Fi 7 Bluetooth 5.4 PCIe adapter.
Highlights
- Wi-Fi 7 technology with tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz frequencies
- Bluetooth 5.4 for improved security and reliability over previous Bluetooth versions
- Maximum wireless transmission speed of 6.30 Gbit/s for high-bandwidth applications
- PCI Express host interface for direct motherboard connectivity and optimal performance
- Low-profile card design with included bracket for compatibility with compact computer cases
- Two high-gain antennas for extended wireless coverage and improved signal strength
- WPA3 security protocol for enhanced protection against unauthorized network access
- OFDMA and MU-MIMO technologies to reduce latency on congested networks
- Exclusive Windows 11 64-bit operating system support
- Complete installation package with all necessary cables, brackets, and documentation
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | ARCHER TBE400E |
| Brand Name | TP-Link |
| Product Line | Archer |
| Product Model | TBE400E |
| Product Name | BE6500 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter |
| Product Type | Wi-Fi/Bluetooth Combo Adapter |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 7 |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| Bluetooth Standard | Bluetooth 5.4 |
| Network Band | Tri Band |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 6 GHz |
| Wireless Transmission Speed | 6.30 Gbit/s |
| Interfaces/Ports | |
| Host Interface | PCI Express |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Height | 3.09" (78.49 mm) |
| Width | 0.85" (21.59 mm) |
| Depth | 4.80" (121.92 mm) |
| Miscellaneous | |
| Package Contents | BE6500 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter 2x High-Performance Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| Device Supported | Computer |
User Manual
FAQ
What wireless standards does the ARCHER TBE400E adapter support?
The adapter supports the complete IEEE 802.11a/b/g/n/ac/ax/be wireless standard suite, commonly referred to as Wi-Fi 7. This includes backward compatibility with all previous Wi-Fi generations while adding support for the new 6 GHz band and enhanced features like 320 MHz channel bandwidth and 4K QAM modulation for maximum performance.
What is the maximum wireless speed this adapter can achieve?
The ARCHER TBE400E delivers a maximum theoretical wireless transmission speed of 6.30 Gbit/s across its three frequency bands. This breaks down to 2882 Mbps on the 6 GHz band, 2882 Mbps on the 5 GHz band, and 688 Mbps on the 2.4 GHz band. Actual speeds will vary based on network conditions, router capabilities, and environmental factors.
Which operating systems are compatible with this Wi-Fi 7 adapter?
This adapter is designed exclusively for Windows 11 64-bit operating systems. It includes optimized drivers and configuration tools specifically for Windows 11, ensuring full compatibility with the operating system's network management features and security protocols. The adapter does not support macOS, Linux, or earlier versions of Windows.
What type of computer case is required for installation?
The adapter includes both standard and low-profile mounting brackets, making it compatible with virtually any desktop computer case that has an available PCI Express slot. The low-profile card design measures 3.09 inches in height, allowing installation in compact cases, while the standard bracket accommodates full-size tower configurations.
How does Bluetooth 5.4 improve upon previous Bluetooth versions?
Bluetooth 5.4 offers enhanced security features and improved reliability compared to Bluetooth 5.3 and earlier versions. Key improvements include better encryption protocols, more stable connections with reduced interference, and optimized power efficiency for connected devices. This ensures more secure and consistent performance for Bluetooth peripherals like headphones, keyboards, and mice.
What security features protect wireless connections with this adapter?
The adapter implements WPA3, the latest Wi-Fi security protocol, which provides stronger encryption and protection against brute-force attacks compared to WPA2. Additional security measures include support for the latest wireless encryption standards and secure boot capabilities that prevent unauthorized firmware modifications, ensuring end-to-end protection for data transmitted over wireless networks.
