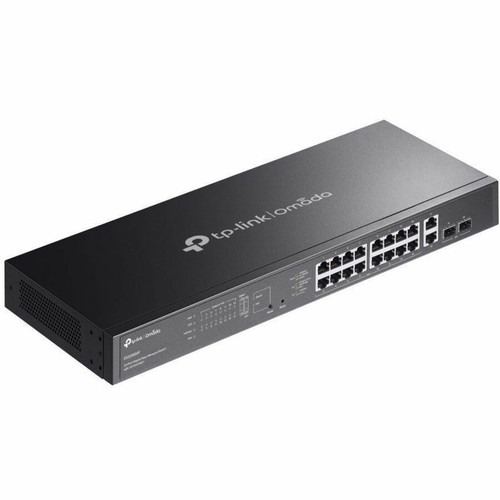

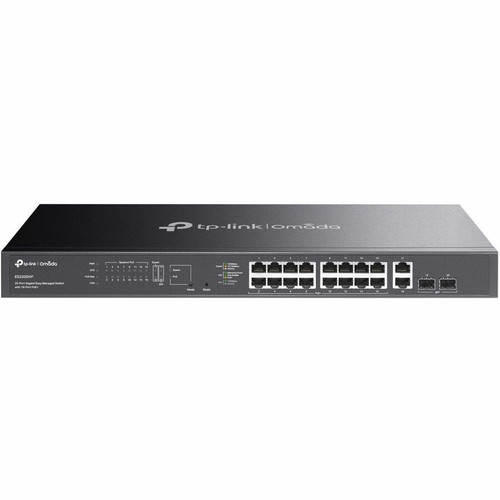

TP-LINK ES220GMP Omada 20-Port Gigabit Easy Managed Switch - 16 PoE+ Ports - 250W Budget - 2 SFP Slots - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This managed switch offers 18 Gigabit Ethernet ports in total, with 16 of those ports providing IEEE 802.3at/af PoE+ support and a generous 250-watt power budget. The remaining two RJ-45 ports are dedicated Gigabit network ports, complemented by two SFP slots for high-speed fiber or copper uplink connections, enabling flexible network expansion and backbone linking.
It operates as a full Layer 2 managed switch, supporting key networking standards including IEEE 802.1Q for VLANs, IEEE 802.1p for Quality of Service (QoS), and IEEE 802.3x for flow control. The switch supports both twisted pair and optical fiber media, with network technology covering 10/100/1000Base-T and 1000Base-X for versatile deployment. Management is facilitated through remote and cloud-based platforms, featuring zero-touch provisioning for rapid deployment.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ES220GMP stands out by delivering high PoE density and managed features in a cost-effective, easy-to-deploy package. Its integration into the Omada SDN platform allows for unified management of switches, wireless APs, and gateways from a single interface, significantly reducing operational overhead for IT teams.
High-Density PoE+ Ready
With 16 PoE+ ports and a 250W budget, this switch can power a large array of devices simultaneously, eliminating the need for separate power injectors and simplifying cable runs.
- Powers IP phones, cameras, and access points
- Reduces installation complexity and cost
Professional Rack Deployment
The 1U, all-metal construction is designed for durability in rack environments. Its compact dimensions (1.73" H x 17.32" W x 7.09" D) fit standard 19-inch racks, promoting organized cable management.
- Robust metal and steel build
- Standard 19-inch rack compatibility
Enhanced Network Control
Layer 2 management capabilities provide essential tools for network optimization and security, including VLANs for segmentation, QoS for prioritizing critical traffic, and comprehensive monitoring.
- Improves network performance and security
- Enables traffic prioritization and monitoring
Deployment / Use Cases
This switch is engineered for small to medium business networks, branch offices, and retail environments where reliable, managed connectivity and device power are paramount. Its PoE capabilities make it particularly suited for deployments featuring unified communications and surveillance systems.
Ideal use cases include powering a cluster of Omada Wi-Fi 6 access points to create a seamless wireless network, connecting a full suite of VoIP phones in an office, or supporting a multi-camera IP surveillance system. The SFP uplinks allow for connecting to a core switch or router over fiber for longer distances or higher bandwidth needs, making it a versatile aggregation switch for edge networking.
Unified Business Communications
Deploy as the network backbone for offices using VoIP systems and wireless connectivity, providing both data and power over a single cable to desk phones and access points.
IP Surveillance & Security
Serve as the central switch for security camera networks, delivering power and high-bandwidth video data streams to multiple cameras while enabling VLAN isolation for the security network.
Physical Profile
The switch is housed in a durable chassis constructed from metal and steel, ensuring longevity in rack-mounted deployments. It occupies a single rack unit (1U) with dimensions of 1.73 inches in height, 17.32 inches in width, and 7.09 inches in depth, conforming to standard 19-inch rack widths. The fanless design not only contributes to silent operation but also reduces points of failure, making it suitable for noise-sensitive environments like offices or classrooms. The design prioritizes efficient heat dissipation through its metal casing.
- Width
- 17.32" (440 mm)
- Depth
- 7.09" (180 mm)
- Height
- 1.73" (44 mm)
Highlights
- 20-port Gigabit managed switch with 16 PoE+ ports for device power and data.
- Substantial 250-watt PoE budget to support multiple high-power devices simultaneously.
- Includes 2 SFP slots for fiber or copper uplink expansion and network backbone connections.
- Full Layer 2 management with support for VLANs, QoS, and IEEE networking standards.
- Fanless, silent operation ideal for office and retail environments.
- 1U rack-mountable form factor with durable metal construction for professional installation.
- Omada SDN compatible for centralized cloud management and zero-touch provisioning.
- Supports both twisted pair and optical fiber media for flexible cabling options.
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | ES220GMP |
| Brand Name | Omada |
| Product Model | ES220GMP |
| Product Name | Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless,Plug and Play,Remote/Cloud Management,Zero-Touch Provisioning (ZTP),Intelligent monitoring |
| Interfaces/Ports | |
| Total Number of Network Ports | 18 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.3af,IEEE 802.3at |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 250 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Power Consumption | 289.70 W |
| Physical Characteristics | |
| Product Material | Metal,Steel |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 7.09" (180 mm) |
FAQ
How many devices can this switch power using PoE?
The switch has 16 ports that provide Power over Ethernet Plus (PoE+), compliant with IEEE 802.3at/af standards. With a total PoE budget of 250 watts, it can power a combination of devices like IP phones, wireless access points, or security cameras. The exact number depends on the individual power draw of each connected device, but the 250W budget offers substantial capacity for typical business deployments.
What are the SFP slots used for on this switch?
The two SFP (Small Form-factor Pluggable) slots are expansion ports used for uplink connections. You can insert SFP modules to connect the switch to other network equipment using fiber optic cables for long-distance runs or shielded copper cables for shorter high-speed links. This provides flexibility for connecting to a core switch, router, or another network segment, enhancing the switch's backbone connectivity options.
Is this a managed or unmanaged switch?
This is a fully managed Layer 2 switch. It offers advanced management features including VLAN configuration for network segmentation, Quality of Service (QoS) for traffic prioritization, and support for protocols like IEEE 802.1Q and 802.1p. It can be managed remotely and is compatible with the TP-Link Omada Software-Defined Networking (SDN) platform for centralized cloud-based control across multiple devices.
What does 'Layer 2 support' mean for this switch?
Layer 2 support refers to the data link layer of the network, which handles switching and frame forwarding based on MAC addresses. This switch operates at Layer 2, providing features like VLANs to isolate network traffic, Spanning Tree Protocol (STP) for loop prevention, and link aggregation. These capabilities offer greater control over network traffic, improved security through segmentation, and more efficient bandwidth usage compared to basic unmanaged switches.
Can this switch be mounted in a standard server rack?
Yes, the switch is designed for standard 19-inch wide server racks. It has a 1U form factor, meaning it occupies one rack unit of vertical space (approximately 1.75 inches). The dimensions are 1.73" H x 17.32" W x 7.09" D, and it includes the necessary mounting hardware for secure installation. Its all-metal construction ensures durability in rack environments.
What is the power consumption of this switch?
The switch has a typical power consumption of 289.70 watts. This figure accounts for the switch's own operational power plus the power delivered to connected PoE devices up to its 250-watt PoE budget. It uses a built-in power supply and accepts input voltages of 120V AC or 230V AC, making it suitable for use in different regional electrical systems.
