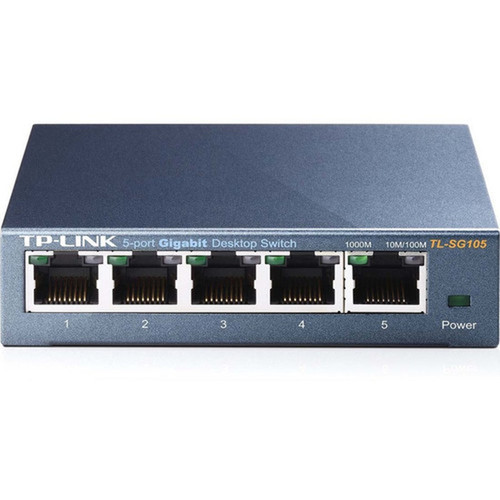

TP-LINK TL-SG105 5-Port Gigabit Desktop Switch - Layer 2 - Fanless - Metal Case - 10/100/1000Base-T
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The TP-LINK TL-SG105 is a compact 5-port Gigabit desktop switch designed to expand your network with reliable, high-speed connectivity. This unmanaged switch delivers straightforward plug-and-play operation, making it ideal for small offices, home offices, or any environment where simple network expansion is needed without complex configuration.
Built with a durable steel casing, the TL-SG105 offers a fanless design for silent operation and supports desktop or wall-mount placement. Its energy-efficient technology minimizes power draw while providing full Gigabit throughput across all five ports, ensuring your network capacity grows without unnecessary energy costs or noise disruption.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This Layer 2 switch supports Gigabit Ethernet over twisted pair cabling, with auto-negotiation and auto MDI/MDIX on all five RJ-45 ports for hassle-free connections. It complies with key networking standards including IEEE 802.3i, 802.3u, 802.3ab, 802.3x, and 802.1p, ensuring reliable data transfer with flow control and basic traffic prioritization capabilities.
Despite its compact footprint, the switch incorporates advanced software features like port-based 802.1p/DSCP QoS and IGMP snooping to help prioritize video or voice traffic when needed. The unmanaged design means no software installation or configuration is required—simply connect your devices and the switch handles the rest automatically.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TL-SG105 combines reliability, simplicity, and energy efficiency in a desktop-friendly form factor. Its metal construction and fanless operation ensure durable, quiet performance in everyday environments, while the plug-and-play setup eliminates IT overhead for quick deployment.
Silent Operation
The fanless design means zero noise, making this switch suitable for quiet workspaces, media rooms, or any location where operational silence is preferred.
- No moving parts
- Ideal for noise-sensitive areas
Energy Efficient
With a power consumption of just 2.30 watts, this switch uses innovative energy-saving technology to reduce electricity costs while maintaining full Gigabit performance.
- Low power draw
- Cost-effective operation
Durable Build
The steel case provides robust protection and heat dissipation, supporting reliable long-term operation in various environmental conditions.
- Metal housing
- Enhanced durability
Deployment / Use Cases
This switch is perfectly suited for small-scale network expansions where simplicity and reliability are paramount. Its desktop form factor and unmanaged operation make it an excellent choice for environments that need additional Ethernet ports without the complexity of managed switching.
Common deployment scenarios include adding ports behind a router in a home office, connecting multiple devices in a small business workgroup, or extending network access in a classroom or retail setting. The wall-mount capability also allows for clean installation in space-constrained areas like network closets or behind entertainment centers.
Home Office Expansion
Connect computers, printers, NAS devices, and gaming consoles with Gigabit speeds for seamless file sharing and media streaming.
- Plug-and-play setup
- Supports multiple devices
Small Business Connectivity
Provide additional ports for workstations, VoIP phones, or point-of-sale systems in retail or professional office environments.
- Reliable data transfer
- Basic traffic prioritization
Physical Profile
Measuring 3.90" wide by 3.90" deep by 1" high (99.06 mm x 99.06 mm x 25.40 mm), the TL-SG105 has a compact, square footprint that fits easily on desktops, shelves, or mounted vertically. The steel casing not only protects internal components but also aids in passive cooling, eliminating the need for noisy fans. The switch includes keyhole slots for wall mounting, offering flexible placement options to keep workspaces organized.
- Width
- 3.90" (99.06 mm)
- Depth
- 3.90" (99.06 mm)
- Height
- 1" (25.40 mm)
What's in the Box
The package includes everything needed for immediate setup and operation.
Package contents include 5-Port 10/100/1000Mbps Desktop Switch Power Adapter User Guide, 5-Port 10/100/1000Mbps Desktop Switch. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5 Gigabit Ethernet ports with auto-negotiation and auto MDI/MDIX
- Fanless design for completely silent operation
- Plug-and-play setup with no configuration required
- Steel casing for durability and heat dissipation
- Energy-efficient technology with 2.30 W power consumption
- Supports desktop or wall-mount installation
- IEEE 802.3x flow control for reliable data transfer
- Basic QoS and IGMP snooping for traffic prioritization
- RoHS compliant and environmentally friendly
- 3-year limited warranty with lifetime protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SG105 |
| Brand Name | TP-Link |
| Product Model | TL-SG105 |
| Product Name | 5-Port 10/100/1000Mbps Desktop Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1p |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 2.30 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop |
| Height | 1" (25.40 mm) |
| Width | 3.90" (99.06 mm) |
| Depth | 3.90" (99.06 mm) |
| Miscellaneous | |
| Package Contents | 5-Port 10/100/1000Mbps Desktop Switch Power Adapter User Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many devices can I connect to the TL-SG105 switch?
The TL-SG105 provides five Gigabit Ethernet ports, allowing you to connect up to five wired devices such as computers, printers, NAS units, or gaming consoles. Each port supports auto-negotiation for seamless compatibility with 10/100/1000 Mbps devices.
Does this switch support Power over Ethernet (PoE)?
No, the TL-SG105 does not support Power over Ethernet. It is a standard Gigabit switch that requires connected devices to have their own power sources. For PoE capabilities, you would need to consider a dedicated PoE switch model from TP-LINK's product lineup.
Is the TL-SG105 a managed or unmanaged switch?
This is an unmanaged switch, meaning it operates automatically without requiring configuration or management software. It's designed for plug-and-play use, making it ideal for users who need simple network expansion without advanced features like VLANs or port monitoring.
Can this switch be mounted on a wall?
Yes, the TL-SG105 includes keyhole slots on the bottom for wall mounting. This allows for flexible placement in space-constrained areas like network closets, behind desks, or in entertainment centers, helping to keep cables organized and workspaces tidy.
What is the power consumption of this switch?
The switch consumes approximately 2.30 watts of power under typical operation. This low power draw is achieved through energy-efficient technology, helping to reduce electricity costs while maintaining full Gigabit performance across all connected devices.
What warranty coverage does TP-LINK provide for this switch?
TP-LINK offers a 3-year limited warranty for the TL-SG105, backed by lifetime protection and free 24/7 technical support. This warranty covers defects in materials and workmanship, providing peace of mind for long-term deployment in home or small business environments.
