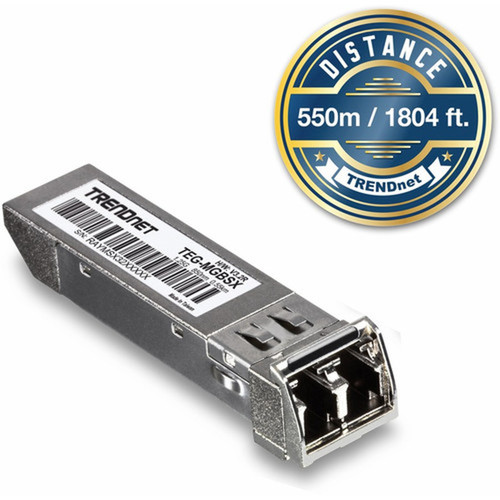

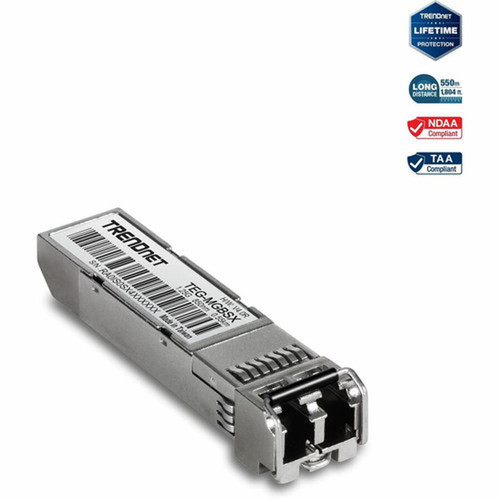

TRENDnet TEG-MGBSX SFP Multi-Mode LC Module - 1. 25 Gb/s Gigabit Ethernet - 1000Base-SX - Up to 550m - Hot-Pluggable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP module operates on the IEEE 802.3z Gigabit Ethernet standard, utilizing 1000Base-SX technology for efficient data transmission over multi-mode optical fiber. The LC duplex connector ensures secure, low-loss connections, while the single-port configuration supports straightforward integration into switches, routers, and media converters. The module's design prioritizes signal integrity and thermal management, maintaining stable operation across extended distances up to 550 meters.
Key technical attributes include a hot-pluggable form factor that complies with SFP MSA specifications, enabling interoperability with a wide range of networking hardware. The module does not feature DOM or DDM monitoring, focusing instead on core performance metrics like speed, distance, and media compatibility. Its compact dimensions—3" height, 3" width, and 5" depth—make it suitable for high-density installations without sacrificing airflow or rack space.
Key Product Advantages
The TRENDnet TEG-MGBSX SFP module offers distinct advantages for network professionals seeking reliable, high-performance fiber connectivity. Its hot-pluggable capability allows for effortless upgrades or replacements during live operations, reducing network disruption and operational costs. The module's compatibility with industry-standard SFP slots ensures broad interoperability across various vendor equipment, simplifying procurement and deployment in heterogeneous environments.
Extended Reach & Speed
Supports Gigabit Ethernet at up to 550 meters over multi-mode fiber, ideal for medium-distance backbone links and inter-building connections without signal degradation.
- 1000Base-SX technology
- Up to 1.25 Gb/s throughput
- Low-latency data transfer
Compliance & Reliability
TAA compliance meets stringent government procurement standards, while the 3-year limited lifetime warranty underscores long-term durability and manufacturer support.
- TAA compliant for U.S./Canada
- 3-year warranty coverage
- Industrial-grade construction
Deployment / Use Cases
This SFP module is tailored for deployments requiring robust Gigabit Ethernet over fiber, particularly in scenarios where copper cabling falls short due to distance or interference. It excels in connecting network switches across separate floors or buildings within a campus, providing a cost-effective solution for extending LAN segments without compromising speed. Data centers can leverage it for top-of-rack switching to aggregate server traffic, while enterprise networks benefit from its reliability in core distribution layers.
Common use cases include backbone links in educational institutions, healthcare facilities, and corporate offices where multi-mode fiber infrastructure is already in place. It also serves well in storage area networks (SANs) and video surveillance systems that demand high-bandwidth, low-latency connections over moderate distances. The module's hot-pluggable design makes it suitable for environments with frequent hardware changes, such as colocation facilities or managed service provider networks.
Physical Profile
The TEG-MGBSX features a compact, hot-pluggable form factor with dimensions of 3" (76.20 mm) in height, 3" (76.20 mm) in width, and 5" (127 mm) in depth, weighing approximately 6.16 oz (174.63 g). Its small footprint allows for high-density installations in network switches and routers, optimizing rack space without obstructing airflow. The robust construction ensures durability during handling and insertion, with a design that dissipates heat effectively to maintain performance under continuous operation.
- Width
- 3" (76.20 mm)
- Depth
- 5" (127 mm)
- Height
- 3" (76.20 mm)
- Weight
- 6.16 oz (174.63 g)
Highlights
- Hot-pluggable SFP (mini-GBIC) module for easy installation and replacement
- Supports Gigabit Ethernet with 1000Base-SX technology over multi-mode fiber
- LC duplex connector for secure, low-loss optical connections
- Maximum reach of 550 meters (0.34 miles) for extended network links
- Compatible with industry-standard SFP slots in switches and routers
- TAA compliant, meeting U.S. and Canadian government procurement requirements
- 3-year limited lifetime warranty for reliable long-term performance
- Compact dimensions (3"H x 3"W x 5"D) ideal for high-density deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-MGBSX |
| Brand Name | TRENDnet |
| Product Model | TEG-MGBSX |
| Product Name | Mini GBIC Multi-mode SX Module |
| Product Condition | New |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 3" (76.20 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5" (127 mm) |
| Weight (Approximate) | 6.16 oz (174.63 g) |
| Miscellaneous | |
| Compatibility | This Module is for industry standard SFP slot |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year Lifetime |
User Manual
FAQ
What type of connector does this SFP module use?
This module uses an LC duplex connector, which is a standard small-form-factor connector for optical fiber. The LC interface provides secure, low-loss connections, making it widely compatible with fiber patch panels and networking equipment that support LC-terminated cables in data center and enterprise environments.
What is the maximum distance supported by this module?
The TRENDnet TEG-MGBSX supports a maximum distance of 0.55 km (550 meters or approximately 0.34 miles) over multi-mode optical fiber. This reach is suitable for medium-distance applications such as inter-building links, campus networks, or data center aisles where Gigabit Ethernet connectivity is required beyond typical copper limits.
Is this module hot-pluggable?
Yes, this SFP module is hot-pluggable, meaning it can be inserted or removed from a compatible SFP slot without powering down the networking device. This feature minimizes downtime during maintenance, upgrades, or reconfigurations, allowing for flexible network management in live environments like data centers or enterprise networks.
What fiber mode does this SFP module support?
This module supports multi-mode optical fiber, which is commonly used for shorter to medium-distance transmissions within buildings or campuses. Multi-mode fiber is cost-effective and works well with the 1000Base-SX technology in this module, delivering Gigabit Ethernet speeds up to 550 meters without the need for single-mode infrastructure.
Is this SFP module TAA compliant?
Yes, the TRENDnet TEG-MGBSX is TAA compliant, meeting the Trade Agreements Act requirements for procurement in the United States and Canada. This compliance ensures the module can be used in government contracts and projects that mandate sourcing from designated countries, adding value for public-sector and regulated industry deployments.
What is the warranty period for this module?
This module comes with a 3-year limited lifetime warranty from TRENDnet, providing coverage against defects in materials and workmanship. The warranty supports long-term reliability, giving network administrators confidence in the product's durability for critical infrastructure applications over extended use.
