Product Features
Technical Overview
This 8-port Fast Ethernet switch delivers 10/100 Mbps connectivity across all ports using standard twisted pair cabling with support for distances up to 100 meters. The switch implements Layer 2 switching functionality, enabling basic VLAN segmentation and improved network performance through dedicated collision domains for each port.
The NFI-U08-1 complies with IEEE 802.3, 802.3u, and 802.3x standards, ensuring interoperability with existing network infrastructure and providing flow control capabilities. As an unmanaged switch, it requires no configuration or management interface, offering plug-and-play operation with automatic negotiation and auto-MDI/MDIX functionality on all ports.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The NFI-U08-1 combines practical connectivity with installation flexibility in a compact, energy-efficient package. Its dual mounting options and industrial-grade construction make it adaptable to various deployment scenarios from office networks to equipment cabinets.
Simplified Network Expansion
Add eight wired network connections instantly without configuration requirements or management overhead.
- Plug-and-play installation
- No software configuration needed
- Automatic port negotiation
Flexible Installation Options
Mount the switch on DIN rails for industrial applications or directly on walls for office deployments.
- DIN rail compatible
- Wall mount bracket included
- Compact footprint saves space
Energy Efficient Operation
Consumes only 4 watts of power while delivering full Fast Ethernet performance across all ports.
- Low power consumption
- Reduced operating costs
- Cooler operation
Deployment / Use Cases
The NFI-U08-1 Ethernet switch serves as an ideal solution for extending wired network connectivity in environments where simplicity and reliability are paramount. Its unmanaged design makes it particularly suitable for non-technical users or locations without dedicated IT staff.
Common deployment scenarios include small office networks where additional ports are needed for workstations and printers, conference rooms requiring temporary network expansion, retail point-of-sale systems, classroom technology setups, and industrial control panels where DIN rail mounting is preferred. The switch's compact dimensions and dual mounting capabilities allow installation in space-constrained locations while maintaining professional-grade connectivity.
Small Office Networking
Connect multiple workstations, printers, and network devices in office environments with minimal setup time.
Industrial Applications
Mount on DIN rails within control panels to network industrial equipment and monitoring devices.
Physical Profile
Measuring 4.30" high × 0.90" wide × 2.90" deep (109.22 × 22.86 × 73.66 mm) and weighing approximately 6.70 ounces (190 grams), the NFI-U08-1 features a compact form factor that conserves valuable installation space. The all-metal construction provides durability and effective heat dissipation, while the included mounting hardware supports both DIN rail and wall installation methods. The slim profile allows installation in tight spaces, making it suitable for crowded network cabinets or equipment enclosures.
- Width
- 0.90" (22.86 mm)
- Depth
- 2.90" (73.66 mm)
- Height
- 4.30" (109.22 mm)
- Weight
- 6.70 oz (190 g)
What's in the Box
The package includes all necessary components for immediate deployment of the Ethernet switch.
Highlights
- 8 Fast Ethernet ports for connecting multiple network devices
- Layer 2 switching support for basic network segmentation
- DIN rail and wall mounting options for flexible installation
- Unmanaged operation with plug-and-play connectivity
- 4W power consumption for energy-efficient operation
- Metal construction for durability and heat dissipation
- Compliant with IEEE 802.3, 802.3u, and 802.3x standards
- 3-year limited warranty for long-term reliability
- TAA compliant for government and educational procurement
- RoHS and REACH environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | NFI-U08-1 |
| Brand Name | Tripp Lite series |
| Product Model | NFI-U08-1 |
| Product Name | NFI-U08-1 Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Consumption | 4 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | DIN Rail Mountable,Wall Mountable |
| Height | 4.30" (109.22 mm) |
| Width | 0.90" (22.86 mm) |
| Depth | 2.90" (73.66 mm) |
| Weight (Approximate) | 6.70 oz (190 g) |
| Miscellaneous | |
| Package Contents | NFI-U08-1 Ethernet Switch DIN Rail-mounting Clip Wall-mount Bracket Owner's Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many devices can I connect to this Ethernet switch?
The Tripp Lite NFI-U08-1 provides eight Fast Ethernet ports, allowing you to connect up to eight network devices simultaneously. This includes computers, printers, IP phones, surveillance cameras, and other Ethernet-enabled equipment. The switch supports automatic negotiation on each port, ensuring compatibility with various device types and speeds.
What is the difference between managed and unmanaged switches?
The NFI-U08-1 is an unmanaged switch, meaning it operates without configuration interfaces or management software. Unlike managed switches that offer VLAN configuration, QoS settings, and monitoring capabilities, unmanaged switches provide basic plug-and-play connectivity. This makes the NFI-U08-1 ideal for simple network expansion where advanced features are not required.
Can this switch be mounted in an industrial setting?

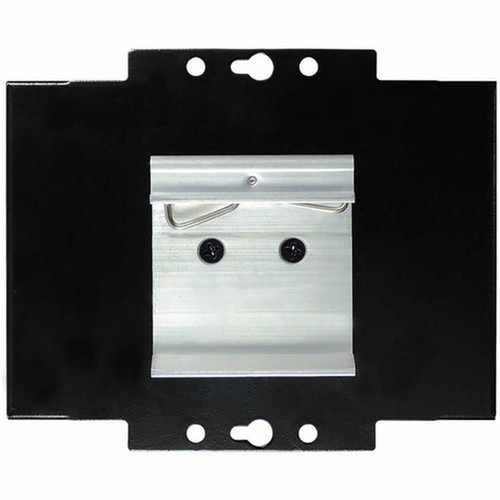

Yes, the NFI-U08-1 includes a DIN rail mounting clip specifically designed for industrial installations. The switch can be securely mounted on standard DIN rails commonly found in control panels, equipment cabinets, and industrial automation systems. The metal construction withstands vibration and provides reliable operation in industrial environments.
What type of cables does this switch support?
This switch supports standard twisted pair Ethernet cables (CAT5, CAT5e, or CAT6) with RJ-45 connectors. It is compatible with 10/100Base-T network technology and can maintain connections up to 100 meters (328 feet) per the Ethernet standard. The switch features auto-MDI/MDIX functionality, eliminating the need for crossover cables between devices.
Does this switch support Power over Ethernet (PoE)?
No, the NFI-U08-1 does not provide Power over Ethernet capabilities. It is a standard Fast Ethernet switch that requires connected devices to have their own power sources. For PoE applications, you would need a switch specifically designed with PoE functionality to deliver both data and power over Ethernet cables.
What warranty coverage does this product include?
Tripp Lite by Eaton provides a 3-year limited warranty for the NFI-U08-1 Ethernet switch. This warranty covers defects in materials and workmanship under normal use. The switch is also TAA compliant, making it suitable for government and educational procurement programs that require Trade Agreements Act compliance.
