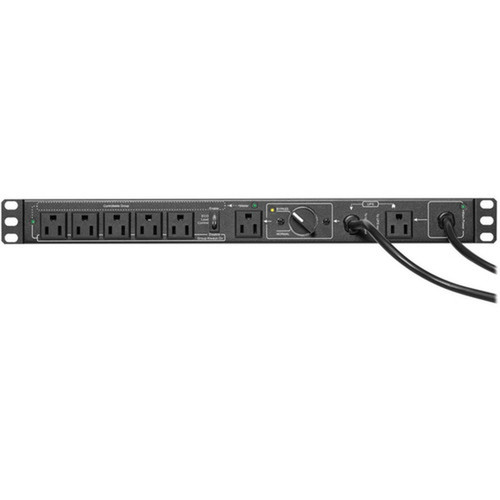

Tripp Lite by Eaton PDUB151U Manual Bypass PDU - 6 Outlets - 1.52 kW - 120V AC - 1U Rack/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This single-phase PDU accepts 120 V AC input with a 15 A current rating, delivering output voltages of 100 V AC, 120 V AC, and 127 V AC to accommodate various equipment requirements. The manual bypass functionality provides a straightforward method for redirecting power during maintenance or failure scenarios.
The unit features two NEMA 5-15P input plugs and six NEMA 5-15R output receptacles, creating a balanced power distribution setup for servers, switches, and other rack-mounted devices. Its horizontal mounting orientation optimizes airflow and cable management in standard rack configurations.
Relevant factors for this section include PDU Type, Phase, Plug/Connector Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PDUB151U combines robust power distribution with flexible installation options, making it ideal for environments where reliability and space efficiency are critical. Its design prioritizes both performance and serviceability.
Dual Mounting Flexibility
Install in standard 19-inch racks using the 1U form factor or mount directly to walls, adapting to various infrastructure layouts without compromising functionality.
- 1U rack height
- Wall-mountable design
- Horizontal orientation
Service-Friendly Design
Hot-swappable construction enables maintenance and component replacement without powering down connected equipment, minimizing downtime during service operations.
- Manual bypass capability
- Continuous operation during service
- Easy access to components
Compliance and Reliability
Manufactured with RoHS-compliant materials and backed by a 2-year limited warranty, ensuring environmental responsibility and long-term performance assurance.
- RoHS compliant
- 2-year warranty
- Quality construction
Deployment / Use Cases
The PDUB151U serves as a foundational power management solution for IT infrastructure requiring distributed power with maintenance flexibility. Its manual bypass feature makes it particularly valuable in environments where scheduled maintenance must occur without service interruption.
Typical deployments include server racks in small to medium data centers, network equipment cabinets in office environments, and telecommunications installations where reliable power distribution supports critical operations. The unit's compact 1U profile makes it suitable for racks with limited vertical space.
Data Center Power Distribution
Distribute power to multiple servers and networking devices within a single rack, utilizing all six outlets for comprehensive equipment support.
Network Closet Management
Provide organized power delivery to switches, routers, and other network hardware in telecommunications rooms or office network closets.
Physical Profile
Measuring 17.24" wide, 3.94" deep, and 1.73" high, the PDUB151U maintains a compact footprint that maximizes rack space utilization. The 5.20 lb weight ensures easy handling during installation while providing stable mounting in both rack and wall configurations.
The horizontal orientation and 1U rack height align with standard server rack dimensions, facilitating seamless integration into existing infrastructure. The unit's design supports proper cable routing and airflow management within enclosed rack environments.
- Width
- 17.24" (437.90 mm)
- Depth
- 3.94" (100.08 mm)
- Height
- 1U
- Weight
- 5.20 lb (2358.68 g)
What's in the Box
Each PDUB151U package includes all necessary components for immediate deployment and operation.
Highlights
- Manual bypass PDU with 6 NEMA 5-15R outlets
- 1.52 kW power capacity at 120 V AC input
- 1U rack-mountable design with wall-mount capability
- Hot-swappable form factor for maintenance flexibility
- Single-phase operation with 15 A input current
- Output voltages: 100 V AC, 120 V AC, 127 V AC
- Horizontal mounting orientation for optimal airflow
- RoHS compliant with 2-year limited warranty
- Compact dimensions: 17.24" W x 3.94" D x 1.73" H
- Includes mounting hardware and owner's manual
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUB151U |
| Brand Name | Tripp Lite series |
| Product Model | PDUB151U |
| Product Name | PDUB151U 6-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Manual Bypass |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Plug/Connector Detail | 2 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC,120 V AC,127 V AC |
| Power Rating (Watt) | 1.52 kW |
| Input Current | 15 A |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Wall-mountable,Rack-mountable |
| Form Factor | Hot-swappable |
| Rack Height | 1U |
| Height | 1.73" (43.94 mm) |
| Width | 17.24" (437.90 mm) |
| Depth | 3.94" (100.08 mm) |
| Weight (Approximate) | 5.20 lb (2358.68 g) |
| Miscellaneous | |
| Package Contents | PDUB151U 6-Outlets PDU Mounting Hardware Owner's Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of the PDUB151U PDU?
The PDUB151U delivers 1.52 kW of power capacity, supporting equipment with a combined load up to this rating. This capacity is suitable for powering multiple servers, network switches, or other rack-mounted devices within a single enclosure while maintaining safe operating margins.
How many outlets does this PDU provide and what type are they?
This PDU features six NEMA 5-15R outlets, which are standard North American 15-amp receptacles. These outlets accept standard NEMA 5-15P plugs commonly used for computers, monitors, networking equipment, and other IT devices requiring 120V AC power.
Can the PDUB151U be mounted in a standard server rack?
Yes, the PDUB151U is designed for 1U rack mounting in standard 19-inch server racks. Its horizontal orientation and 17.24-inch width ensure proper fit within rack dimensions, while the included mounting hardware facilitates secure installation. The unit also supports wall mounting for alternative deployment scenarios.
What input voltage does this PDU require?
The PDUB151U requires 120 V AC input voltage with a 15 A current rating. It accepts power through two NEMA 5-15P input plugs, providing redundancy and balanced power distribution. The unit delivers output voltages of 100 V AC, 120 V AC, and 127 V AC to accommodate various equipment requirements.

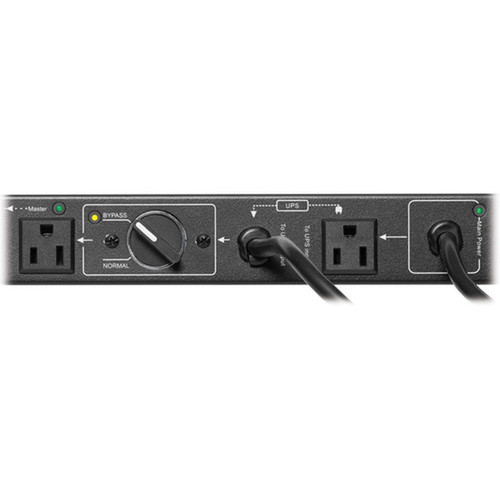

What does 'manual bypass' mean for this PDU?
Manual bypass refers to the ability to redirect power flow manually during maintenance or component failure without interrupting power to connected devices. This feature allows technicians to service the PDU or replace components while maintaining continuous operation of critical equipment, minimizing downtime in production environments.
What warranty coverage does Tripp Lite by Eaton provide for this PDU?
Tripp Lite by Eaton provides a 2-year limited warranty for the PDUB151U PDU. This warranty covers defects in materials and workmanship under normal use conditions. The unit is also RoHS compliant, meeting environmental standards for hazardous substance restriction in its manufacturing materials.
