Tripp Lite by Eaton SU6000RTMB SmartOnline 6000VA Rack/Tower UPS - 6 kVA / 5.4 kW Double Conversion Online - 230V AVR - 3U - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Tripp Lite by Eaton SmartOnline SU6000RTMB is a 6000VA double conversion online UPS engineered for rack or tower deployment in mission-critical IT and commercial environments. This 3U unit delivers 5.4 kW of protected power capacity with pure sine wave output, ensuring compatibility with sensitive servers, networking equipment, and infrastructure that demands clean, uninterrupted power. Its double conversion online topology provides zero transfer time, creating an isolated power environment that filters electrical noise and delivers regulated power to critical loads.
Built with automatic voltage regulation (AVR), this UPS maintains stable output voltage regardless of input fluctuations, protecting connected devices from brownouts and overvoltages. The unit supports both NEMA L6-20R and L6-30R receptacles, plus hardwiring capability, offering flexible connection options for diverse equipment configurations. With a 10-foot power cord and comprehensive surge suppression, it provides robust protection against power anomalies while accommodating typical data center and server room layouts.
Designed for reliability, the SU6000RTMB features hot-swappable, replaceable valve-regulated lead-acid batteries that enable maintenance without interrupting connected equipment. The LCD display and four status-indicating LEDs provide real-time system monitoring, while built-in bypass switching allows for safe maintenance operations. This UPS is Energy Star certified and RoHS compliant, reflecting its efficiency and environmental responsibility in demanding operational settings.
Technical Overview
This UPS employs double conversion online technology that continuously converts AC input to DC and back to AC, providing complete isolation from utility power anomalies. The pure sine wave output ensures compatibility with power factor corrected (PFC) power supplies found in modern servers, networking gear, and storage systems, preventing potential damage to sensitive electronics. With an output power factor of 0.9 and 98% efficiency in ECO Mode, it optimizes power delivery while minimizing operational costs and heat generation.
The unit features a comprehensive management suite including network card support, USB connectivity, RS-232 serial interface, dry contacts, and SNMP capabilities for remote monitoring and control. The front panel LCD display provides detailed real-time status information, while four status-indicating LEDs offer at-a-glance system health assessment. Built-in bypass switching allows for maintenance without interrupting connected equipment, and the 0 ns transfer time ensures seamless power continuity during utility failures or disturbances.
Electrical specifications include 230 V AC input voltage with 24.80 A input current, and output voltage support ranging from 100 V AC to 240 V AC across both 50 Hz and 60 Hz frequencies. The EMI/RFI noise filter and circuit breaker provide additional protection against electrical interference and overload conditions. Thermal dissipation of 1895 BTU/h and operating temperature range of 32°F to 104°F ensure reliable performance in typical data center environments, while the 180 V DC system voltage supports the valve-regulated lead-acid battery configuration.
Key Product Advantages
Mission-Critical Protection
Double conversion online topology with zero transfer time ensures uninterrupted power to sensitive equipment during utility failures or disturbances.
- Pure sine wave output for PFC load compatibility
- AVR corrects brownouts and overvoltages
- EMI/RFI noise filtering protects sensitive electronics
Flexible Deployment
Rack/tower convertible design with included tower support stands and rack-mounting hardware accommodates diverse installation requirements.
- 3U rack height optimizes data center space
- Hot-swappable batteries enable maintenance without downtime
- Replaceable battery design extends system lifespan
Comprehensive Management
Multiple connectivity options and monitoring capabilities provide complete control over power infrastructure.
- Network card support for remote management
- LCD display with real-time status information
- Audible alarms for power events and system faults
Deployment / Use Cases
The SU6000RTMB is engineered for environments where power continuity is non-negotiable. Its 5.4 kW capacity and pure sine wave output make it ideal for protecting server racks, network closets, telecommunications equipment, and medical devices that require clean, stable power.
Educational institutions can deploy these units to protect computer labs and administrative systems. Financial organizations benefit from the UPS's ability to maintain transaction systems during brief power interruptions. Healthcare facilities rely on its reliable performance to keep diagnostic equipment and patient monitoring systems operational.
Data Center Applications
Protect server racks with 3U form factor efficiency, hot-swappable batteries for maintenance continuity, and network management for remote monitoring.
Commercial Infrastructure
Secure point-of-sale systems, security cameras, access control systems, and network switches with AVR protection and surge suppression.
Physical Profile

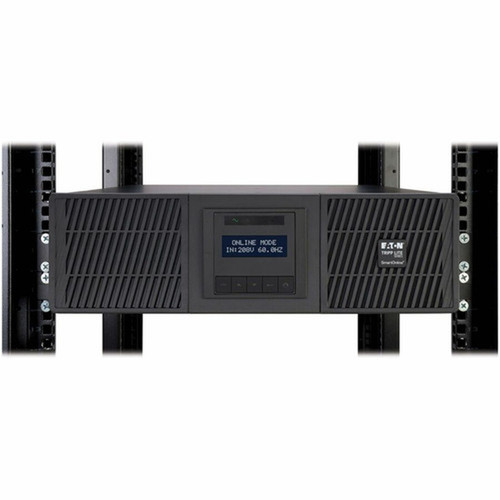

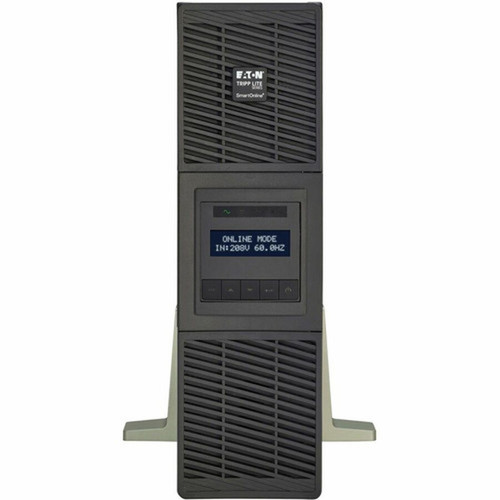

The SU6000RTMB measures 5.10" (129.54 mm) in height, 17.30" (439.42 mm) in width, and 34" (863.60 mm) in depth, occupying 3U of rack space. At 111.50 pounds, the unit is designed for stable installation in either rack or tower configuration with included support hardware.

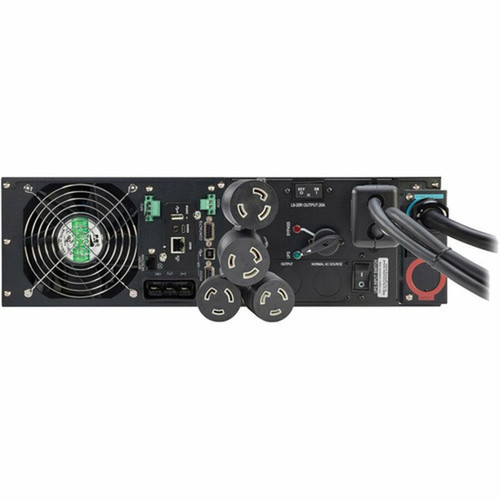

The front panel features an LCD display for detailed system information and four status-indicating LEDs for quick visual assessment. Rear panel connections include NEMA L6-20R and L6-30R receptacles, hardwiring capability, and management ports for comprehensive integration.
- Width
- 17.30" (439.42 mm)
- Depth
- 34" (863.60 mm)
- Height
- 5.10" (129.54 mm)
- Weight
- 111.50 lb (50575.55 g)
- Length
- 10 ft (3.05 m)
What's in the Box
This UPS ships complete with all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 6000VA / 5.4 kW double conversion online UPS with pure sine wave output
- 3-minute full load runtime and 8-minute half load runtime for brief power interruptions
- Automatic voltage regulation (AVR) corrects brownouts and overvoltages
- Rack/tower convertible design with 3U rack height for space-efficient deployment
- Network management capabilities with card support, USB, RS-232, and SNMP
- Hot-swappable, replaceable lead-acid batteries for maintenance without downtime
- LCD display with status indicators for real-time system monitoring
- 98% efficiency in ECO Mode reduces operating costs and heat generation
- 2-year limited warranty with 250,000 Ultimate Lifetime Insurance
- RoHS compliant and Energy Star certified for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU6000RTMB |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SU6000RTMB |
| Product Name | SmartOnline SU6000RTMB 6000VA Rack/tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L6-30P,Hardwired |
| Receptacle Type | NEMA L6-20R,NEMA L6-30R,Hardwired |
| Receptacle Detail | 2 x NEMA L6-20R,2 x NEMA L6-30R |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 98% (ECO Mode) |
| Application/Usage | Mission Critical Equipment,IT Equipment,Network Device,Education,Commercial,Financial,Healthcare |
| Surge Suppression | Yes |
| Features | Audible Alarm,Cold Start Function,Green Energy Saving,Built-in Bypass Switch |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 5.40 kW |
| Input Voltage | 230 V AC |
| Input Current | 24.80 A |
| Output Voltage | 230 V AC,240 V AC,220 V AC,208 V AC,200 V AC,100 V AC,110 V AC,120 V AC |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card,DB-9 RS-232,Dry Contact,USB,SNMP |
| Alarm | Utility Power Failure,Low Battery,Overload,Battery Fault,Remote Shutdown |
| Controls/Indicators | |
| Status Indicators | LED Indicators: 4 status-indicating LEDs |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| DC System Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 1895 BTU/h |
| Physical Characteristics | |
| Height | 5.10" (129.54 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 34" (863.60 mm) |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 111.50 lb (50575.55 g) |
| Miscellaneous | |
| Package Contents | SmartOnline SU6000RTMB 6000VA Rack/tower UPS SUPDMBP6K Maintenance Bypass WEBCARDLXE Network Card USB Cable RS-232 Cable Tower Support Stands Cable Gland for Hardwire Connection Rack-mounting Hardware Maintenance Bypass Mounting Hardware DB9 Serial Cables Quick Start Guide |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 250,000 Ultimate Lifetime Insurance |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite by Eaton SmartOnline SU6000RTMB provides 6 kVA (6000VA) and 5.40 kW of power capacity, making it suitable for protecting server racks, network equipment, and other mission-critical infrastructure that requires substantial backup power.
What runtime can I expect at full and half load?
At full load, this UPS delivers 3 minutes of runtime, while at half load it provides 8 minutes of backup power. These runtimes allow for orderly shutdown of connected equipment or bridging brief utility interruptions in data center and commercial environments.
How many outlets does this UPS have and what types?
The unit includes 2 NEMA L6-20R and 2 NEMA L6-30R receptacles, plus hardwiring capability for direct connection. This outlet configuration supports a mix of equipment with different power requirements while providing battery backup and surge protection to all connected devices.
What input and output voltage does this UPS support?
The UPS accepts 230 V AC input and provides output voltage ranging from 100 V AC to 240 V AC, supporting both 50 Hz and 60 Hz frequencies. This wide voltage range ensures compatibility with equipment in various regions and electrical environments.
Is this UPS designed for rack or tower deployment?
The SU6000RTMB features a convertible rack/tower design with a 3U rack height. It includes both rack-mounting hardware and tower support stands, allowing flexible installation in data center racks or as a standalone tower unit based on your infrastructure requirements.
What management and connectivity options are available?
Management options include network card support, USB, RS-232 serial interface, dry contacts, and SNMP capabilities. These connectivity features enable remote monitoring, configuration, and control of the UPS through network management systems or direct connections for comprehensive power infrastructure management.
