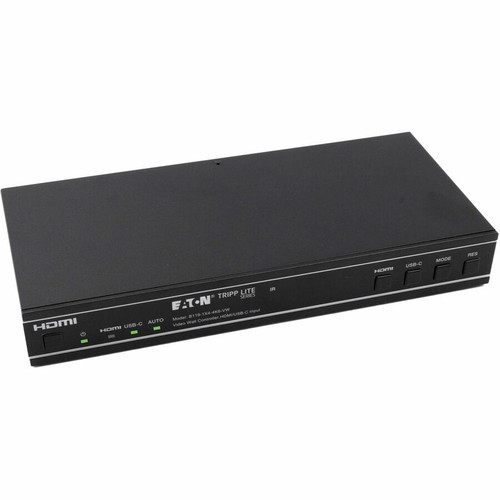

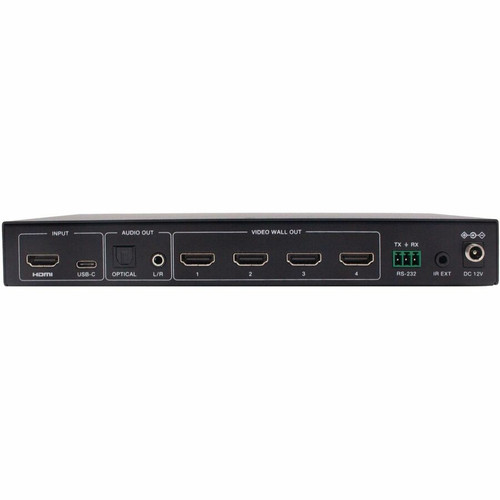

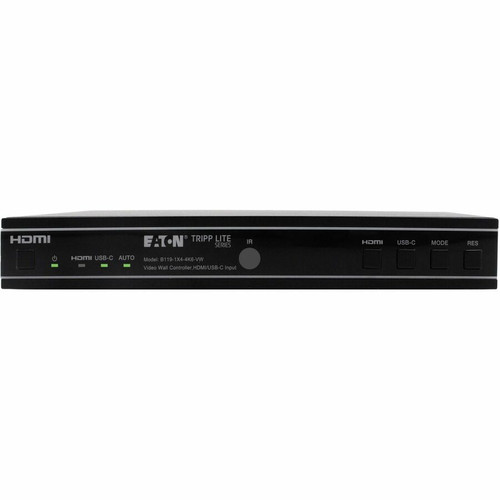

Tripp Lite series 1x4 Video Wall Controller - 4K 60 Hz, 1 HDMI/USB-C Input, 4 HDMI Outputs, HDR, 4:4:4 - 3840 x 2160 - 4K, 4K UHD - 1 (B119-1X4-4K6-VW)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1x4 Video Wall Controller - 4K 60 Hz, 1 HDMI/USB-C Input, 4 HDMI Outputs, HDR, 4:4:4
- IR remote
- IR receiver cable, 5 ft. (1.5 m)
- 3-pin RS-232 Phoenix connector
- External power supply (Input: 100-240V, 50/60 Hz, 0.3A; Output: 12V 1A) with 4 ft. (1.2 m) cord
- 4x International plug adapters
- 4x Machine screws
- 2x Mounting brackets
- Installation instructions
Connectivity Technology: Cable
Number of Input Devices Supported: 1
Device Supported: Display,Monitor,TV,Projector,Blu-ray Disc Player,Notebook
Number of Displays Supported: 4
Graphics Modes: 4K,4K UHD
Maximum Video Resolution: 3840 x 2160
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of USB Ports: 1
Number of HDMI Inputs: 1
Number of HDMI Outputs: 4
Form Factor: Rack-mountable,Wall Mountable,Under Table
Height: 1.18" (29.97 mm)
Width: 3.93" (99.82 mm)
Depth: 8.66" (219.96 mm)
Weight (Approximate): 1.30 lb (589.67 g)
Package Contents:
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
Limited Warranty: 3 Year
- Quickly switches both video and audio between sources without physical access
- A great solution for connecting display
- Enjoy watching any class of content on 3840 x 2160 resolution
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B119-1X4-4K6-VW |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B119-1X4-4K6-VW |
| Product Name | 1x4 Video Wall Controller - 4K 60 Hz, 1 HDMI/USB-C Input, 4 HDMI Outputs, HDR, 4:4:4 |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 1 |
| Device Supported | Display,Monitor,TV,Projector,Blu-ray Disc Player,Notebook |
| Number of Displays Supported | 4 |
| Video | |
| Graphics Modes | 4K,4K UHD |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Wall Mountable,Under Table |
| Height | 1.18" (29.97 mm) |
| Width | 3.93" (99.82 mm) |
| Depth | 8.66" (219.96 mm) |
| Weight (Approximate) | 1.30 lb (589.67 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
