Tripp Lite series NGI-S04C2 Ethernet Switch - 4 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100Base-FX, 1000Base-X, - 2 (NGI-S04C2)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- NGI-S04C2 Ethernet Switch
- DIN Rail-mounting Clip (Pre-installed)
Total Number of Network Ports: 4
Network (RJ-45): Yes
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details: 4 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Uplink
Media Type Supported: Optical Fiber,Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T,100Base-FX,1000Base-X,1000Base-SX/LX
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: No
Number of SFP Slots: 2
Layer Supported: 2
Networking Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p,IEEE 802.3az
Manageable: Yes
PoE (RJ-45) Port: No
Power Consumption: 10 W
Plug/Connector Type: Terminal Block
Product Material: Metal
Form Factor: DIN Rail Mountable
Height: 6.30" (160.02 mm)
Width: 1.97" (50.04 mm)
Depth: 4.70" (119.38 mm)
Weight (Approximate): 1.92 lb (870.90 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 3 Year

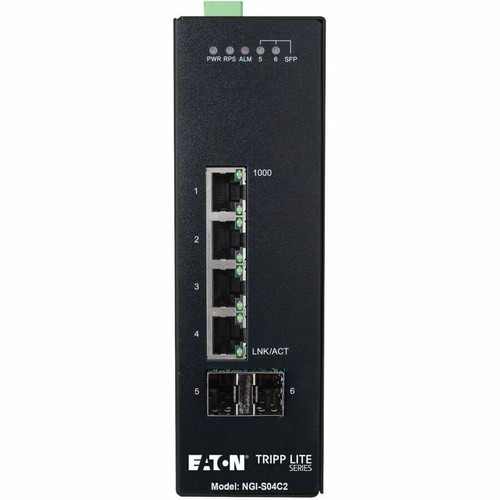

- 4 auto-negotiable RJ45 and 2 GbE SFP ports connect devices over a LAN
- Industrial-grade switch supports operating temperature range of -10° to 60°C
- CLI or web management allows monitoring and control of each connected device

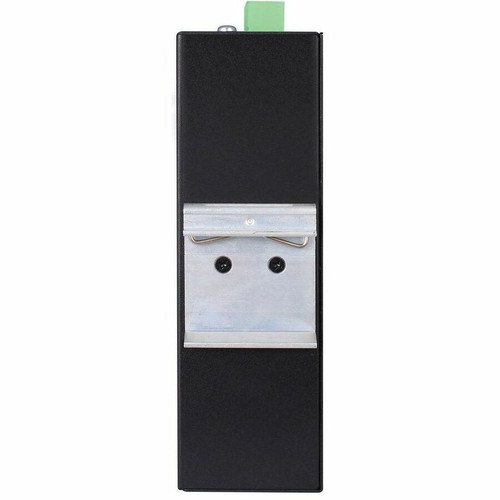

- Heavy-duty IP30 metal housing mounts to standard DIN rail with pre-installed bracket
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | NGI-S04C2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | NGI-S04C2 |
| Product Name | NGI-S04C2 Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 4 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Uplink |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,100Base-FX,1000Base-X,1000Base-SX/LX |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p,IEEE 802.3az |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Consumption | 10 W |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | DIN Rail Mountable |
| Height | 6.30" (160.02 mm) |
| Width | 1.97" (50.04 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 1.92 lb (870.90 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite Cat5e Patch Cable - 50ft - 1 x RJ-45 Male - 1 x RJ-45 Male - Black |
| SKU | N001-050-BK |
| Sale Price | $13.95 |
| Product | Tripp Lite Duplex Fiber Optic Patch Cable - LC Male - LC Male - 10m |
| SKU | N520-10M |
| Sale Price | $24.95 |
| Product | Tripp Lite Cat5e Patch Cable - 7ft - 1 x RJ-45 Male - 1 x RJ-45 Male - Blue |
| SKU | N001-007-BL |
| Sale Price | $3.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
| Qty | Price | Available |
|---|
