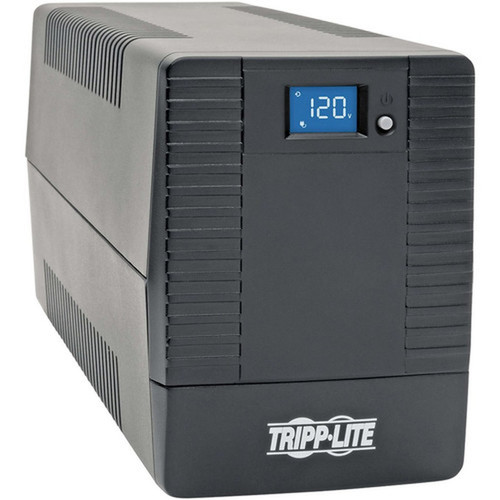

Tripp Lite by Eaton OMNI700LCDT 700VA/350W Tower UPS - Line-Interactive with AVR - 6 Outlets - LCD Display - 3-Minute Full-Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS operates with a single-phase input, accepting 120V AC within a range of 110-120V AC and delivering output voltages of 110V, 115V, or 120V AC at 60Hz. The pulse-width modulated sine wave output ensures compatibility with active PFC power supplies found in modern computers and servers. A 6ms transfer time provides seamless switching to battery power during outages, while the integrated EMI/RFI noise filter and 316-joule surge energy rating protect connected equipment from electrical interference and transient spikes.
The 12V DC battery system supports a 3-minute runtime at full load and extends to 10 minutes at half load, offering enough time for orderly shutdowns or to ride through brief interruptions. The replaceable battery design and 8-hour typical recharge time support long-term maintainability and quick recovery after extended use.
Key Product Advantages
The OMNI700LCDT combines essential power protection features with user-friendly management in a compact tower form factor. Its automatic voltage regulation handles common power sags and surges without draining the battery, while the LCD interface provides at-a-glance status updates without requiring software.
Comprehensive Outlet Protection

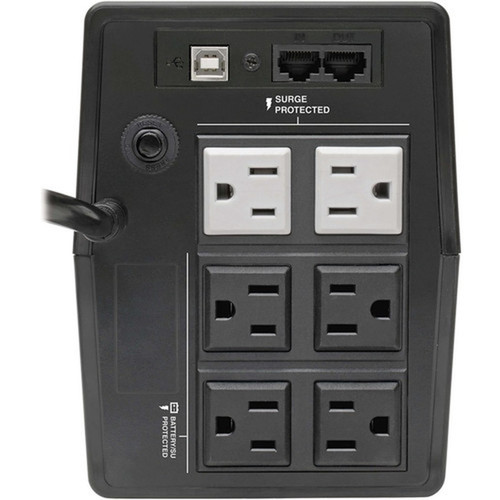

Six NEMA 5-15R outlets include four battery-backed and surge-protected outlets for critical devices, plus two surge-only outlets for peripherals. RJ-45 dataline protection safeguards connected network equipment from voltage spikes.
- 4 Battery & Surge Outlets
- 2 Surge-only Outlets
- RJ-45 Dataline Protection
Intuitive Monitoring & Alerts
The front-panel LCD displays real-time voltage, load percentage, and battery charge data. Audible alarms alert users to low battery, overload, fault conditions, and replacement needs.
- LCD Voltage & Load Display
- Battery Charge Level
- Multi-Condition Alarms
Deployment / Use Cases
This 700VA tower UPS is engineered for environments where stable power is essential but space is limited. Its compact footprint and vertical orientation make it suitable for placement beside desks, under workstations, or in network closets where rack-mounted units aren't practical.
Typical applications include protecting desktop computers with monitors in office settings, supporting networking equipment like routers and switches in small business environments, and providing backup power for point-of-sale systems, security system components, or home entertainment centers. The green energy-saving feature reduces power consumption during normal operation, making it suitable for always-on deployments.
Office Workstation Protection
Ideal for desktop computers, monitors, and printers in business environments where power fluctuations could disrupt productivity and risk data loss during outages.
Network & Peripheral Support
Provides backup power for routers, switches, and modems to maintain network connectivity during brief outages, with surge-only outlets available for scanners or other non-critical peripherals.
Physical Profile
The tower form factor measures 6.30" high, 4.80" wide, and 13.60" deep, with a weight of approximately 14.30 pounds. This vertical design minimizes desk or floor footprint while providing stable placement. The unit operates in temperatures up to 104°F (40°C) and can be stored in conditions ranging from 5°F to 113°F (-15°C to 45°C) with up to 90% relative humidity.
- Width
- 4.80" (121.92 mm)
- Depth
- 13.60" (345.44 mm)
- Height
- 6.30" (160.02 mm)
- Weight
- 14.30 lb (6486.37 g)
What's in the Box
The package includes everything needed for immediate deployment of the UPS system.
Highlights
- 700VA/350W line-interactive tower UPS with automatic voltage regulation (AVR)
- 6 total outlets: 4 battery-backed surge-protected + 2 surge-only outlets
- Front-panel LCD displays real-time voltage, load percentage, and battery status
- 3-minute runtime at full load, extending to 10 minutes at half load
- 8-hour typical battery recharge time with replaceable battery design
- 6ms transfer time with pulse-width modulated sine wave output
- EMI/RFI noise filtering and 316-joule surge energy rating
- USB (HID compliant) port for basic connectivity without requiring drivers
- Compact tower form factor: 6.30"H × 4.80"W × 13.60"D, 14.30 lb
- 3-year limited warranty with RoHS compliance and green energy-saving feature
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | OMNI700LCDT |
| Brand Name | Tripp Lite series |
| Product Model | OMNI700LCDT |
| Product Name | OMNI700LCDT 700VA Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 2 |
| Dataline Protection | RJ-45 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Green Energy-Saving |
| Application/Usage | Desktop Computer,Electronic Device,Gaming Console,Router,Television,ATM,Printer,Blu-ray Player,DVR,Digital Signage,Home Theater,Office,Security System,Monitor,Media Center,Scanner |
| Power Description | |
| Load Capacity (VA) | 700 VA |
| Load Capacity (Watt) | 350 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 110 V AC - 120 V AC |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Management | |
| Alarm | Low Battery,Fault,Overload,Replace Battery |
| Controls/Indicators | |
| Status Indicators | Front Panel LCD Display: Input and output voltage Load percentage Battery charge level Overload Critical fault code screens |
| Interfaces/Ports | |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Battery Size | 12V |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 90% |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 43 BTU/h |
| Physical Characteristics | |
| Height | 6.30" (160.02 mm) |
| Width | 4.80" (121.92 mm) |
| Depth | 13.60" (345.44 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 14.30 lb (6486.37 g) |
| Miscellaneous | |
| Package Contents | OMNI700LCDT 700VA Tower UPS USB Cable Owner's Manual |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS in both VA and watts?
The Tripp Lite by Eaton OMNI700LCDT provides 700VA (volt-amperes) and 350W (watts) of power capacity. This rating determines how much equipment the UPS can support, with the wattage representing the actual power draw it can handle. For typical office setups, this capacity is sufficient for a desktop computer, monitor, and networking equipment.
How long will this UPS run on battery power during an outage?
At full load (350W), the UPS provides approximately 3 minutes of runtime, allowing for orderly system shutdowns. At half load (175W), runtime extends to about 10 minutes, which may be sufficient to ride through brief power interruptions. Actual runtime varies based on connected equipment load and battery condition.
How many devices can I connect to this UPS and what types of outlets does it have?
The UPS features six NEMA 5-15R outlets total. Four outlets provide both battery backup and surge protection for critical devices like computers and networking equipment. Two additional outlets offer surge protection only for peripherals that don't require battery backup. All outlets include surge protection with a 316-joule rating.
Does this UPS include automatic voltage regulation (AVR) and what does it do?
Yes, the OMNI700LCDT includes automatic voltage regulation (AVR). This feature corrects minor voltage fluctuations (sags and surges) without switching to battery power, which extends battery life and provides more consistent power to connected equipment. AVR handles common power quality issues that occur in many electrical environments.
What monitoring and management features does this UPS offer?
The front-panel LCD display shows real-time input and output voltage, load percentage, battery charge level, and system status. Audible alarms alert users to low battery, overload, fault conditions, and when battery replacement is needed. A USB (HID compliant) port provides basic connectivity for monitoring without requiring additional software drivers.
How long does it take to recharge the battery after use and is it replaceable?
The typical battery recharge time is 8 hours after a complete discharge. The UPS uses a standard 12V replaceable battery, allowing for maintenance and replacement when needed rather than requiring complete unit replacement. This design supports long-term use and reduces total cost of ownership.
