Tripp Lite by Eaton PDUMH20HVATNET Tripp Lite Switched ATS PDU - 10 Outlet Rack Mount - 16A 200-240V - 8x C13 & 2x C19
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

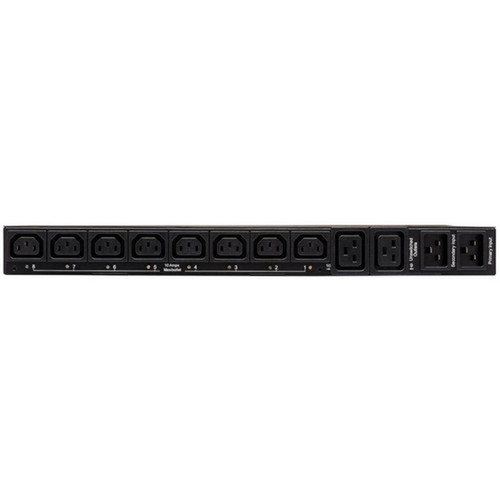

This switched ATS PDU operates on single-phase 200-240V power with a 230V AC input and adjustable output voltages ranging from 200V to 240V AC. The 16A current capacity supports demanding rack environments while the 10-outlet configuration includes 8 switched IEC C13 outlets and 2 unswitched IEC C19 outlets for high-power equipment.

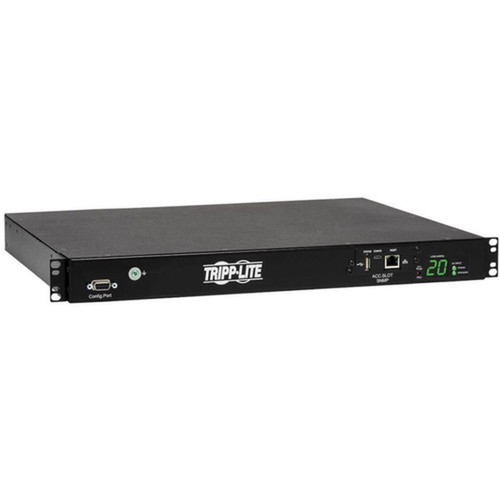

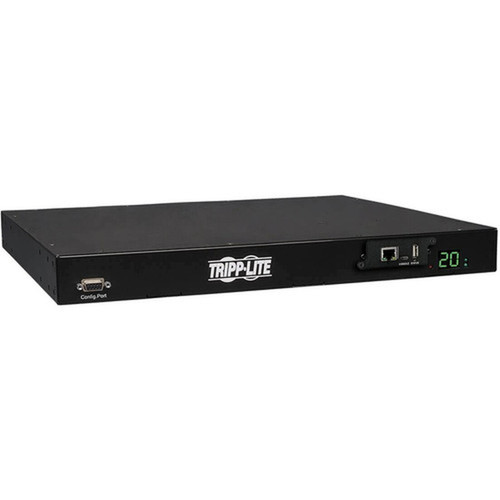

Network management capabilities are provided through the built-in LX Platform interface, offering features like outlet-level switching, power monitoring, and environmental sensors when connected. The front-panel includes a 2-digit visual current meter for at-a-glance load monitoring without requiring network access.
Relevant factors for this section include PDU Type, Receptacle Type, Receptacle Detail, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PDUMH20HVATNET combines power distribution with intelligent switching and redundancy features in a compact 1U form factor. The auto transfer switch enables seamless failover between two power sources, while individual outlet control allows for remote power cycling of specific devices without affecting other connected equipment.
Redundant Power Management
The integrated ATS connects to dual power sources, automatically switching to the secondary source if the primary fails, ensuring continuous operation for connected devices.
- Eliminates single point of power failure
- Automatic failover without manual intervention
- Supports non-redundant equipment with redundant power
Intelligent Network Control
Built-in LX Platform network interface provides web-based management for monitoring power consumption, controlling individual outlets, and configuring alerts.
- Remote outlet switching via web interface
- Real-time power monitoring
- Environmental sensor support
Deployment / Use Cases
This switched ATS PDU is engineered for environments requiring reliable power distribution with management capabilities and redundancy features. The 1U vertical mounting design optimizes rack space while providing accessible front-panel outlets and management interfaces.
Ideal for network racks containing switches, routers, servers, and storage devices that benefit from individual outlet control and power source redundancy. The mixed outlet configuration accommodates both standard IT equipment (C13) and high-power devices like blade servers or UPS units (C19).
Data Center Racks
Deploy in server racks to distribute power to multiple devices while enabling remote management and providing A/B power redundancy for critical infrastructure.
Network Equipment Closets
Power switches, routers, and firewalls with the ability to remotely reboot individual devices and monitor power consumption across the network infrastructure.
Physical Profile
Designed for standard 19-inch racks, this PDU occupies 1U of vertical space with dimensions of 1.72" (43.69 mm) height, 17.30" (439.42 mm) width, and 14.80" (375.92 mm) depth. The vertical mounting orientation positions all outlets and management interfaces on the front panel for easy access in crowded rack environments. The unit weighs approximately 10.30 lb (4672 g) and features a durable construction suitable for data center deployment.
- Width
- 17.30" (439.42 mm)
- Depth
- 14.80" (375.92 mm)
- Height
- 1U
- Weight
- 10.30 lb (4672 g)
What's in the Box
The package includes the PDUMH20HVATNET PDU unit along with comprehensive documentation for setup and operation.
Highlights
- Switched Auto Transfer Switch (ATS) PDU with 10 outlets
- 16A 200-240V single-phase power distribution
- 8 x IEC C13 switched outlets plus 2 x IEC C19 unswitched outlets
- Built-in LX Platform network interface for remote management
- 1U vertical rack-mount design for space-efficient deployment
- Auto transfer between dual power sources for redundancy
- Individual outlet control and power monitoring capabilities
- TAA compliant for government and educational procurement
- RoHS compliant environmental standards
- 2-year limited warranty for reliable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMH20HVATNET |
| Brand Name | Tripp Lite series |
| Product Model | PDUMH20HVATNET |
| Product Name | PDUMH20HVATNET PDU Switched ATS 200V - 240V 16A 10 Outlet |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 8 x IEC 60320 C13,2 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.72" (43.69 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 14.80" (375.92 mm) |
| Weight (Approximate) | 10.30 lb (4672 g) |
| Miscellaneous | |
| Package Contents | PDUMH20HVATNET PDU Switched ATS 200V - 240V 16A 10 Outlet User Manual with Warranty Information |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the purpose of the auto transfer switch in this PDU?
The auto transfer switch (ATS) enables connection to two independent power sources (A/B feeds). If the primary power source fails, the ATS automatically switches to the secondary source within milliseconds, providing continuous power to connected devices. This creates redundant power for equipment that doesn't have built-in dual power supplies, improving overall system reliability.
How many outlets does this PDU have and what types are they?
This PDU provides 10 total outlets with a mixed configuration. There are 8 IEC C13 outlets (standard for most IT equipment) that are individually switched and controllable, plus 2 IEC C19 outlets designed for higher-power devices. The C19 outlets are unswitched and provide continuous power, making them suitable for equipment that should not be power-cycled remotely.
What rack space does this PDU require for installation?
The PDUMH20HVATNET occupies 1U of vertical space in a standard 19-inch rack. It's designed for vertical mounting with dimensions of 1.72" height, 17.30" width, and 14.80" depth. The vertical orientation places all outlets and management interfaces on the front panel for easy access in rack environments.
What voltage range does this PDU support for input and output?
The PDU accepts 230V AC input power and provides adjustable output voltages from 200V to 240V AC. The specific output voltages supported are 200V, 208V, 220V, 230V, and 240V AC. This flexibility accommodates various power distribution scenarios in different regions and facility configurations.
What compliance certifications does this PDU have?
This PDU is TAA (Trade Agreements Act) compliant, making it suitable for U.S. government and educational procurement. It's also environmentally friendly with RoHS (Restriction of Hazardous Substances) compliance, restricting the use of specific hazardous materials. The product comes with a 2-year limited warranty and is manufactured in Taiwan.
What power capacity is listed for this UPS?
Power specifications help show where Tripp Lite series PDUMH20HVATNET PDU Switched ATS 200V - 240V 16A 10 Outlet - Switched - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V (PDUMH20HVATNET) fits best, including the kind of load level, electrical environment, and backup role it is intended to support.
