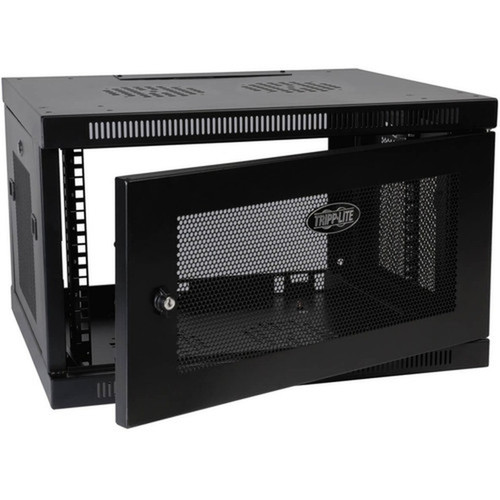

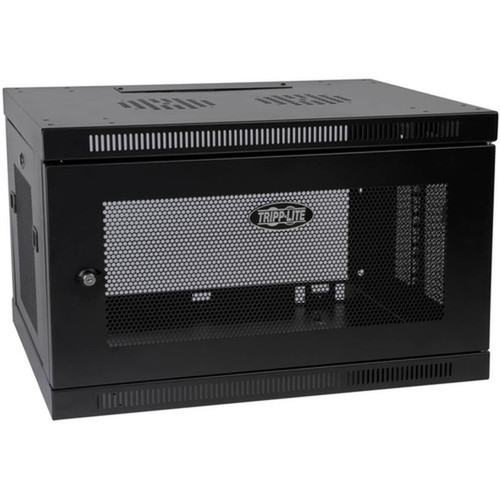

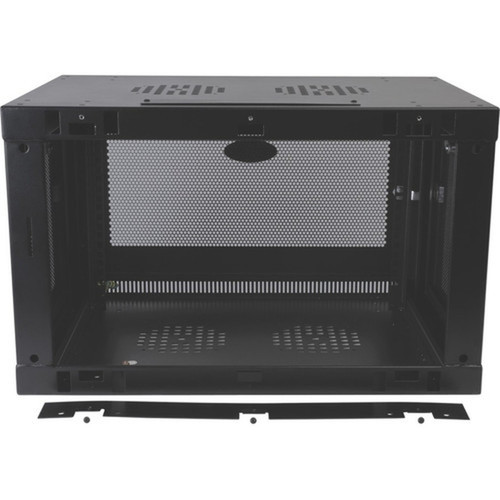

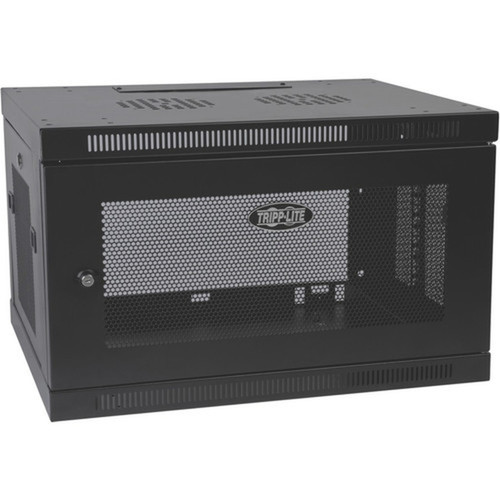

Tripp Lite series SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet - For Server - 6U Rack Height x 19" mm) (SRW6UDP)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
- 12 x M6 Screws
- 12 x M6 Cage Nuts
- 12 x M6 Cup Washers
- 12 x 12-24 Screws
- Removable Mounting Plate
- 3 x Mounting Plate Screws
- 2 x Keys
- Owner's Manual
Application/Usage: Server
Form Factor: Wall Mountable
Color Family: Black
Product Color: Black
Product Material: Steel
Maximum Weight Capacity: 200 lb (90718.47 g)
Static/Stationary Weight Capacity: 90.70 lb (41140.83 g)
Height: 14.57" (370.10 mm)
Width: 23.62" (599.90 mm)
Depth: 21.71" (551.40 mm)
Rack Height: 6U
Rack Width: 19" (482.60 mm)
Rack Depth: 20.50" (520.70 mm)
Weight (Approximate): 45.19 lb (20500 g)
Package Contents:
Assembly Required: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Maximum load capacity of 200 lb.
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 6U of 19 in. rack equipment up to 20.5 in. deep
- Mounts to wall or rolls on floor(with optional SRCASTER)
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRW6UDP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRW6UDP |
| Product Name | SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | Server |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Maximum Weight Capacity | 200 lb (90718.47 g) |
| Static/Stationary Weight Capacity | 90.70 lb (41140.83 g) |
| Height | 14.57" (370.10 mm) |
| Width | 23.62" (599.90 mm) |
| Depth | 21.71" (551.40 mm) |
| Rack Height | 6U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 20.50" (520.70 mm) |
| Weight (Approximate) | 45.19 lb (20500 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite 3U rack mount fan panel - 230V - 3 Fan - 230 V AC - 3U - 1570.9 gal/min (5946537.79 mL/min) - Black |
| SKU | SRXFAN3U |
| Sale Price | $280.95 |
| Product | Tripp Lite SR1UPANEL10 1U Blanking Panel Kit - 19" |
| SKU | SR1UPANEL10 |
| Sale Price | $81.95 |
| Product | Tripp Lite Cage nuts and bolts - 50 Each |
| SKU | SRCAGENUTS |
| Sale Price | $45.95 |
| Product | Tripp Lite SRCABLERING1U - Cable Panel - Black - 1U Rack Height x 19" Panel Width - Steel |
| SKU | SRCABLERING1U |
| Sale Price | $53.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
