Ubiquiti UVC-AI-Dome-W UniFi Protect Outdoor 4K 8MP Dome Camera - Color - 131.23 ft Infrared Night Vision - AI-Powered - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera is built around a 1/1.8" image sensor that supports full-color video capture. The camera employs an infrared cut-off filter to maintain accurate color reproduction during daytime operation and automatically switches to infrared illumination for night vision, achieving clear visibility up to 131.23 feet (40 meters). Advanced noise reduction technologies, including both 2D and 3D processing, minimize grain and artifacts in low-light conditions.
The camera's AI capabilities enable intelligent scene analysis, which can help reduce false alerts by distinguishing between relevant motion and environmental interference. Network communication is handled via a standard RJ-45 Ethernet port, supporting remote configuration and monitoring through the UniFi Protect software platform. For power flexibility, the unit accepts 42.5-57 V DC input, making it compatible with both PoE switches and direct DC power supplies.
Key Product Advantages
The UVC-AI-Dome-W combines high-resolution imaging with rugged construction and smart features to deliver reliable outdoor surveillance. Its AI-enhanced detection improves security efficiency by focusing attention on meaningful events.
Superior Image Clarity
Capture critical details with 8MP resolution and 4K video output, supported by a wide field of view that maximizes coverage area.
- 8 Megapixel sensor
- 4K UHD (3840x2160) recording
- 109.9° horizontal field of view
All-Weather Durability
The IP66-rated dome housing protects against dust and water jets, while the IK10 impact rating resists vandalism and physical damage.
- IP66 weatherproof
- IK10 vandal-resistant
- Aluminum alloy and polycarbonate construction
Extended Night Coverage
Infrared illuminators provide clear monochrome video in total darkness, covering distances up to 131 feet for comprehensive 24/7 monitoring.
- 131.23 ft (40 m) night vision
- Infrared illumination
- IR cut-off filter for daytime color
Deployment / Use Cases
This camera is ideal for commercial and institutional environments where high-definition video and environmental resilience are required. Its dome form factor and multiple mounting options allow for discreet installation on ceilings, walls, pendant mounts, or junction boxes, making it suitable for both new constructions and retrofit projects.
Common applications include monitoring building perimeters, parking garages, retail storefronts, school campuses, and industrial yards. The PoE support reduces wiring complexity in large-scale deployments, while the remote management capabilities enable centralized oversight from a security operations center. For businesses integrating with Ubiquiti's UniFi ecosystem, this camera offers seamless interoperability with other Protect devices for a unified security platform.
Commercial Perimeter Security
Deploy along building exteriors and fence lines to deter trespassing and document incidents with clear 4K evidence.
Parking Facility Monitoring
Install under eaves or on light poles to oversee vehicle traffic, license plates, and pedestrian activity day and night.

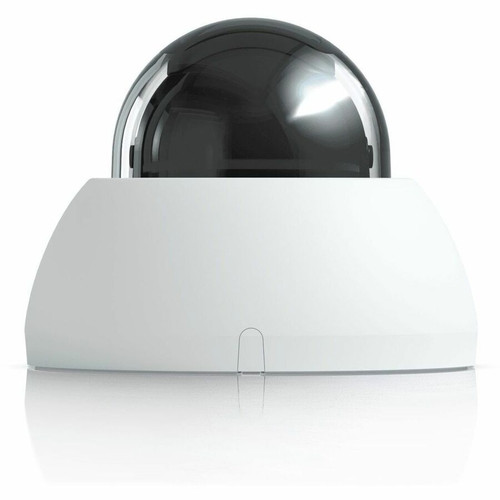

Physical Profile
The camera features a compact dome design with a 4.65-inch (118 mm) diameter, allowing for unobtrusive placement. Constructed from aluminum alloy and polycarbonate, the housing provides both durability and corrosion resistance. The unit weighs approximately 1.54 pounds (700 grams), facilitating easy installation on various surfaces. Multiple mounting types—including ceiling, wall, pendant, and junction box—offer flexibility to adapt to different architectural requirements.
- Weight
- 1.54 lb (700 g)
Highlights
- 8-megapixel 4K outdoor dome camera for high-definition surveillance
- AI-powered detection enhances accuracy and reduces false alerts
- Infrared night vision extends up to 131.23 feet (40 meters) in darkness
- IP66 weatherproof and IK10 vandal-resistant dome housing
- Power over Ethernet (PoE) support simplifies installation and power delivery
- Wide 134.1-degree diagonal field of view maximizes coverage area
- Built-in microphone for audio recording alongside video
- Supports local storage via memory card for flexible recording options
- Remote management enabled through Ubiquiti UniFi Protect platform
- Operates in extreme temperatures from -22°F to 122°F (-30°C to 50°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | UVC-AI-Dome-W |
| Brand Name | Ubiquiti |
| Product Line | UniFi Protect |
| Product Model | UVC-AI-DOME-W |
| Product Name | AI Dome |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Display & Graphics | |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Ethernet |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 10 W |
| Input Voltage | 42.5 V DC,57 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Product Material | Aluminum Alloy,Polycarbonate |
| Mount Type | Ceiling Mount,Wall Mount,Pendant Mount,Junction Box Mount |
| Form Factor | Dome |
| Durability | Weather Proof,Vandal Proof,Tamper Resistant |
| Diameter | 4.65" (118 mm) |
| Weight (Approximate) | 1.54 lb (700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Humidity (Non-condensing) | 10% |
| Maximum Operating Humidity (Non-condensing) | 90% |
| Miscellaneous | |
| Features | Built-in Microphone,SD Card Local Storage,White Balance,2D Noise Reduction,3D Noise Reduction,Factory Reset Button |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
FAQ
What is the maximum video resolution of the UVC-AI-Dome-W camera?
The camera records at a maximum resolution of 3840 x 2160 pixels, which is 4K Ultra HD. This high resolution ensures detailed video capture, making it easier to identify faces, license plates, and other critical details in surveillance footage. The 30 frames per second frame rate provides smooth motion playback.
How far does the night vision reach on this camera?
The infrared night vision effectively covers distances up to 131.23 feet (40 meters). This allows the camera to monitor large outdoor areas such as parking lots or perimeters in complete darkness, switching automatically to monochrome infrared mode while maintaining clear image quality.
Is this camera suitable for outdoor use in harsh weather?
Yes, the camera is designed for outdoor deployment with an IP66 ingress protection rating, meaning it is dust-tight and protected against powerful water jets. Combined with its IK10 impact resistance, the dome housing can withstand vandalism and severe weather conditions, making it reliable for year-round outdoor installation.
What power options are available for this camera?
The camera supports both Power over Ethernet (PoE) and direct DC power input. PoE allows for a single cable to provide both data and power, simplifying installation. The input voltage range is 42.5 to 57 V DC, with a maximum power consumption of 10 watts, ensuring energy-efficient operation.
Does this camera include AI features, and what do they do?
Yes, the camera is AI-powered, enabling intelligent video analytics. These features can enhance motion detection by distinguishing between humans, vehicles, and other objects, reducing false alarms caused by environmental factors like moving foliage or changing light conditions. This improves overall security monitoring efficiency.
What mounting options are supported by this dome camera?
The camera offers versatile mounting with support for ceiling, wall, pendant, and junction box installations. This flexibility allows it to be adapted to various architectural settings, whether for discreet ceiling mounting indoors or robust wall mounting outdoors, ensuring optimal positioning for surveillance coverage.
