Liebert GXT5-3KL630RT2UXL 3kVA 208V Online Double Conversion UPS - 2U Rack/Tower - Energy Star Certified
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS maintains consistent power quality by converting incoming AC to DC and then back to AC, isolating connected equipment from utility disturbances. The input plug is a NEMA L6-30P, with receptacle details including two NEMA L6-30R and two NEMA L6-15R outlets for flexible equipment connections.
The battery system uses valve-regulated, non-spillable lead-acid chemistry and supports hot-swappable replacement for minimal downtime. With one external battery cabinet, runtime extends significantly: up to 17 minutes at full load and 43.5 minutes at half load. Environmental sensors for leak detection, temperature, and humidity provide additional monitoring capabilities for sensitive installations.
Relevant factors for this section include Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Liebert GXT5 series combines robust power protection with practical deployment features. The intuitive display rotates automatically based on orientation, while the compact 2U design fits efficiently in crowded racks. High overload tolerance handles temporary surges without shutdown, protecting connected equipment during demanding conditions.
Zero Transfer Time Protection
Double conversion topology ensures seamless power continuity with no switching delay, critical for servers, storage, and networking gear.
Extended Runtime Scalability
Support for one external battery cabinet multiplies backup duration, offering flexibility for longer outages or higher load requirements.
Comprehensive Remote Management
Built-in serial, USB, and network ports enable integration with monitoring software and optional Vertiv RDU101 network cards for remote configuration.
Deployment / Use Cases
This UPS is specified for mission-critical equipment and data center applications where power disturbances could cause data loss, hardware damage, or operational disruption. The online double conversion design makes it suitable for environments with unstable utility power or sensitive electronic loads.
The rack/tower flexibility allows installation in server rooms, network closets, or equipment cabinets. The included 4-post fixed rail kit and tower stand support both mounting options without additional hardware. Remote management capabilities enable IT staff to monitor status and configure settings from a central console.
Data Center Rack Integration
Install this 2U UPS in standard server racks to protect blade servers, network switches, and storage arrays. The 208V input matches common three-phase power distribution in larger facilities.
Critical Infrastructure Support
Deploy for medical imaging systems, industrial control panels, or telecommunications equipment where power quality and uptime are non-negotiable.
Physical Profile
The Liebert GXT5-3KL630RT2UXL measures 3.35" (85 mm) in height, 16.93" (430 mm) in width, and 21.26" (540 mm) in depth, occupying 2U of rack space. The 65.10 lb weight reflects robust construction with internal batteries. The rack/tower form factor includes mounting hardware for both installations, while the compact dimensions optimize floor space in equipment rooms.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.35" (85 mm), 16.93" (430 mm), 21.26" (540 mm), 65.10 lb (29528.86 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 16.93" (430 mm)
- Depth
- 21.26" (540 mm)
- Height
- 3.35" (85 mm)
- Weight
- 65.10 lb (29528.86 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes the GXT5 3kVA 208V UPS unit, a 4-post fixed rail kit for rack mounting, a tower stand for floor placement, a USB cable for local management, a quick start guide, and a safety instruction manual.
Highlights
- 3kVA/3kW double conversion online UPS with pure sine wave output
- Zero transfer time ensures uninterrupted power for critical loads
- 2U rack/tower design with included mounting hardware
- High power factor (0.9-1.0) maximizes usable power capacity
- Hot-swappable, valve-regulated lead-acid batteries
- Full-color graphic LCD with gravity-sensing orientation
- Serial, USB, and network ports for remote management
- Energy Star 2.0 certified for reduced operating costs
- Supports one external battery cabinet for extended runtime
- Environmental sensors monitor temperature, humidity, and leaks
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5-3KL630RT2UXL |
| Brand Name | Vertiv Liebert |
| Product Series | GXT |
| Product Name | GXT5 3kVA 208V UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30R,NEMA L6-15R |
| Receptacle Detail | 2 x NEMA L6-30R,2 x NEMA L6-15R |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Mission Critical Equipment,Data Center |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Input Voltage | 208 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 50 Hz |
| Waveform Type | Sine Wave |
| Utility (AC) Mode Overload | >200% for 250ms 150-200% for 2 seconds 125-150% for 10 seconds 105-125% for 15 seconds |
| Controls/Indicators | |
| Status Indicators | Full Color Graphic LCD / Diagnostic LEDs: Alarm Fault Indication |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Number of External Battery Cabinets | 1 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 17 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 43.50 Minute |
| Hot Swappable | Yes |
| Environmental Conditions | |
| Environmental Sensors | Leak Detection Sensor,Temperature Sensor,Humidity Sensor |
| Physical Characteristics | |
| Height | 3.35" (85 mm) |
| Width | 16.93" (430 mm) |
| Depth | 21.26" (540 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 65.10 lb (29528.86 g) |
| Miscellaneous | |
| Package Contents | GXT5 3kVA 208V UPS 4 Post Fixed Rail Kit Tower Stand USB Cable Quick Start Guide Safety Instruction Manual |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Opt. 2 year extension |
User Manual
FAQ
What is the power capacity of this Liebert UPS?
This Liebert GXT5-3KL630RT2UXL provides 3 kVA (3000 VA) and 3 kW (3000 watts) of power capacity. It operates at 208V input voltage with output adjustable between 200-240V AC, making it suitable for commercial and data center environments where higher voltage power distribution is standard.
How long does the battery last during a power outage?
With the internal batteries alone, runtime is approximately 3 minutes at full load (3 kW) and 9 minutes at half load (1.5 kW). When connected to one external battery cabinet, runtime extends to 17 minutes at full load and 43.5 minutes at half load, providing flexibility for longer outages or graceful shutdown procedures.
What type of outlets does this UPS have?

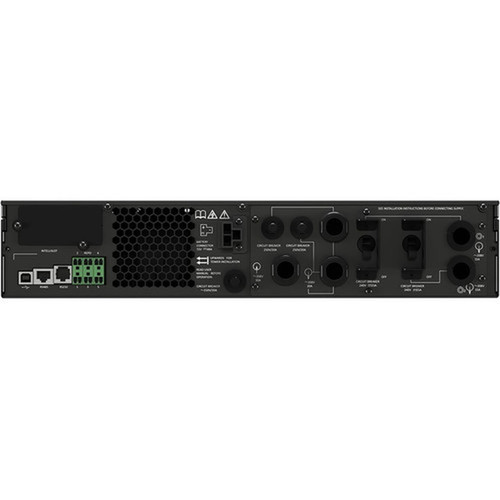

The unit includes two NEMA L6-30R and two NEMA L6-15R receptacles. These locking outlets are designed for higher-power equipment commonly found in data centers and industrial settings. The input cord is a 10-foot NEMA L6-30P plug for connection to 208V power sources.
Can this UPS be mounted in a server rack?
Yes, this is a 2U rack/tower UPS that includes a 4-post fixed rail kit for standard 19-inch server rack installation. It measures 3.35" high, occupying two rack units, with a depth of 21.26". The package also includes a tower stand for standalone floor deployment if rack space is unavailable.
What management options are available for this UPS?
The UPS includes serial, USB, and network (RJ-45) ports for local and remote management. These interfaces allow integration with power management software, SNMP monitoring, and optional Vertiv RDU101 network communication cards. The full-color graphic LCD provides local status display with diagnostic indicators for alarms and faults.
Is the battery user-replaceable?
Yes, the valve-regulated lead-acid batteries are hot-swappable, meaning they can be replaced without shutting down the UPS or disconnecting connected equipment. This feature minimizes downtime during battery maintenance and extends the system's operational life in continuous-use environments.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
