Liebert PSI5-2200RT120 2200VA Line Interactive UPS - 1920W Rack/Tower - AVR - Pure Sine Wave - 120V
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS delivers 1920 watts of usable power with a 0.9 output power factor, maximizing efficiency for connected loads. Input voltage accepts a wide range from 75V to 146V AC, while output stabilizes at 100V, 110V, 115V, 120V, or 125V AC as needed. The pure sine wave output ensures compatibility with active PFC power supplies found in modern servers and networking equipment.
Battery runtime provides 4 minutes at full load and extends to 13 minutes at half load, giving adequate time for graceful shutdowns or transfer to generator power. The hot-swappable battery design allows for maintenance without system downtime. An RJ-45 port supports optional communication cards for remote monitoring and management via network interfaces.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
Automatic Voltage Regulation
AVR corrects minor voltage fluctuations without switching to battery, extending battery life and reducing wear during common grid variations.
- Reduces battery cycles
- Maintains stable output
- Handles brownouts and overvoltages
Pure Sine Wave Output
Delivers clean, utility-grade power that prevents damage to sensitive electronics and ensures reliable operation of servers, storage, and networking hardware.
- Compatible with active PFC
- Prevents equipment damage
- Minimizes data corruption risk
Flexible Installation

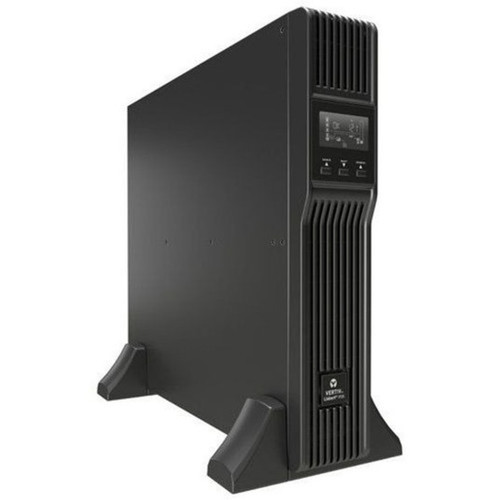

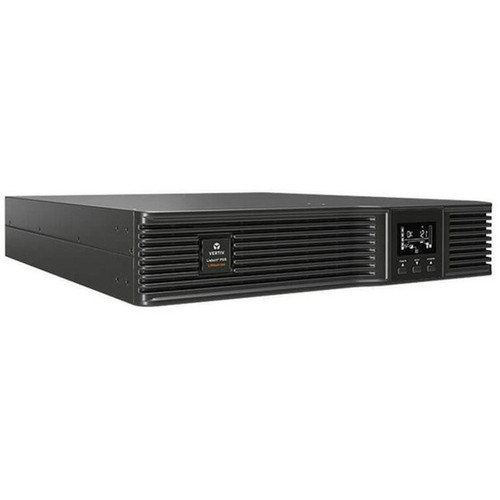

The rack/tower design includes removable tower stands for desktop use and integrates seamlessly into standard 19-inch racks with a compact 2U height.
- Includes tower stands
- 2U rack footprint
- Tool-less installation options
Deployment / Use Cases
The PSI5-2200RT120 is ideal for protecting critical infrastructure where power quality and uptime are essential. Its 1920W capacity and multiple outlet types support mixed equipment loads in small to medium server environments.

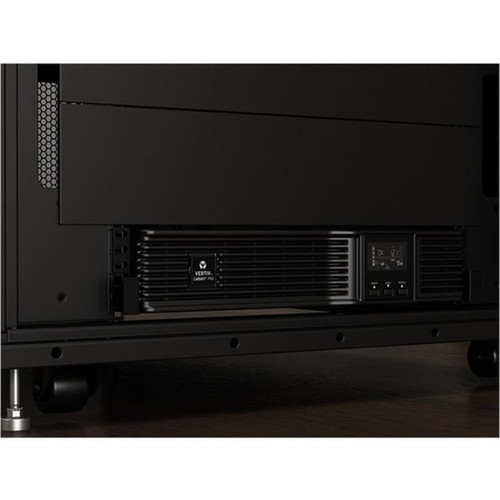

Common deployments include rackmount installations in data closets alongside switches and routers, or tower placement under desks for workstations and point-of-sale systems. The unit's runtime and recharge characteristics make it suitable for locations with frequent short-duration outages or as a bridge to generator power.
Server & Network Backup
Provides backup power for rackmount servers, network switches, storage arrays, and security appliances during outages, with enough runtime for controlled shutdowns.
VoIP & Communication Systems
Ensures uninterrupted operation of VoIP phones, multimedia terminal adapters, and network bridges, maintaining communication during power events.
Physical Profile
The UPS measures 3.5 inches in height, 17.2 inches in width, and 24.8 inches in depth, occupying a standard 2U rack space. The steel construction includes integrated handles for easy transport and mounting. The front panel features a rotatable LCD display that can be oriented for optimal viewing in either rack or tower orientation. Ventilation is designed for adequate airflow in enclosed racks.
- Width
- 17.20" (436.88 mm)
- Depth
- 24.80" (629.92 mm)
- Height
- 3.50" (88.90 mm)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 2200VA/1920W line-interactive UPS with AVR for voltage stabilization
- Pure sine wave output compatible with active PFC servers and networking gear
- Flexible rack/tower design with included stands for desktop or 19-inch rack mounting

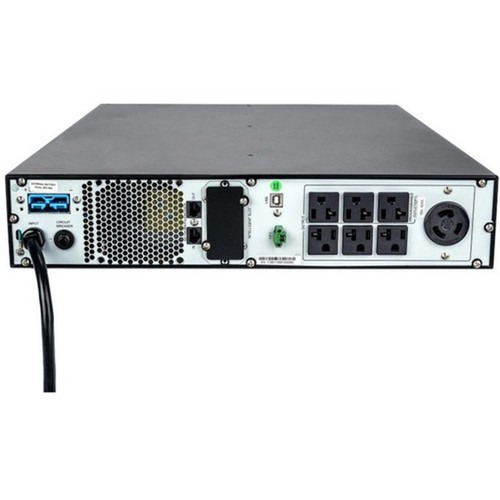

- Six NEMA outlets (4×5-15R, 2×5-20R, 1×L5-30R) for mixed equipment loads
- Rotatable LCD display shows runtime, load, and status in any orientation
- Hot-swappable battery allows maintenance without downtime
- 4-hour typical battery recharge time minimizes recovery period
- RJ-45 port supports optional communication cards for remote management
- Energy Star certified for energy efficiency
- 2-year limited warranty from Vertiv Liebert
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | PSI5-2200RT120 |
| Brand Name | Vertiv Liebert |
| Product Series | PSI5 |
| Product Name | PSI5 1920VA/1920W, 120VAC, Rack-tower |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |

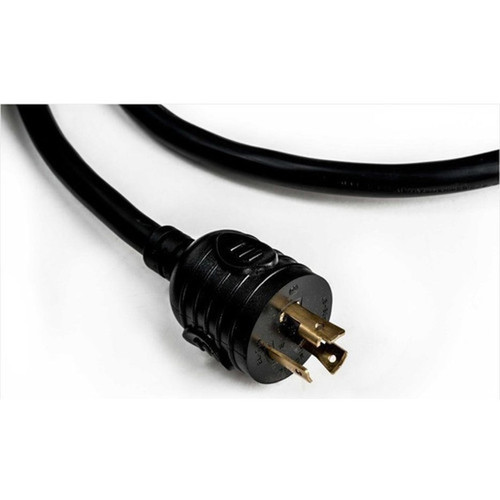

| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-15R,NEMA 5-20R,NEMA L5-30R |
| Receptacle Detail | 4 x NEMA 5-15R,2 x NEMA 5-20R,1 x NEMA L5-30R |
| Number of Battery & Surge Outlets | 6 |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Server,Network Closet,Security System,Network Workstation,Large Network Peripheral,Storage Device,VoIP,Multimedia Terminal Adapter,POS Terminal,IT System,Business,Critical System,Network Bridge,Electronic Device |
| Power Description | |
| Load Capacity (VA) | 1.92 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC |
| Waveform Type | Pure Sine Wave |
| Controls/Indicators | |
| Status Indicators | LCD Display |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 24.80" (629.92 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Miscellaneous | |
| Package Contents | PSI5 1920VA/1920W, 120VAC, Rack-tower USB Type A to USB Type B Cable, 1.8 Meter (6 ft) In Length Printed Quick Start Guide with Safety Instructions CD Tower Support Stands 5-20 Adapter |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the actual power capacity in watts for this 2200VA UPS?
The Liebert PSI5-2200RT120 delivers 1920 watts of real power capacity with a 0.9 output power factor. This means it can support equipment drawing up to 1920W, which is typical for servers, storage devices, and networking gear in small to medium deployments.
Can this UPS be used in both rackmount and tower configurations?
Yes, the PSI5-2200RT120 is designed for dual deployment. It includes removable tower stands for desktop use and fits standard 19-inch racks with a 2U height. The form factor flexibility makes it suitable for server rooms, network closets, or under-desk installations.
What types of outlets are provided on this UPS?
This unit offers six NEMA outlets: four NEMA 5-15R (standard 15A), two NEMA 5-20R (20A), and one NEMA L5-30R (30A locking). This variety supports different plug types for servers, switches, and larger peripherals without needing additional adapters in most cases.
How long does the battery last during a power outage?
At full load (1920W), the battery provides approximately 4 minutes of runtime. At half load (960W), runtime extends to about 13 minutes. This gives sufficient time for graceful shutdowns of connected equipment or transition to backup generator power.
Does this UPS support remote monitoring and management?
Yes, an RJ-45 port on the rear panel allows installation of optional communication cards for network connectivity. This enables remote monitoring of power status, load levels, and battery health via SNMP, web interface, or management software, though the card is sold separately.
What is the warranty coverage for this Liebert UPS?
Vertiv Liebert provides a 2-year limited warranty on the PSI5-2200RT120, covering defects in materials and workmanship. The warranty includes the UPS unit itself, with separate terms typically applying to the battery. Always retain proof of purchase for warranty service claims.
What power capacity is listed for this UPS?
The listed power specification is 1.92 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
