Viewsonic CDE6512 64.5" 4K UHD Digital Signage Display - 3840 x 2160 LCD - Android 9.0 - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The ViewSonic CDE6512 is a 64.5-inch 4K UHD digital signage display engineered for commercial environments where visual impact and reliable operation are essential. This large-format LCD display delivers 3840×2160 resolution with Direct LED backlighting, producing sharp, consistent imagery from corner to corner. Built with an integrated Android 9.0 platform, the CDE6512 operates as a standalone signage solution, eliminating the need for external media players in many deployments.
Designed for 24/7 operation, the display features a robust 290 cd/m² brightness level suitable for well-lit retail spaces, lobbies, and corporate settings. Its wall-mountable design, VESA-compatible mounting points, and relatively slim 3.17-inch depth allow for flexible installation in space-constrained areas. The package includes essential mounting hardware and cables, streamlining setup for integrators and IT teams.
Technical Overview
At the core of the CDE6512 is a quad-core ARM Cortex A53 processor clocked at 1.50 GHz, paired with 2 GB of DDR4 SDRAM. This compute platform handles the Android 9.0 Pie operating system and signage applications smoothly, supporting content scheduling, remote management, and interactive features when used with compatible software. The Mali-G52 MP2 graphics controller drives the 4K panel at a 2160p scan format, ensuring fluid motion and detailed image reproduction.
Connectivity is comprehensive for a signage display, featuring dual HDMI inputs, a USB 2.0 port, and serial (RS232) control for integration with external systems. Network options include wired Ethernet, 802.11 Wi-Fi, and Bluetooth, enabling both local and cloud-based content updates. The display supports a dynamic contrast ratio of 5,000:1 and accepts a wide input voltage range of 120–230 V AC, accommodating various regional power standards.
Key Product Advantages
The CDE6512 combines a large, high-resolution screen with an integrated Android compute module, reducing hardware footprint and simplifying content management. Its commercial-grade construction and connectivity suite make it a versatile choice for digital signage networks.
All-in-One Signage Solution
With Android 9.0 pre-installed, this display can run signage apps directly, avoiding the cost and complexity of external media players. The built-in Wi-Fi and Ethernet allow for remote content updates and monitoring.
- Eliminates external player hardware
- Supports remote management via network
- Runs Android-based signage apps natively
Commercial Durability & Compliance
Designed for continuous operation in public spaces, the display meets Energy Star efficiency standards and RoHS environmental regulations. The three-year limited warranty provides long-term assurance for business deployments.
- Rated for 24/7 operation
- Energy Star certified for lower power use
- RoHS compliant for reduced hazardous materials
Deployment / Use Cases
This display is ideal for environments where large, dynamic visuals enhance customer engagement or convey critical information. Its 64.5-inch size and 4K clarity make it effective for high-traffic areas where content must be visible from a distance.
Common installations include retail storefronts for promotional videos, corporate lobbies for company announcements and wayfinding, hospitality venues for event schedules and menus, and educational facilities for interactive learning displays. The wall-mount capability allows for secure placement above counters, in hallways, or as part of a video wall array with proper bezel compensation.
Retail & Hospitality
Showcase product videos, promotions, and menus in high foot-traffic zones. The bright 290 cd/m² screen remains readable under store lighting.
Corporate & Education
Display announcements, schedules, and interactive content in lobbies, conference rooms, or classrooms. Network connectivity enables centralized content management across multiple displays.
Localization and Operating System
The ViewSonic CDE6512 ships with Android 9.0 Pie as its native operating system, providing a ready-to-use platform for digital signage applications without requiring separate licensing or external media players. This Android-based environment supports a wide range of commercial signage apps available through the Google Play Store, enabling content scheduling, remote management, and interactive features directly on the display. The quad-core ARM Cortex A53 processor, running at 1.50 GHz, and 2 GB of DDR4 SDRAM ensure smooth performance for typical signage workloads, handling video playback, web content, and dynamic updates efficiently.
While the display does not include specific regional language packs or keyboard localizations in the standard package, Android 9.0 offers built-in support for multiple languages and input methods that can be configured during setup. This flexibility allows the CDE6512 to be deployed in diverse geographic locations, from North American retail environments to international corporate offices. The operating system’s open architecture also facilitates integration with third-party content management systems (CMS) and network monitoring tools, making it a versatile choice for centralized digital signage networks across different regions.
Android 9.0 for Signage
The pre-installed Android OS eliminates the need for external computers or dedicated media players, reducing hardware costs and simplifying maintenance. It supports remote updates and management via Wi-Fi or Ethernet, allowing IT teams to control content across multiple displays from a single interface.
Physical Profile

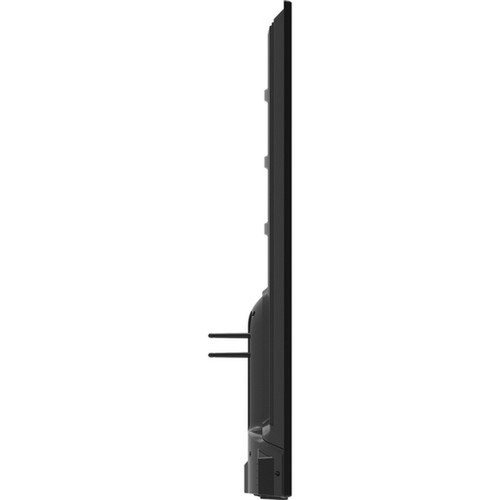

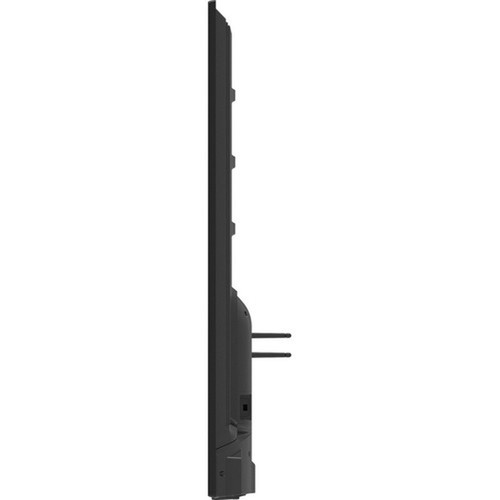

The CDE6512 features a sleek, flat-panel design with minimal bezels, measuring 57.54 inches wide, 33.20 inches tall, and 3.17 inches deep. Weighing 44.75 pounds, it is manageable for two-person installation teams. The included wall-mount screws and VESA compatibility support secure mounting on most commercial brackets. Its depth allows for flush mounting in recessed spaces or on wall arms, maintaining a clean aesthetic in professional settings.
- Width
- 57.54" (1461.40 mm)
- Depth
- 3.17" (80.40 mm)
- Height
- 33.20" (843.20 mm)
- Weight
- 44.75 lb (20300 g)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- 64.5-inch 4K UHD (3840×2160) LCD display for large-format signage
- Integrated Android 9.0 Pie OS eliminates need for external media player
- 290 cd/m² brightness ensures visibility in well-lit commercial spaces
- Wall-mountable design with VESA compatibility for flexible installation
- Dual HDMI inputs, USB, Ethernet, Wi-Fi, and Bluetooth connectivity
- Quad-core Cortex A53 processor with 2 GB DDR4 RAM for smooth performance
- Direct LED backlight provides consistent corner-to-corner image quality
- Energy Star certified and RoHS compliant for eco-friendly operation
- Includes remote, cables, and mounting hardware for quick setup
- 3-year limited warranty for long-term deployment confidence
Specifications
| Specifications | |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | CDE6512 |
| Brand Name | ViewSonic |
| Product Model | CDE6512 |
| Product Name | CDE6512 Digital Signage Display |
| Product Type | Digital Signage Display |
| Processor & Chipset | |
| Processor Model | Cortex A53 |
| Processor Speed | 1.50 GHz |
| Processor Core | Quad-core (4 Core) |
| Memory | |
| Standard Memory | 2 GB |
| Memory Technology | DDR4 SDRAM |
| Display & Graphics | |
| Number of Screens | 1 |
| Viewable Screen Size | 64.50" (1638.30 mm) |
| Display Screen Type | LCD |
| Display Resolution | 3840 x 2160 |
| Backlight Technology | Direct LED |
| Graphics Controller Model | G52MP2 |
| Video | |
| Scan Format | 2160p |
| Dynamic Contrast Ratio | 5,000:1 |
| Brightness | 290 cd/m² |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of HDMI Inputs | 2 |
| Software | |
| Operating System | Android 9.0 Pie |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Mount Type | Wall Mountable |
| Height | 33.20" (843.20 mm) |
| Width | 57.54" (1461.40 mm) |
| Depth | 3.17" (80.40 mm) |
| Weight (Approximate) | 44.75 lb (20300 g) |
| Miscellaneous | |
| Package Contents | CDE6512 Digital Signage Display Remote control Batteries Quick Start Guide Power cable HDMI Cable Wall Mount Screws RS232 cable |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What screen size is listed?
It features a display specification of 64.50" (1638.30 mm), giving you clear visuals for work and media use.
What resolution or display format is specified?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
The listed power specification is 290 cd/m², which helps position the unit for the right load level and installation role.
What input or connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
Does the display support VESA mounting or adjustment features?
It features a display specification of Wall Mountable, giving you clear visuals for work and media use.
What panel or display technology is mentioned?
It features a display specification of LCD, giving you clear visuals for work and media use.
