Viewsonic LDM231-251 LDM231-251231" All-in-One Direct View LED Display - 4K UHD - Rockchip RK3399 - 4 GB DDR4 - Android 9.0 - 600 cd/m² - 60 W Audio
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

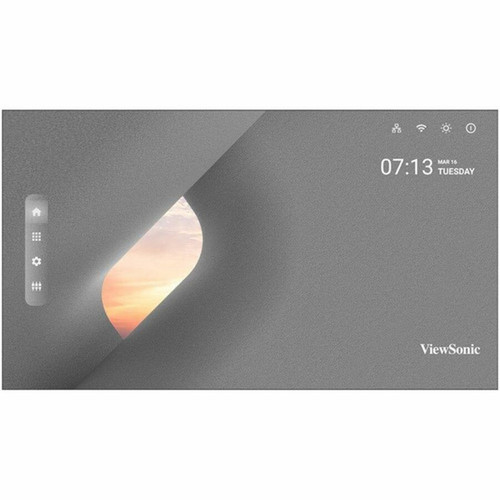

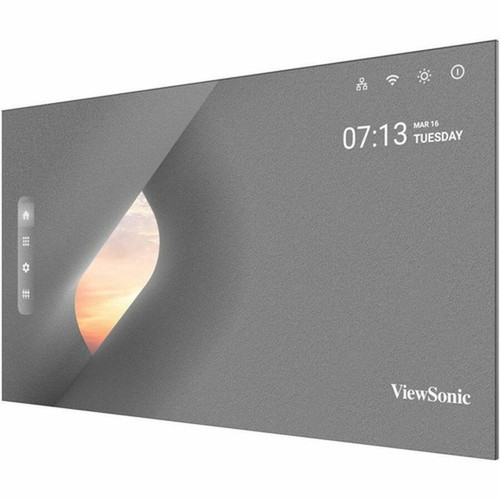

The ViewSonic LDM231-251 is a massive 231-inch All-in-One Direct View LED display designed for high-impact collaboration and digital signage in large venues. This integrated solution combines a professional-grade 4K UHD LCD panel with a built-in Rockchip RK3399 compute module, eliminating the need for external media players or PCs. Its direct-view LED backlight technology delivers 600 cd/m² brightness and wide 170-degree viewing angles, ensuring clear visibility even in brightly lit environments.
Engineered for permanent installation, the display features an ultra-narrow 0.24-inch bezel for a seamless multi-screen canvas. The integrated Android 9.0 operating system provides a familiar platform for app deployment, content management, and wireless screen sharing. With 4 GB of DDR4 memory and 32 GB of flash storage, the system handles demanding multimedia content and applications directly on the display, streamlining the entire AV setup.
Technical Overview
This collaboration display is built on a robust hardware platform centered on the Rockchip RK3399 system-on-chip. The processor manages the 4K video pipeline, the Android OS, and the extensive I/O simultaneously. The display itself is an LCD panel illuminated by a direct-view LED backlight array, achieving a high 600 cd/m² brightness level suitable for retail, corporate lobbies, and command centers.
Connectivity is comprehensive, featuring wired Gigabit Ethernet, dual-band Wi-Fi, and Bluetooth for network and peripheral attachment. The rear I/O panel includes seven USB ports for connecting storage drives, peripherals, or touch overlays, plus HDMI for external video sources, a serial port for control systems, and audio line-out. The integrated 60-watt stereo speaker system provides ample audio for medium to large rooms without external amplifiers.
Visual Performance
The 4K UHD resolution on a 231-inch canvas offers exceptional detail for presentations, video conferencing, and digital content. The 170-degree horizontal and vertical viewing angles maintain color and contrast for audiences viewing from the sides.
- 16:9 Aspect Ratio
- 2160p Scan Format
- Wide Viewing Angles
Key Product Advantages
The primary advantage of this display is its unified design, which consolidates critical AV components. The embedded Android computer eliminates the clutter and compatibility issues of external set-top boxes or PCs. The ultra-narrow bezel is critical for video wall applications, minimizing the visual gap between adjacent displays to create a near-seamless large-format canvas.
Deployment / Use Cases
The ViewSonic LDM231-251 is engineered for professional environments that require a large, always-on visual interface with integrated intelligence. Its high brightness and robust construction make it suitable for 24/7 operation in public spaces.

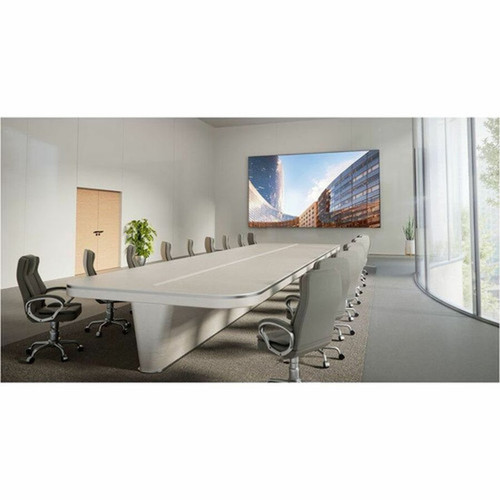

A primary use case is corporate and higher education collaboration spaces, where the display serves as a central hub for video conferences, presentations, and interactive whiteboarding via Android apps. The wireless connectivity allows users to share content directly from laptops or mobile devices without physical cables.
Digital Signage & Wayfinding
Deploy in airport terminals, shopping malls, or corporate headquarters for dynamic advertising, informational displays, or interactive directories. The Android OS supports a wide range of content management system (CMS) applications for scheduling and remote updates.
- High-Impact Advertising
- Remote Content Management
- 24/7 Reliability
Command & Control Centers
Use in security operation centers, broadcast studios, or utility monitoring rooms to visualize data dashboards, network maps, and live video feeds. The serial port enables integration with room control systems for automated power and input switching.
- Data Visualization
- System Integration
- Large-Format Canvas
Localization and Operating System
The display ships with Android 9.0 Pie as its core operating system. This provides access to the Google Play Store for installing a vast ecosystem of business, utility, and signage-specific applications. The OS handles the device's networking, storage, and application runtime, offering a flexible platform for custom software development or off-the-shelf app deployment.
As an Android-based device, it supports standard touch and pointer input methods if a compatible touch overlay is added via USB. The system is configured for standard North American power input (120V AC) and includes RoHS environmental compliance.
Physical Profile
This is a large-format, fixed-installation display with substantial physical dimensions. The panel itself measures approximately 113.39 inches in height, 16.84 feet in width, and is remarkably slim at just 1.22 inches deep. The total weight is approximately 981 pounds, necessitating professional installation and a structurally sound mounting solution.
The package includes a wall mount (LD-MK-004) designed to support this weight and size. The ultra-thin 0.24-inch bezel is a key design feature for multi-display arrays, allowing tiled installations with minimal visible grid lines. The display is intended for permanent mounting in boardrooms, lobbies, auditoriums, or retail environments.
- Width
- 0.24" (6 mm)
- Depth
- 1.22" (31 mm)
- Height
- 113.39" (2880 mm)
- Weight
- 981.06 lb (445000 g)
What's in the Box
The display ships as a complete kit for wall mounting and initial setup.
Highlights
- 231-inch All-in-One Direct View LED display with integrated Android computer.
- 4K UHD (3840 x 2160) resolution with 600 cd/m² brightness for high-impact visuals.
- Powered by a Rockchip RK3399 processor with 4 GB DDR4 RAM and 32 GB storage.
- Runs Android 9.0 Pie OS for app deployment and wireless screen sharing.
- Integrated 60-watt stereo audio system with two speakers.
- Comprehensive connectivity: 7x USB, HDMI, Gigabit Ethernet, Wi-Fi, Bluetooth, Serial.
- Ultra-narrow 0.24-inch bezel ideal for video wall and seamless multi-screen setups.
- Includes wall mount, remote, and cables for straightforward professional installation.
- Designed for 24/7 operation in digital signage, collaboration, and control room applications.
- Backed by a 3-year limited warranty and is RoHS compliant.
Specifications
| Specifications | |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | LDM231-251 |
| Brand Name | ViewSonic |
| Product Model | LDM231-251 |
| Product Name | 231" All-in-One Direct View LED Display |
| Packaged Quantity | 1 |
| Product Type | Collaboration Display |
| Display & Graphics | |
| Display Screen Type | LCD |
| Backlight Technology | Direct View LED |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 6,500:1 |
| Brightness | 600 cd/m² |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Processor & Chipset | |
| Processor Manufacturer | Rockchip |
| Processor Model | RK3399 |
| Memory | |
| Standard Memory | 4 GB |
| Storage | |
| Flash Memory Capacity | 32 GB |
| Audio | |
| Speakers | Yes |
| Number of Speakers | 2 |
| RMS Output Power | 60 W |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 7 |
| USB | Yes |
| Network (RJ-45) | Yes |
| Audio Line Out | Yes |
| Serial | Yes |
| Software | |
| Operating System Platform | Android |
| Operating System | Android 9.0 Pie |
| Power Description | |
| Input Voltage | 120 V AC |
| Power Consumption | 4124 W |
| Physical Characteristics | |
| Bezel Width | 0.24" (6 mm) |
| Height | 113.39" (2880 mm) |
| Width | 16.84 ft (5134 mm) |
| Depth | 1.22" (31 mm) |
| Weight (Approximate) | 981.06 lb (445000 g) |
| Miscellaneous | |
| Package Contents | 231" All-in-One Direct View LED Display 1 x Wall Mount 1 x Remote Control 1 x Power Cord 1 x LAN Cable 1 x IR Extender 1 x Quick Setup Guide 1 x LD-MK-004 |
| Energy Star | No |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the screen size and resolution of the ViewSonic LDM231-251?
The ViewSonic LDM231-251 features a massive 231-inch diagonal screen with a 4K Ultra HD resolution of 3840 x 2160 pixels. This combination provides an expansive canvas with exceptional detail, making it suitable for large venue presentations, digital signage, and video conferencing where image clarity and size are critical.
Does this display have a built-in computer or require an external source?
Yes, this is an all-in-one display with an integrated computer. It contains a Rockchip RK3399 processor, 4 GB of DDR4 memory, and 32 GB of flash storage, and it runs the Android 9.0 operating system. This eliminates the need for a separate media player or PC for basic functionality, though external HDMI sources can still be connected.
What audio capabilities does the display have?
The display includes an integrated stereo audio system with two speakers and a total RMS output power of 60 watts. This built-in audio is sufficient for filling medium to large rooms with sound for presentations, videos, or conference calls, reducing the need for external sound systems in many deployment scenarios.
What connectivity options are available on the LDM231-251?
Connectivity is extensive. It includes wired Gigabit Ethernet (RJ-45), dual-band Wi-Fi, and Bluetooth for networking. Physical ports consist of seven USB ports for peripherals and storage, one HDMI input for external video sources, an audio line-out, and a serial port for integration with control systems like Crestron or AMX.
Is this display suitable for creating a video wall?
Yes, its ultra-narrow 0.24-inch (6 mm) bezel makes the LDM231-251 an excellent candidate for video wall installations. When tiled with identical units, the narrow bezels minimize the visible grid between displays, creating a more seamless and immersive large-format visual experience for digital signage or control room applications.
What is included in the box for installation?
The package includes all essential hardware for a wall-mounted installation: the 231-inch All-in-One Direct View LED Display itself, a compatible wall mount (model LD-MK-004), a remote control for operation, a power cord, a LAN cable, an IR extender for remote sensor placement, and a quick setup guide to assist with initial configuration.
