Viewsonic TD2465 23.8" Full HD Touchscreen Monitor - Projected Capacitive 10-Point Multi-Touch - VA Panel - 250 cd/m² - VESA Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The ViewSonic TD2465 is a professional-grade 23.8-inch Full HD touchscreen monitor engineered for interactive commercial and industrial environments. It combines a high-clarity VA panel with robust projected capacitive touch technology, supporting 10 simultaneous touchpoints for intuitive multi-user or multi-gesture operation.
Designed with durability and deployment flexibility in mind, the monitor features a 7H hardness glass surface to resist scratches and a comprehensive set of connectivity options including HDMI, DisplayPort, VGA, and a built-in 3-port USB hub. Its 250 cd/m² brightness and wide 178° viewing angles ensure consistent, vivid visuals from various positions, making it suitable for point-of-sale, digital signage, kiosk, and collaborative workspace applications.
Relevant factors for this section include Screen Size Class, Viewable Screen Size, Screen Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
At the core of the TD2465 is a 23.8-inch viewable Vertical Alignment (VA) panel delivering Full HD 1920 x 1080 resolution. The panel provides a native contrast ratio of 3,000:1, enhanced by a dynamic contrast ratio of 20,000,000:1, for deep blacks and clear image differentiation. Color reproduction covers 102% of the sRGB gamut and 72% NTSC, supporting 16.7 million colors for accurate and lifetail visuals.
The touch interface utilizes projected capacitive technology, enabling precise input with bare fingers or thin gloves. With a 10-point multi-touch capability, it supports complex gestures and multiple simultaneous interactions. The monitor operates with a 7 ms response time and a vertical refresh rate of 50-75 Hz, ensuring smooth touch response and reduced motion blur for dynamic content.
Relevant factors for this section include Screen Size Class, Viewable Screen Size, Screen Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This monitor stands out in commercial touchscreen applications by merging robust construction with versatile performance features. Its hardened 7H glass surface and projected capacitive touch layer are built to withstand high-traffic use while maintaining sensitivity and accuracy.
Flexible Installation & Mounting
VESA 100x100 mm compatibility allows for secure mounting on walls, arms, or stands, enabling space-saving configurations and optimal viewing angles in retail, hospitality, or industrial settings.
- Standard 100x100 VESA pattern
- Tilt-adjustable stand included
- Cable lock slot for security
Comprehensive Connectivity Suite
A full array of video inputs and a built-in USB hub simplify integration with various source devices and peripherals, reducing cable clutter and enhancing system flexibility.
- HDMI, DisplayPort, VGA inputs
- 3-port USB 3.2 hub
- Integrated speakers
Deployment / Use Cases
The TD2465 is engineered for environments where reliable touch interaction and clear visual communication are critical. Its combination of durability, multi-touch capability, and commercial-grade connectivity makes it a versatile solution for a range of interactive applications.
In retail and hospitality, it serves as an efficient point-of-sale terminal or interactive kiosk for menus, directories, and self-service check-ins. For industrial and medical settings, the glove-compatible touchscreen and hardened glass support use in cleanrooms, manufacturing floors, or patient check-in stations. Educational and corporate spaces can leverage its multi-touch features for collaborative digital whiteboards or presentation displays.
Retail & Point-of-Sale
Ideal for fast-paced checkout counters, self-service kiosks, or interactive product catalogs where quick, accurate touch input and bright, clear displays drive customer engagement and operational efficiency.
Industrial & Digital Signage
Suited for factory floor control panels, warehouse management systems, or public information displays, offering robust construction and consistent performance in demanding environments.
Physical Profile

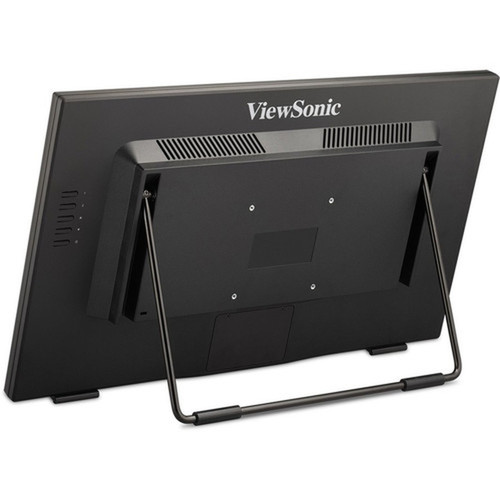

The monitor presents a sleek, all-black design that blends into professional environments. Without the stand, it measures 12.80" (325.12 mm) in height, 21.60" (548.64 mm) in width, and 1.90" (48.26 mm) in depth, with a weight of approximately 10.36 lb (4700 g), facilitating easy mounting. With the included tilt-adjustable stand attached, the height increases to 15.82" (401.83 mm) and depth to 7.80" (198.12 mm), with a total weight of about 12.57 lb (5700 g). The stand provides ergonomic tilt adjustment for optimal viewing comfort in desk-based setups.
- Width
- 21.60" (548.64 mm)
- Depth
- 1.90" (48.26 mm)
- Height
- 12.80" (325.12 mm)
- Weight
- 10.36 lb (4700 g)
What's in the Box
The monitor ships with all necessary components for quick setup and integration into your system.
Highlights
- 23.8" Full HD VA touchscreen monitor with 1920 x 1080 resolution for sharp, detailed visuals.
- Projected capacitive 10-point multi-touch supports intuitive interaction with fingers or thin gloves.
- 250 cd/m² brightness and 178° wide viewing angles ensure clear visibility from various positions.
- VESA 100x100 mm mount compatible for flexible wall, arm, or stand installation.
- Comprehensive connectivity includes HDMI, DisplayPort, VGA, and a 3-port USB 3.2 hub.
- 7H hardness glass surface resists scratches and wear in high-use commercial environments.
- Energy Star certified and complies with RoHS, REACH, and WEEE environmental standards.
- Includes tilt-adjustable stand, HDMI cable, USB cable, and power cable for immediate setup.
Specifications
| Specifications | |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | TD2465 |
| Brand Name | ViewSonic |
| Product Model | TD2465 |
| Product Name | TD2465 Touchscreen LCD Monitor |
| Packaged Quantity | 1 |
| Product Type | LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 24" |
| Viewable Screen Size | 23.8" |
| Screen Mode | Full HD |
| Panel Technology | Vertical Alignment (VA) |
| Response Time | 7 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Features | Ergonomic Design,7H Surface Hardness,OnScreen Control,On-screen Display (OSD),sRGB,Cable Lock Slot |
| Horizontal Frequency | 24 kHz to 82 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Stand Adjustments | Tilt |
| Adjustable Stand | No |
| Glass Hardness | 7H |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 3,000:1 |
| Dynamic Contrast Ratio | 20,000,000:1 |
| Brightness | 250 cd/m² |
| Color Gamut | 72% NTSC,102% sRGB |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 1 |
| Number of DisplayPorts | 1 |
| Number of USB Ports | 3 |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Power Description | |
| Operating Power Consumption | 26 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 12.80" (325.12 mm) |
| Width | 21.60" (548.64 mm) |
| Depth | 1.90" (48.26 mm) |
| Height with Stand | 15.82" (401.83 mm) |
| Width with Stand | 21.60" (548.64 mm) |
| Depth with Stand | 7.80" (198.12 mm) |
| Weight (Approximate) | 10.36 lb (4700 g) |
| Weight with Stand (Approximate) | 12.57 lb (5700 g) |
| Miscellaneous | |
| Package Contents | 1 x TD2465 1 x 3-pin Plug 1 x HDMI Cable (v1.4; Male-Male) 1 x USB A/B Cable (v3.2; Male-Male) 1 x Quick Start Guide |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the screen size and resolution of the ViewSonic TD2465 monitor?
The ViewSonic TD2465 features a 23.8-inch viewable screen size, classified as a 24-inch class monitor. It delivers Full HD resolution at 1920 x 1080 pixels, providing sharp and detailed imagery suitable for both text and graphics in commercial touch applications.
How many touchpoints does this touchscreen monitor support?
This monitor supports 10 simultaneous touchpoints using projected capacitive technology. This allows for multi-user interaction or complex multi-finger gestures, making it ideal for collaborative workspaces, interactive kiosks, or applications requiring precise multi-touch input.
Is the ViewSonic TD2465 compatible with VESA mounts?
Yes, the TD2465 is VESA mount compatible with a standard 100 x 100 mm pattern. This allows for flexible installation on wall mounts, monitor arms, or stands, enabling space-saving setups and optimal positioning in retail, hospitality, or industrial environments.
What types of video inputs are available on this monitor?
The monitor includes a comprehensive set of video inputs: one HDMI port, one DisplayPort, and one VGA port. This versatility ensures compatibility with a wide range of devices such as PCs, laptops, media players, and legacy systems, simplifying integration into existing setups.
Does the monitor have built-in speakers or a USB hub?
Yes, the TD2465 includes integrated speakers for basic audio output and a built-in USB hub with three USB 3.2 ports. The hub allows for easy connection of peripherals like keyboards, mice, or storage devices, reducing cable clutter and enhancing functionality.
What is the warranty coverage for the ViewSonic TD2465 touchscreen monitor?
ViewSonic provides a 3-year limited warranty for the TD2465 monitor, covering defects in materials and workmanship. This warranty offers peace of mind for commercial deployments, ensuring reliable performance and support over an extended period in business environments.
