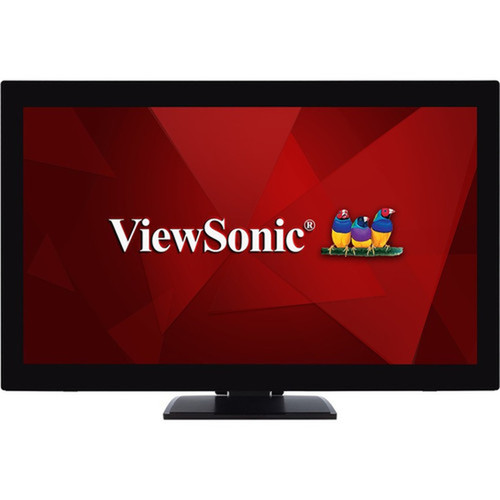

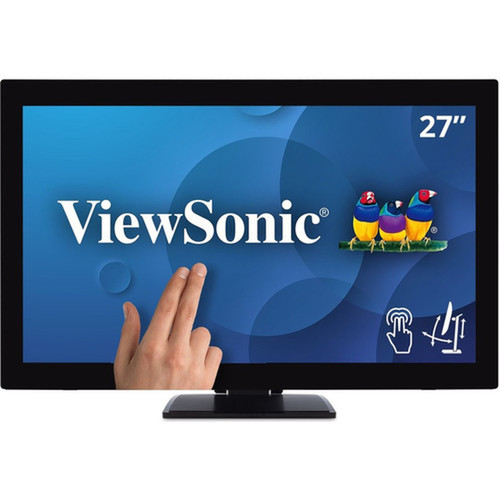

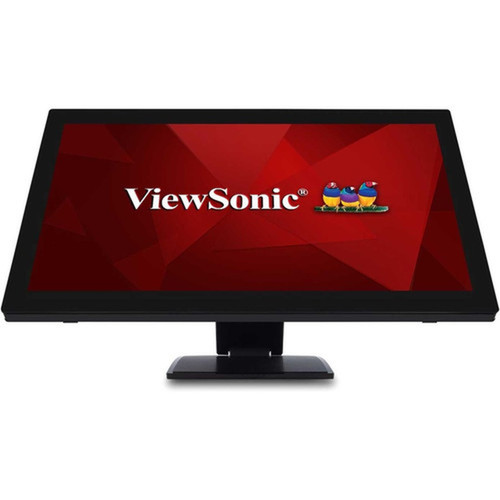

Viewsonic TD2760 27" Touchscreen Monitor - Full HD 1920 x 1080 - Projected Capacitive Multi-Touch - 6ms - VESA Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The ViewSonic TD2760 is a 27-inch Full HD touchscreen monitor designed for interactive applications in professional, educational, and retail environments. It combines a large viewing area with responsive projected capacitive multi-touch technology, enabling intuitive gesture and touch controls directly on the screen.
This monitor delivers crisp 1920x1080 resolution with a 16:9 aspect ratio, supported by a 50,000,000:1 dynamic contrast ratio and 230 cd/m² brightness for vivid image quality. The 6ms response time ensures smooth motion handling, making it suitable for presentations, digital signage, and collaborative workstations.
Relevant factors for this section include Screen Size Class, Viewable Screen Size, Screen Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
Built with an MVA panel and LED backlight, the TD2760 offers 16.7 million colors and a native 3,000:1 contrast ratio for accurate color reproduction. The horizontal frequency ranges from 15 kHz to 90 kHz, and the vertical frequency spans 50 Hz to 76 Hz, providing stable display performance across various content types.
Connectivity is comprehensive, including HDMI, VGA, DisplayPort, and USB ports, along with a built-in USB hub for peripheral expansion. The monitor also features integrated speakers, eliminating the need for external audio devices in basic setups.
Relevant factors for this section include Screen Size Class, Viewable Screen Size, Screen Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TD2760 stands out with its projected capacitive multi-touch screen, which supports precise touch interactions without requiring excessive pressure. This technology is ideal for applications like point-of-sale systems, interactive kiosks, and classroom displays, where durability and responsiveness are critical.
Versatile Mounting Options
With VESA 100x100 mm compatibility, this monitor can be easily mounted on walls, arms, or stands, saving desk space and enabling flexible installation in tight or public areas.
- Standard 100x100 VESA pattern
- Easy integration with third-party mounts
- Reduces clutter in multi-display setups
Broad Compatibility
The touch functionality works with Windows 7/8/10, Linux Kernel 4.X/3.X, Chrome OS, and Android 6.0 & 7.0. macOS users can enable full touch and gesture controls via the vTouch driver.
- Cross-platform OS support
- Driver-based macOS integration
- Suitable for diverse IT environments
Deployment / Use Cases
This monitor is engineered for scenarios where direct screen interaction enhances user engagement and operational efficiency. Its robust build and touch capabilities make it a practical choice for dynamic settings that require reliable performance.
In retail, the TD2760 can serve as a self-service kiosk or digital menu board, allowing customers to browse products or place orders with simple touches. For education, it facilitates interactive lessons and group activities, turning the display into a collaborative tool for students and teachers.
Office Collaboration
Use in meeting rooms or open-plan offices for brainstorming sessions, presentations, and video conferences, where touch annotations and controls streamline teamwork.
- Enhances meeting productivity
- Supports interactive whiteboarding
- Ideal for hybrid work setups
Public Information Displays
Deploy in airports, museums, or hospitals as interactive wayfinding or information terminals, providing accessible content with durable touch responsiveness.
- Withstands high-traffic use
- Clear Full HD visuals for public viewing
- Easy content updates via connected devices

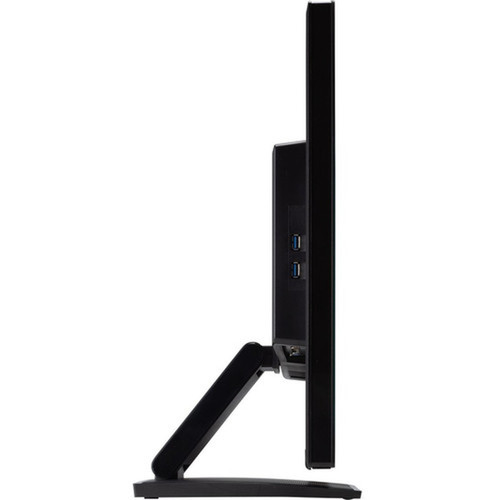

Physical Profile
The monitor has a slim profile with dimensions of 16.14" (410 mm) in height, 25.98" (660 mm) in width, and 2.28" (58 mm) in depth without the stand. Including the stand, it measures 17.44" (443 mm) in height, 25.98" (660 mm) in width, and 9.41" (239 mm) in depth, offering a stable base for desktop use.
Its weight of 12.13 lb (5500 g) without the stand and 17.42 lb (7900 g) with the stand ensures portability for temporary setups while maintaining sturdiness. The design supports both standalone placement on desks and mounted configurations for space-optimized installations.
- Width
- 25.98" (660 mm)
- Depth
- 2.28" (58 mm)
- Height
- 16.14" (410 mm)
- Weight
- 12.13 lb (5500 g)
What's in the Box
The package includes all essential components for quick setup and immediate use, ensuring you have everything needed to get started right away.
Highlights
- 27-inch Full HD touchscreen with 1920x1080 resolution for clear, detailed visuals
- Projected capacitive multi-touch technology supports intuitive gesture controls
- 6ms response time and 230 cd/m² brightness ensure smooth, bright display performance
- VESA 100x100 mm mount compatible for flexible wall or arm installations
- Includes HDMI, VGA, DisplayPort, and USB ports for versatile connectivity
- Built-in USB hub and speakers reduce clutter and external device needs
- Compatible with Windows, Linux, Chrome OS, Android, and macOS (with vTouch driver)
- Energy Star certified for efficient power usage up to 36 W
- Comes with power, VGA, HDMI, USB, and audio cables for immediate setup
- Backed by a 3-year limited warranty for reliable long-term use
Specifications
| Specifications | |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | TD2760 |
| Brand Name | ViewSonic |
| Product Model | TD2760 |
| Product Name | TD2760 - 27" Display, MVA Panel, 1920 x 1080 Resolution |
| Product Type | LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 27" |
| Viewable Screen Size | 27" |
| Screen Mode | Full HD |
| Response Time | 6 ms |
| Aspect Ratio | 16:9 |
| Backlight Technology | LED |
| Horizontal Frequency | 15 kHz to 90 kHz |
| Vertical Frequency | 50 Hz to 76 Hz |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 3,000:1 |
| Dynamic Contrast Ratio | 50,000,000:1 |
| Brightness | 230 cd/m² |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Number of DisplayPorts | 1 |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Power Description | |
| Operating Power Consumption | 36 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 16.14" (410 mm) |
| Width | 25.98" (660 mm) |
| Depth | 2.28" (58 mm) |
| Height with Stand | 17.44" (443 mm) |
| Width with Stand | 25.98" (660 mm) |
| Depth with Stand | 9.41" (239 mm) |
| Weight (Approximate) | 12.13 lb (5500 g) |
| Weight with Stand (Approximate) | 17.42 lb (7900 g) |
| Miscellaneous | |
| Package Contents | TD2760 - 27" Display, MVA Panel, 1920 x 1080 Resolution Power Cable VGA Cable HDMI Cable USB Cable Audio Cable (3.5mm audio male to male, 1.8m) Quick Start Guide |
| Energy Star | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What type of touchscreen does the ViewSonic TD2760 use?
The TD2760 features a projected capacitive multi-touch screen. This technology allows for precise, responsive touch interactions without requiring pressure, supporting gestures like pinch, zoom, and swipe. It's durable and ideal for high-use environments such as retail kiosks or educational displays.
What is the screen size and resolution of this monitor?
This monitor has a 27-inch viewable screen size with a Full HD resolution of 1920 x 1080 pixels. The 16:9 aspect ratio provides a widescreen format suitable for multimedia content, presentations, and interactive applications, offering sharp and detailed imagery.
Is the ViewSonic TD2760 VESA mount compatible?
Yes, the TD2760 is VESA mount compatible with a standard 100 x 100 mm pattern. This allows for easy installation on wall mounts, monitor arms, or stands, enabling flexible placement in spaces like conference rooms, retail stores, or classrooms to save desk space.
What connectivity ports are available on this touchscreen monitor?
The monitor includes HDMI, VGA, DisplayPort, and USB ports. It also has a built-in USB hub for connecting peripherals like keyboards or mice. This range of inputs supports connections to computers, media players, and other devices, ensuring versatile compatibility.
Does the ViewSonic TD2760 have built-in speakers?
Yes, the TD2760 comes with integrated speakers. This eliminates the need for external audio devices in basic setups, making it convenient for presentations, video playback, or interactive applications where sound is required without additional hardware.
What screen size is listed?
It features a display specification of 27", giving you clear visuals for work and media use.
