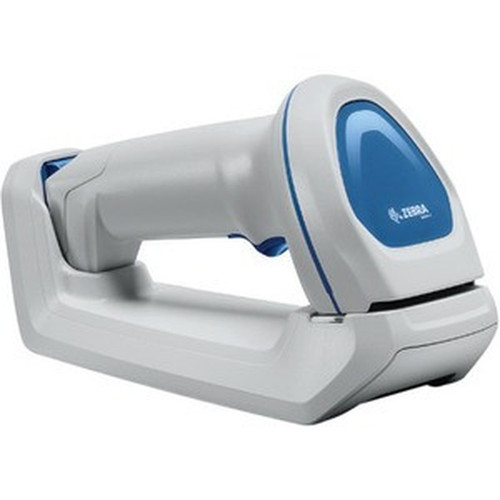

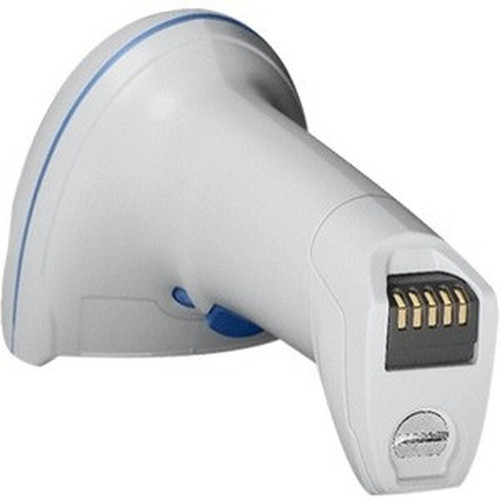

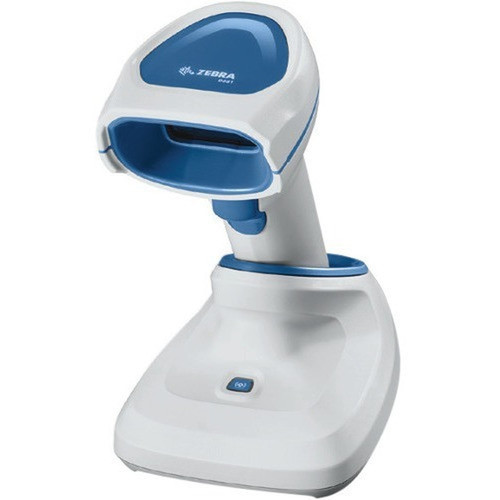

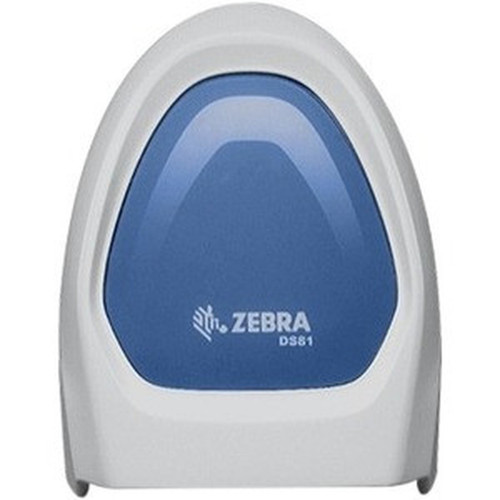

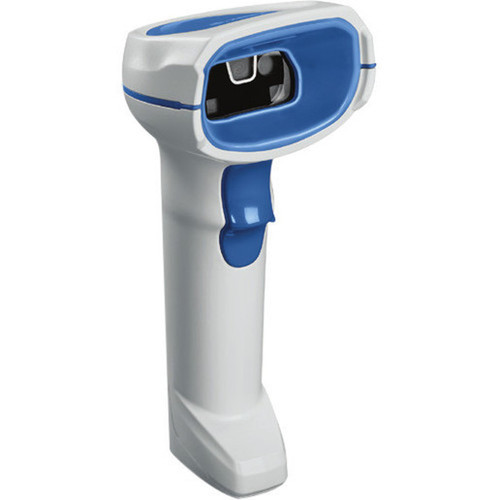

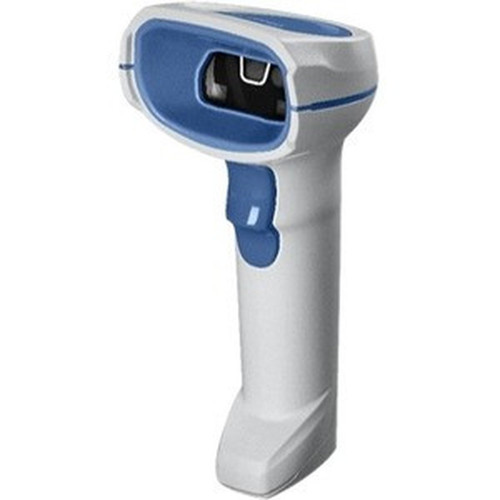

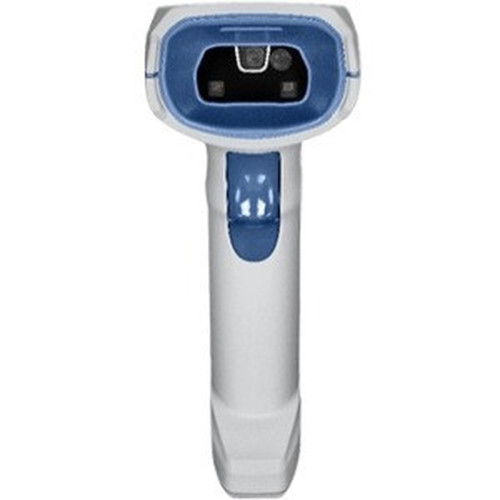

Zebra DS8178-HCBU210FS5W DS8178-HC Handheld Barcode Scanner - Wireless Bluetooth - 1D/2D Imager - LED - Healthcare White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DS8178-HC uses an imager-based sensor with an LED light source for reliable barcode reading in various lighting conditions. It connects wirelessly via Bluetooth, with a USB host interface for charging and data transfer when needed.
Supported barcode symbologies include 1D formats like Code 39, Code 128, and UPC/EAN, plus 2D codes such as QR Code, DataMatrix, Aztec, and PDF417. This broad compatibility ensures the scanner can handle diverse labeling requirements across industries.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The scanner's handheld form factor and lightweight design promote extended use without fatigue, while the included spare battery and cradles support continuous operation and convenient storage.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Wireless Flexibility, Healthcare-Optimized Design.
Wireless Flexibility
Bluetooth connectivity enables cord-free operation, allowing users to scan barcodes and transmit data from a distance without being tethered to a base station.
Healthcare-Optimized Design
The Healthcare White color and LED aimer are tailored for patient-facing environments, supporting hygiene protocols and clear visibility in clinical settings.
Deployment / Use Cases
The DS8178-HC can be deployed in environments requiring frequent barcode scanning with minimal setup. Its wireless nature allows integration with tablets, smartphones, and other mobile devices, enhancing productivity in dynamic settings.
Use the included document capture stands for hands-free scanning of documents or items, while the presentation cradle facilitates easy display and charging when not in active use.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Healthcare Facilities
Ideal for patient ID verification, medication administration, and inventory management in hospitals and clinics, where wireless scanning reduces clutter and supports mobile workflows.
Retail and Inventory
Suitable for stock management, price checking, and point-of-sale applications in stores, warehouses, and logistics centers, leveraging its 1D/2D scanning capabilities.
Physical Profile
The scanner measures 6.60" in height, 2.60" in width, and 4.20" in depth, with an approximate weight of 8.30 oz. Its compact and ergonomic handheld design ensures comfortable grip and portability for all-day use in various operational scenarios.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.60" (167.64 mm), 2.60" (66.04 mm), 4.20" (106.68 mm), 8.30 oz (235.30 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.60" (66.04 mm)
- Depth
- 4.20" (106.68 mm)
- Height
- 6.60" (167.64 mm)
- Weight
- 8.30 oz (235.30 g)
What's in the Box

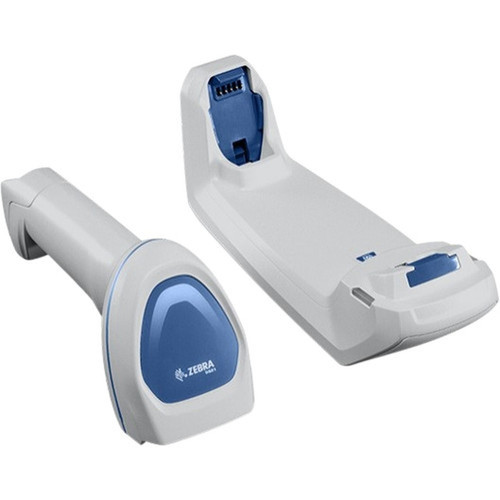

The package includes the DS8178-HC handheld barcode scanner, a standard cradle, a presentation cradle, a spare battery, and document capture stands, providing a complete setup for immediate deployment.
Highlights
- Wireless Bluetooth connectivity for cord-free scanning and data transmission
- 1D and 2D barcode scanning capability with broad symbology support
- LED imager light source suitable for patient-facing healthcare applications
- Healthcare White color optimized for clinical and clean environments
- USB host interface for charging and wired data transfer options
- Handheld form factor with ergonomic design for extended use
- Includes spare battery, cradles, and document capture stands
- RoHS compliant and environmentally friendly
- 3-year limited warranty for reliable long-term performance
- Manufactured in Mexico with Zebra's quality standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS8178-HCBU210FS5W |
| Brand Name | Zebra |
| Product Series | DS8100-HC |
| Product Model | DS8178-HC |
| Product Name | DS8178-HC Handheld Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32(Italian Pharma) 2D PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible(Han Xin) Postal Codes |
| Light Source | LED |
| Image Sensor Type | Imager |
| Network & Communication | |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | White |
| Product Color | Healthcare White |
| Height | 6.60" (167.64 mm) |
| Width | 2.60" (66.04 mm) |
| Depth | 4.20" (106.68 mm) |
| Weight (Approximate) | 8.30 oz (235.30 g) |
| Miscellaneous | |
| Package Contents | DS8178-HC Handheld Barcode Scanner Standard Cradle Presentation Cradle Spare Battery Document Capture Stands |
| Country of Origin | Mexico |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of barcodes can the Zebra DS8178-HC scanner read?
The DS8178-HC supports both 1D and 2D barcode symbologies. This includes 1D codes like Code 39, Code 128, UPC/EAN, and MSI Plessey, as well as 2D formats such as QR Code, DataMatrix, PDF417, and Aztec. It also handles specialized codes like GS1 DataBar and postal codes, making it versatile for various labeling needs in retail, healthcare, and logistics.
How does the wireless connectivity work on this barcode scanner?
The scanner uses Bluetooth technology for wireless connectivity, allowing it to transmit scanned barcode data to compatible devices like smartphones, tablets, or computers without physical cables. This enables mobile operation and reduces clutter. It also includes a USB host interface for situations where a wired connection is preferred for charging or data transfer.
Is the Zebra DS8178-HC suitable for healthcare environments?
Yes, the DS8178-HC is designed with healthcare applications in mind. Its Healthcare White color supports a clean, professional appearance in clinical settings, and the LED aimer is ideal for patient-facing use. The wireless design minimizes contact points, aiding hygiene protocols, and the scanner can handle patient ID barcodes and medication labels efficiently.
What is included in the package with the DS8178-HC scanner?
The package contains the DS8178-HC handheld barcode scanner, a standard cradle for charging and storage, a presentation cradle for display, a spare battery to ensure uninterrupted use, and document capture stands for hands-free scanning. These accessories provide a complete solution for deployment right out of the box.
What are the physical dimensions and weight of this scanner?
The scanner measures 6.60 inches in height, 2.60 inches in width, and 4.20 inches in depth, with an approximate weight of 8.30 ounces. This compact and lightweight handheld design makes it easy to carry and use for extended periods without causing fatigue, suitable for mobile workflows in various industries.
What warranty and environmental compliance does the DS8178-HC offer?
The DS8178-HC comes with a 3-year limited warranty, covering defects in materials and workmanship for reliable long-term performance. It is also environmentally friendly and RoHS (Restriction of Hazardous Substances) compliant, ensuring it meets regulatory standards for reduced hazardous materials in its construction.
