Eaton 9SX1000G 1000VA Tower UPS - 1 kVA Double Conversion Online - 230V AC Input - 6 C13 Outlets - 5. 9 Min Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Eaton UPS employs double conversion online topology, which continuously conditions incoming AC power to DC and then back to clean AC output, eliminating transfer time between utility and battery modes. This ensures zero interruption to connected loads, providing true online protection against sags, surges, spikes, and frequency variations.
The unit generates a pure sine wave output, compatible with sensitive electronic equipment that requires stable, distortion-free power. Its input accepts 230V AC nominal with an operating range of 190–276V AC, while the output can be configured for 200V, 208V, 220V, 230V, or 240V AC to match local requirements.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Eaton 9SX1000G combines robust power protection with user-friendly management features. Its front-panel LCD displays real-time status, analytics, and diagnostics, allowing for quick monitoring and troubleshooting. The optional NETWORK-M2 network card expands capabilities with remote access, control, and alerting via network interfaces.
Uninterrupted Operation
Zero transfer time between online and battery modes ensures continuous power delivery without interruption to critical systems.
- Eliminates power gaps
- Protects against sags and surges
Expandable Runtime
Optional external battery modules can be added to extend backup duration, supporting longer runtime needs for extended outages.
- Scalable battery capacity
- Flexible deployment options
Management & Monitoring
Front-panel LCD and optional network card provide comprehensive visibility and control over UPS performance and power events.
- Real-time status display
- Remote management capabilities
Deployment / Use Cases
This UPS is ideal for environments where power quality and availability are critical to operational integrity. Its 1 kVA capacity and tower form factor suit small server rooms, network closets, industrial control panels, and point-of-sale systems that require reliable backup power.
Common applications include protecting industrial automation systems, PLCs, HMIs, and IT servers that cannot tolerate power interruptions. The unit's multiple output receptacles allow it to power several devices simultaneously, while its wide input voltage range accommodates unstable grid conditions often found in industrial settings.
Industrial Automation
Safeguards programmable logic controllers, sensors, and actuators in manufacturing and process control environments.
IT Infrastructure
Provides backup power for network switches, routers, small servers, and storage devices in branch offices or edge locations.
Physical Profile

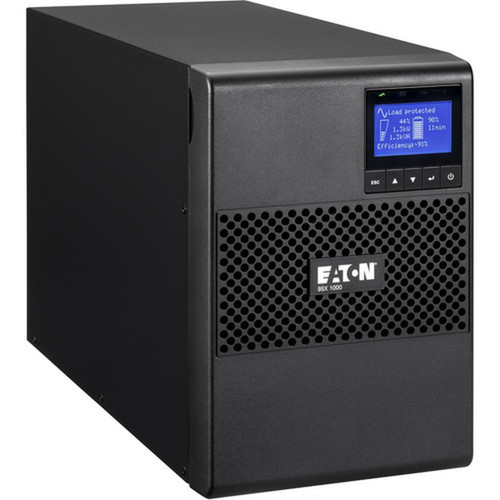

The Eaton 9SX1000G features a tower design optimized for standalone placement on floors, shelves, or under desks. Its compact footprint minimizes space requirements while providing easy access to the front-panel display and rear connectivity ports. The unit weighs approximately 30.9 lb (14,016 g), making it manageable for installation in various locations without specialized mounting hardware.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 30.90 lb (14016 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 30.90 lb (14016 g)
What's in the Box
The package includes all essential components for immediate setup and operation.
Highlights
- 1 kVA double conversion online UPS with pure sine wave output
- 5.9-minute full-load runtime at 1000VA capacity
- Six C13 output receptacles in two switched load banks
- Wide input voltage range: 190–276V AC

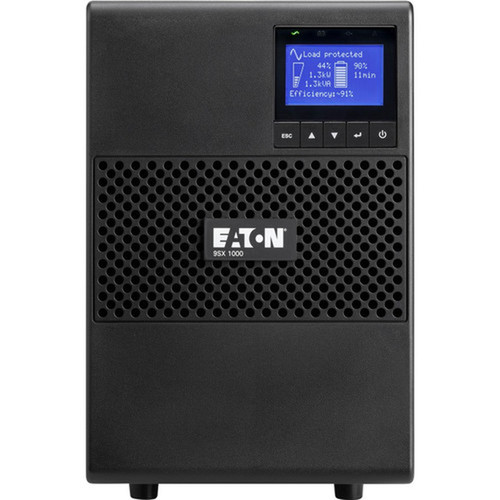

- Front-panel LCD for real-time status and diagnostics
- Optional NETWORK-M2 card for remote management
- Zero transfer time between online and battery modes
- Supports optional external battery modules for extended runtime
- Tower form factor for flexible placement
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9SX1000G |
| Brand Name | Eaton |
| Product Name | 1000VA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Application/Usage | Industrial Equipment,Industrial Automation System,IT System |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Input Voltage | 230 V AC |
| Input Voltage Range | 190 V AC - 276 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Waveform Type | Sine Wave |
| Battery Information | |
| Backup/Run Time (Full Load) | 5.90 Minute |
| Physical Characteristics | |
| Form Factor | Tower |
| Weight (Approximate) | 30.90 lb (14016 g) |
| Miscellaneous | |

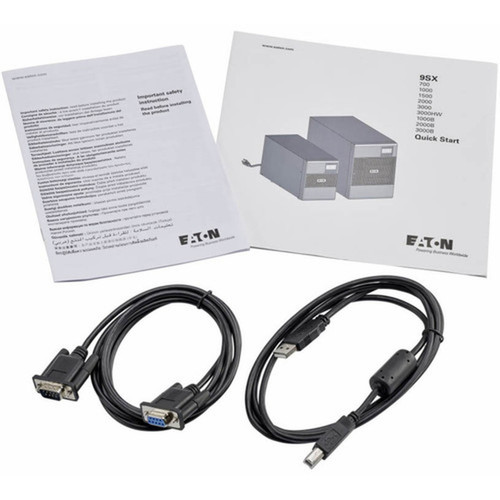

| Package Contents | 1000VA Tower UPS Manual Quick Start Guide Safety Guide Serial And USB Cables |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the load capacity of this Eaton UPS?
The Eaton 9SX1000G provides a load capacity of 1 kVA (1000 VA). This rating indicates the maximum apparent power the UPS can support, making it suitable for protecting small to medium loads such as industrial controllers, network gear, or entry-level servers.
How long does the UPS run at full load?
At full 1000VA load, the internal battery delivers approximately 5.9 minutes of runtime. This duration provides enough time for connected equipment to shut down gracefully or for backup generators to start during a power outage.
What types of output receptacles does it have?
This UPS includes six IEC 60320 C13 output receptacles, organized into two switched load banks. These standard connectors are commonly used for computers, monitors, and other IT equipment, allowing multiple devices to be powered and managed independently.
Can the runtime be extended?
Yes, optional external battery modules are available to extend runtime beyond the standard 5.9 minutes. This scalability allows the UPS to support longer backup requirements for critical applications without replacing the entire unit.
What input voltage does the UPS accept?
The nominal input voltage is 230V AC, with an operational range from 190V to 276V AC. This wide range accommodates voltage fluctuations common in industrial and utility power sources, ensuring reliable performance under varying conditions.
Is remote management supported?
Remote management is available through the optional NETWORK-M2 network card, which adds Ethernet connectivity for monitoring, configuration, and alerts. The front-panel LCD also provides local status display and basic controls without additional hardware.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
