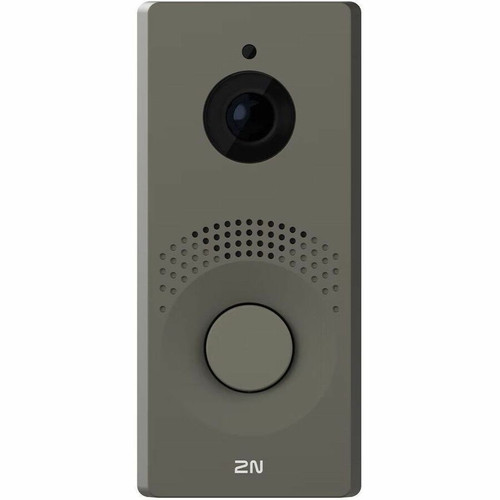

2N 02934-001 IP One Video Door Phone Sub Station - CMOS Sensor - 156° Horizontal - 116° Vertical - 0. 3 lux - Full-Duplex - Anodized Aluminum Bronze
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This video door phone substation features a CMOS image sensor with a minimum illumination of 0.3 lux, providing effective low-light performance for nighttime or dimly lit areas. The camera offers a horizontal viewing angle of 156° and a vertical viewing angle of 116°, delivering a broad field of view to capture visitors clearly. The imaging system is optimized for door entry scenarios, ensuring detailed video feed for identification purposes.
Communication is handled through full-duplex mode, enabling real-time, uninterrupted audio exchange. The substation operates on 12 V DC input voltage, supporting standard power configurations for easy integration. Its technical design prioritizes reliability and ease of use, with a single-button interface for straightforward visitor interaction.
This section brings together practical product details such as Communication Mode, Maximum Number of Buttons, Ingress Protection (IP) Rating, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The 2N IP One Video Door Phone Sub Station combines advanced imaging, durable construction, and user-friendly features to deliver a superior security solution. Its wide-angle camera and low-light sensitivity ensure reliable visual monitoring, while the robust anodized aluminum build withstands environmental challenges.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Durability, Clear Communication.
Enhanced Durability
With IP66 and IK08 ratings, this substation is resistant to water, dust, and vandalism, making it suitable for outdoor and high-traffic installations.
- IP66 Ingress Protection
- IK08 Impact Resistance
- Anodized Aluminum Construction
Clear Communication
Full-duplex audio allows for natural, simultaneous conversation, improving visitor interaction and security verification.
- Two-Way Audio
- Real-Time Exchange
- Single-Button Interface
Deployment / Use Cases
This video door phone substation is versatile for various security and access control applications. Its design supports deployment in residential settings, office buildings, and other entry points where visual and audio communication enhances safety.
Ideal for home door entry systems, it provides homeowners with a reliable way to screen visitors before granting access. In commercial environments, such as office buildings, it serves as a professional intercom solution for reception areas or secured entrances, integrating seamlessly with existing security infrastructure.
Residential Security
Install at home entryways to visually identify guests, package deliveries, or service personnel, enhancing household safety and convenience.
Commercial Access Control
Use in office buildings or multi-tenant facilities to manage visitor access, streamline reception processes, and bolster perimeter security.
Physical Profile
The substation features a compact and sleek design with dimensions of 2.08" (52.83 mm) in height, 3.07" (77.98 mm) in width, and 6.77" (171.96 mm) in depth, making it easy to mount on doors or walls without occupying excessive space. Its anodized aluminum construction in a bronze color provides a professional appearance while offering durability against wear and environmental factors. The lightweight build at approximately 12.48 oz (353.80 g) simplifies installation and reduces structural load.
- Width
- 3.07" (77.98 mm)
- Depth
- 6.77" (171.96 mm)
- Height
- 2.08" (52.83 mm)
- Weight
- 12.48 oz (353.80 g)
Highlights
- CMOS image sensor with 0.3 lux low-light performance
- Wide 156° horizontal and 116° vertical viewing angles
- Full-duplex audio communication for clear two-way conversation
- IP66 and IK08 ratings for water, dust, and impact resistance
- Anodized aluminum bronze construction for durability
- Compact design with dimensions of 2.08" x 3.07" x 6.77"
- 12 V DC power input for easy integration
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02934-001 |
| Brand Name | 2N |
| Product Line | IP One |
| Product Name | IP One Video Door Phone Sub Station |
| Product Type | Video Door Phone Sub Station |
| Technical Information | |
| Communication Mode | Full-duplex |
| Maximum Number of Buttons | 1 |
| Ingress Protection (IP) Rating | IP66 |
| Impact Protection (IK) Rating | IK08 |
| Camera | |
| Image Sensor Type | CMOS |
| Minimum Illumination | 0.3 lux |
| Horizontal Viewing Angle | 156° |
| Vertical Viewing Angle | 116° |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | Brown |
| Product Color | Bronze |
| Product Material | Anodized Aluminum |
| Durability | Water Resistant,Vandal Resistant,Dust Resistant |
| Height | 2.08" (52.83 mm) |
| Width | 3.07" (77.98 mm) |
| Depth | 6.77" (171.96 mm) |
| Weight (Approximate) | 12.48 oz (353.80 g) |
| Miscellaneous | |
| Application/Usage | Home,Door Entry,Video Intercom,Office Building |
| Country of Origin | Czech Republic |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the viewing angle of this video door phone substation?
The substation offers a horizontal viewing angle of 156° and a vertical viewing angle of 116°, providing a broad field of view to capture visitors clearly at door entry points. This wide-angle coverage helps ensure that individuals are fully visible for identification purposes.
How does the low-light performance work with the 0.3 lux specification?
With a minimum illumination of 0.3 lux, the CMOS sensor can capture usable video in dimly lit conditions, such as nighttime or poorly illuminated areas. This enhances security by allowing visual monitoring even when lighting is minimal, ensuring reliable performance around the clock.
What durability ratings does this substation have?
It features an IP66 rating for ingress protection against dust and water jets, and an IK08 rating for impact resistance, making it suitable for outdoor and high-traffic environments. The anodized aluminum construction further adds to its vandal-resistant and weatherproof qualities.
Can I have a two-way conversation with visitors using this device?
Yes, the substation supports full-duplex communication, enabling simultaneous two-way audio exchange. This allows for natural, real-time conversations with visitors, improving interaction and security verification without audio delays or interruptions.
What power supply is required for installation?
The substation operates on 12 V DC input voltage, which is a standard power configuration for many security and intercom systems. This makes it compatible with common power sources and simplifies integration into existing electrical setups.
Where is this product manufactured and what warranty does it include?
This video door phone substation is manufactured in the Czech Republic and comes with a 5-year limited warranty. This warranty supports long-term reliability and provides assurance of quality and durability for residential and commercial deployments.
What connectivity or interface options are available?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
