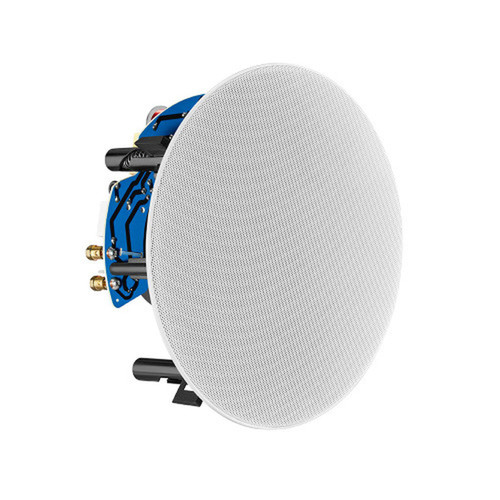

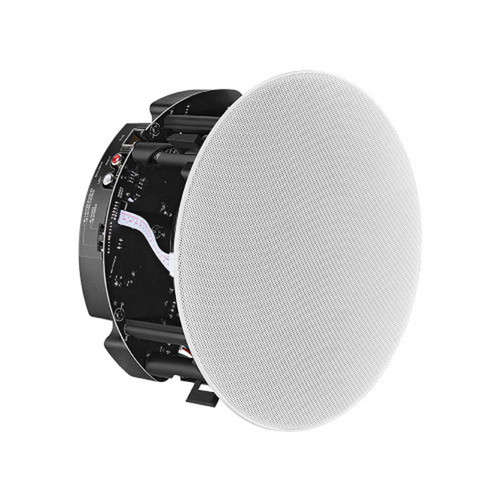

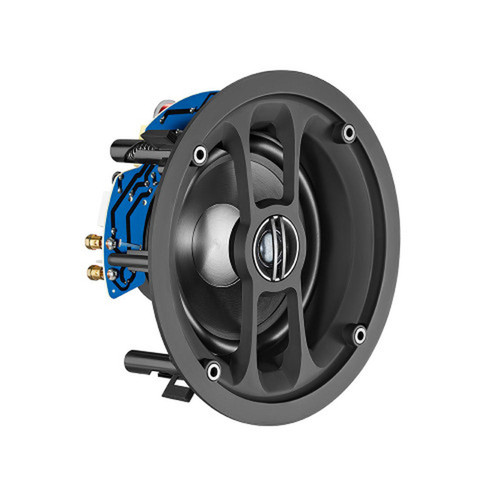

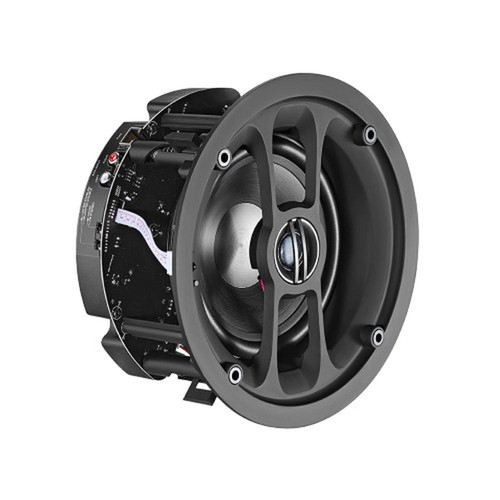

6.5 Inch Frameless WiFi Bluetooth Ethernet Ceiling Speaker Pair Active And Passive Max Speakers FN-SPK-C6-FLBS
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Overview
This active plus passive pair of 2-way in-ceiling speakers have 6.5" woofers and a frameless design with magnetic grilles. The active speaker offers WiFi / Bluetooth / Ethernet streaming audio connectivity. The woofers are made of a polypropylene cone and have a 0.75" silk dome tweeters which provides premium and long lasting sound quality along with an extremely smooth high frequency response. High-grade rubber edges increase the speakers performance and quality while the sophisticated crossover works to deliver deep bass. Installation is quick and easy as each speaker comes with a cutout template for post construction installation. The speakers are secured with swing-out dog legs and can be installed in both residential and commercial applications. These 2-way in-ceiling speakers can be used in indoor environments. The master speaker come with a volume limiter switch for added protection if required. Compatible with smartphones, tablets or any Bluetooth enabled device.
This speaker is a great choice for bathrooms, laundry rooms, and covered patios. The Bluetooth 5.0 advanced wireless streaming audio pairs up quickly to any Bluetooth enabled device. The WiFi Streaming audio provides versatility to music content and source.
 | Modern Frameless DesignThese in-ceiling speakers provide premium performance in background, foreground music sound systems. They have an attractive frameless design and micro-perforated grilles which gives them minimum visibility for a clean and built-in look. The Best Sound QualityThese speakers have the ability to handle high power. They also have wide frequency response and low distortion make is ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. They are equipped with polypropylene cone woofers to deliver deep clear bass, silk dome tweeters to deliver pristine highs and butyl rubber surrounds for longevity and excellent bass performance. Advanced Wireless Audio StreamingThis speaker allows for total control of your listening experience through WiFi, Bluetooth or Ethernet enabled devices. Achieve full stereo sound by connecting the passive speaker included. Easy and Flexible InstallationThese speakers are equipped with a dog leg mounting system for fast and easy installation. The magnetic grilles are paintable to match your decor and powder coated to prevent rust in high moisture areas. |
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | In-Ceiling Mount |
| Speaker Color | Black |
| Grille Color | White |
| Dimensions | Ø233x105mm (Ø9.2"x4.1") |
| Cutout Size | Ø209mm (Ø8.2") |
| Mounting Depth (without dry wall) | 100mm (3.9") |
| Woofer | 6.5" Polypropylene Cone |
| Tweeter | 0.75" Silk Dome |
| Magnetic Grille | Yes |
| Frameless Design | Yes |
| Dispersion Angle | 120° |
| Tweeter Pivoting/Angled | Yes |
| Performance | |
| Audio Input | Stereo Analog Audio Connector(RCA) |
| Wireless Connection System | Wi-Fi 802.11b/g/n, Bluetooth V5.0 |
| Wireless Transmission Distance | BT 10m, WiFi 80m (BT 32.8ft, WiFi 262.5ft) |
| Frequency Response | (±3dB) 70Hz-20kHz |
| Sensitivity | RCA:2VRMS / Bluetooth: Better than [email protected]% BER |
| Power Supply | AC 100~240V, 50/60Hz |
| Power Input | DC24V/2.5A |
| Efficiency | 87dB |
| RMS Power | 2x30W |
| Max Power | 60W |
| Nominal Impedance | 8Ω |
| Supports | Online Audio Streaming Media |
| Associated Products | |
| WP-CLIP-SP6 | Speaker Ceiling Rough In Bracket - Plastic For 6.5" Speaker |
| DC-5521 | 5.5mm x 2.1mm DC Plug to Receptacle Power Cable |
| Approvals | |
| FCC | Yes |
| CE | Yes |
| Packaging Information | |
| Package Quantity | 1 Pair (1x Active & 1x Passive) |
| Product Weight | 3.4lbs lbs [1.55kg] |
