sale
6 Inch Active DisplayPort 1.2 Male To HDMI Female Adapter 4K Compatible Black FN-AD-DP-HDMI2-A
SKU:
FN-AD-DP-HDMI2-A
(No reviews)
Write a Review
Write a Review
Fleet Network
6 Inch Active DisplayPort 1.2 Male To HDMI Female Adapter 4K Compatible Black FN-AD-DP-HDMI2-A
MSRP:
$31.95
$31.95
$28.95
Save:
$3.00 (9.39%)
Warranty Information:
Covered by Manufacturer
Condition:
New
Width:
1.00
(cm)
Height:
1.00
(cm)
Depth:
1.00
(cm)
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description
Overview

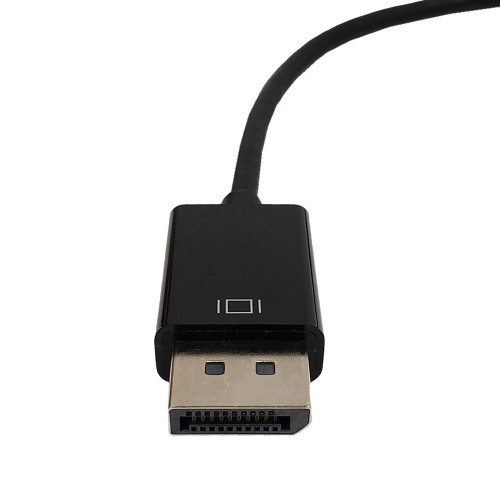

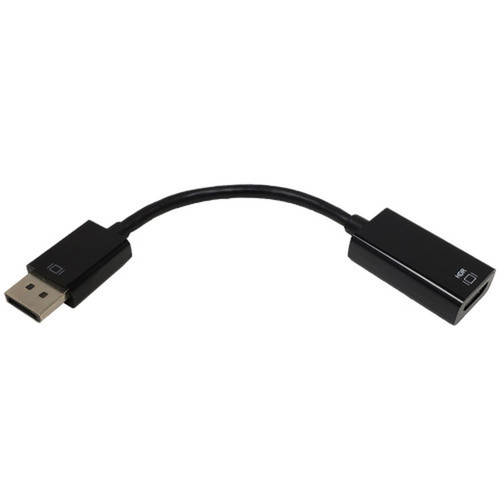

This adapter consists of a DisplayPort v1.2a male on one end and a HDMI v1.4b female on the other. It is used to connect a DisplayPort source to an analog HDMI display. It does not work from a HDMI source to a DisplayPort monitor.
|
|
Ultra High-Definition ResolutionThis adapter supports video resolutions up to Ultra HD 4K x 2K @ 60Hz. Supports Multiple Color FormatsThis adapter supports a variety of color formats - including RGB 6/8/10/12-bit per component and YCbCr4:4:4, YCbCr4:2:2, 8/10/12-bit per component. Used in Common InstancesThis adapter can be used in common instances - for example, connecting your PC to a TV. It can be used in settings such as data control centers, conference rooms, schools and corporate training environments. |
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Operating Temperature | 0℃ to +45℃ |
| Connectors | |
| Connector A | DisplayPort Male v1.2a |
| Connector B | HDMI Female 1.4b |
| Performance | |
| Resolution | 4Kx2K@60Hz |
| Bandwidth | 18Gbps |
| DP Version | 1.2a |
| HDMI Version | 1.4b |
| HDR Function | HDR 10, Dolby Version |
| Supported Application | DisplayPort input and HDMI output |
| Color Format Supported | RGB 6/8/10/12-bit per component and YCbCr4:4:4, YCbCr4:2:2, 8/10/12-bit per component |
| Power Consumption | 1W (Max), no external power supply needed |
| Audio | Supports up to 8 channel LPCM, compressed audio (AC-3, DTS) and HBR audio format Supports up to 192 kHz audio frame rate and up to 24-bit audio sample size |
| Approvals | |
| FCC | Yes |
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.50 lbs [0.23 kg] |
