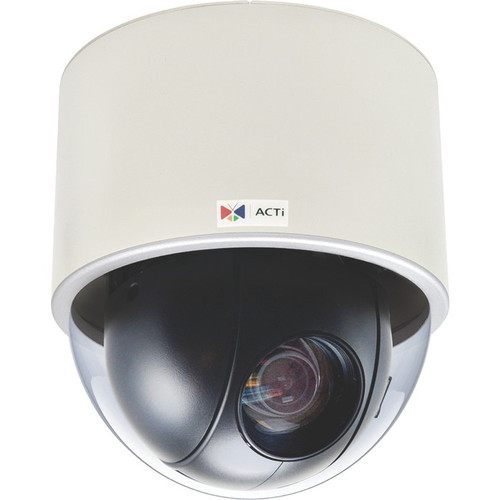

ACTi B923 SpeedDome 3MP Indoor HD Network Dome Camera - 30x Optical Zoom - 2048 x 1536 - H. 265/H. 264/MJPEG - CMOS Sensor - Color/Monochrome
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a 3-megapixel CMOS sensor that captures video at a maximum resolution of 2048 x 1536, ensuring clear and detailed imagery for surveillance purposes. The 30x optical zoom lens, with a focal length range from 4.5 mm to 135 mm, enables precise framing and close-up views without sacrificing image quality. Video compression is handled through H.265, H.264, and MJPEG codecs, allowing users to balance video quality with network bandwidth and storage requirements.
Network connectivity is provided via a wired RJ-45 interface, supporting remote management for easy configuration and monitoring. The camera includes HD recording capabilities and is designed for indoor use, with a dome enclosure that measures 6.43 inches in height and 5.91 inches in diameter, weighing approximately 1.55 kg. Its construction supports multiple mounting styles, including surface, wall, pendant, flush, corner, pole, and gang box mounts, offering installation versatility.
Key Product Advantages
The ACTi B923 SpeedDome stands out with its combination of high-resolution imaging, powerful zoom capabilities, and flexible deployment options. Its 3-megapixel sensor and 30x optical zoom lens provide detailed surveillance coverage, even at a distance, while advanced features like extreme WDR and SLLS enhance performance in challenging lighting conditions.
Advanced Video Analytics
Includes day/night functionality, extreme wide dynamic range, and smart low-light sensitivity for improved image quality in varied environments.
- Day/Night Operation
- Extreme WDR
- Smart Low-Light Sensitivity
Flexible Video Compression
Supports H.265, H.264, and MJPEG formats to optimize bandwidth usage and storage efficiency based on surveillance needs.
- H.265 Efficiency
- H.264 Compatibility
- MJPEG Simplicity
Deployment / Use Cases
This camera is ideal for indoor surveillance applications where high-definition video and zoom capabilities are critical. Its dome design and multiple mounting options make it suitable for discreet installation in areas such as retail stores, offices, schools, and healthcare facilities, where monitoring entrances, corridors, or sensitive zones is necessary.
Use cases include perimeter monitoring in corporate environments, point-of-sale oversight in retail settings, and general security in educational institutions. The camera's remote management feature allows for easy integration into existing network video recorder (NVR) systems, enabling centralized control and real-time monitoring from any location.
Retail Surveillance
Monitor cash registers, aisles, and entrances with high-resolution video and zoom to deter theft and ensure safety.
Office Security
Deploy in lobbies, hallways, or server rooms to enhance security protocols and document activities.
Physical Profile
The ACTi B923 features a dome form factor with a height of 6.43 inches (163.30 mm) and a diameter of 5.91 inches (150 mm), designed for low-profile installation. Weighing approximately 1.55 kg, it is built for durability in indoor environments. The camera supports a wide range of mounting types, including surface, wall, pendant, flush, corner, pole, and gang box mounts, providing flexibility for various architectural requirements and ensuring optimal positioning for surveillance coverage.
- Height
- 6.43" (163.30 mm)
- Weight
- 1.55 kg
- Length
- 4.5 mm
Highlights
- 3-megapixel resolution for detailed HD surveillance video
- 30x optical zoom lens with 4.5 mm to 135 mm focal length range
- CMOS sensor for efficient power consumption and reliable imaging
- Supports H.265, H.264, and MJPEG video compression formats
- Wired connectivity via RJ-45 with remote management capabilities
- Dome form factor with multiple mounting options for versatile installation
- Designed for indoor use with day/night and extreme WDR features
- Weighs 1.55 kg with dimensions of 6.43" H x 5.91" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | ACTi Corporation |
| Manufacturer Part Number | B923 |
| Brand Name | ACTi |
| Product Line | SpeedDome |
| Product Name | 3MP Video Analytics Indoor Speed Dome with D/N, Extreme WDR, SLLS, 30x Zoom Lens |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 3 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 2048 x 1536 |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 4.5 mm |
| Maximum Focal Length | 135 mm |
| Optical Zoom | 30x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Surface Mount,Wall Mount,Pendant Mount,Flush Mount,Corner Mount,Pole Mount,Gang Box Mount |
| Form Factor | Dome |
| Height | 6.43" (163.30 mm) |
| Diameter | 5.91" (150 mm) |
| Weight (Approximate) | 1.55 kg |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
User Manual
FAQ
What is the maximum video resolution of the ACTi B923 camera?
The ACTi B923 camera supports a maximum video resolution of 2048 x 1536, which is equivalent to 3 megapixels. This high resolution provides clear and detailed imagery for surveillance applications, allowing for better identification of subjects and events in monitored areas.
Does this camera support optical zoom, and what is the range?
Yes, this camera features a 30x optical zoom lens with a focal length range from 4.5 mm to 135 mm. This allows for significant magnification without loss of image quality, enabling close-up views of distant objects while maintaining sharp video details.
What video formats are supported by the ACTi B923?
The camera supports H.265, H.264, and MJPEG video formats. H.265 offers efficient compression for reduced bandwidth usage, H.264 provides broad compatibility with existing systems, and MJPEG is useful for applications requiring individual frame capture.
Is the ACTi B923 suitable for outdoor use?
No, the ACTi B923 is designed for indoor use only. It does not have weatherproofing or ruggedized features required for outdoor environments, so it should be installed in protected indoor locations such as buildings or covered areas.
What mounting options are available for this dome camera?
The camera supports multiple mounting types, including surface mount, wall mount, pendant mount, flush mount, corner mount, pole mount, and gang box mount. This versatility allows for installation in various configurations to meet specific surveillance needs and architectural constraints.
Does the camera include remote management capabilities?
Yes, the ACTi B923 includes remote management capabilities via its wired RJ-45 network connection. This allows administrators to configure settings, view live feeds, and manage recordings from a remote location using compatible software or network video recorder systems.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
