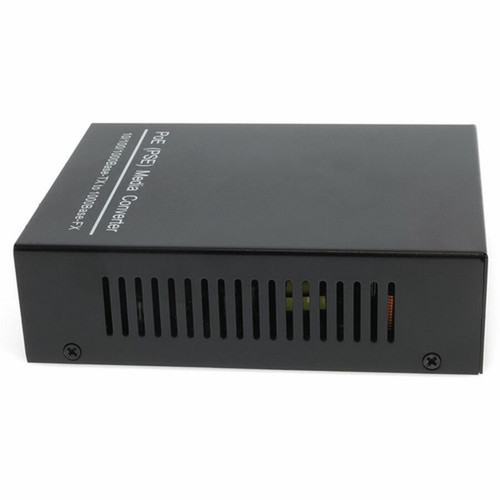

AddOn ADD-GMCP-BX-DST Gigabit PoE Fiber Media Converter - 10/100/1000Base-TX to 1000Base-BXD ST Single-Mode 20km with 1x PoE PSE Port
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The converter operates with bidirectional (BiDi) wavelengths of 1550 nm and 1310 nm on a single fiber strand, optimizing fiber utilization. It supports media types including optical fiber and twisted pair, with an Ethernet technology foundation of Gigabit Ethernet for seamless integration into modern network infrastructures.
Environmental compliance includes Restriction of Hazardous Substances (RoHS) certification, ensuring it meets international standards for reduced environmental impact. The unit is powered by an AC source with a moderate 25-watt consumption, balancing performance with energy efficiency.
Relevant factors for this section include Total Number of Ports, Network (RJ-45), DVI, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This media converter delivers durable performance with minimal signal loss, leveraging optical fiber's advantages for fast data transfers across greater distances. Its dual-media support addresses multiple network connectivity needs in today's heterogeneous environments, from legacy copper upgrades to new fiber deployments.
Extended Network Reach
Enables connectivity over 20 kilometers using single-mode fiber, far exceeding copper cable limitations for long-distance deployments.
- Minimizes signal loss over distance
- Ideal for campus links or remote sites
PoE Integration
Includes one PoE PSE port to power remote devices, simplifying installation by eliminating separate power supplies.
- Reduces cabling complexity
- Supports PoE-compatible endpoints
Deployment / Use Cases
Deploy this converter in scenarios requiring conversion between copper Ethernet and fiber optic cabling. It is particularly useful for extending network reach beyond the 100-meter limit of standard copper cables, while providing PoE to remote devices.
Common applications include connecting remote offices, industrial control systems, or outdoor wireless access points where environmental factors or distance necessitate fiber optic media. Its compact form factor allows for flexible placement in network closets, enclosures, or edge locations.
Surveillance and Security
Connect IP cameras over long distances with PoE power delivery, ensuring reliable video feeds in perimeter monitoring or large facility setups.
Network Infrastructure Extension
Bridge network segments between buildings or across campuses where fiber is required for distance or interference avoidance, maintaining Gigabit speeds.
Physical Profile
The converter measures 5.50" (139.70 mm) in height, 4.50" (114.30 mm) in width, and 1.75" (44.45 mm) in depth, with an approximate weight of 8 oz (226.80 g). Its small footprint facilitates installation in space-constrained environments, such as wall mounts or crowded racks, without sacrificing performance or connectivity options.
- Width
- 4.50" (114.30 mm)
- Depth
- 1.75" (44.45 mm)
- Height
- 5.50" (139.70 mm)
- Weight
- 8 oz (226.80 g)
- Length
- 1550 nm,1310 nm
Highlights
- Converts 10/100/1000Base-TX copper to 1000Base-BXD single-mode fiber
- Supports distances up to 20 km (12.43 miles) for extended network reach
- Includes 1x PoE PSE port for powering remote devices over Ethernet
- Operates at 1 Gbit/s data transfer rate for Gigabit performance
- Uses BiDi wavelengths (1550 nm/1310 nm) on a single fiber strand
- Compact design with dimensions of 5.50" x 4.50" x 1.75"
- RoHS compliant and environmentally friendly
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-GMCP-BX-DST |
| Brand Name | AddOn |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1550 nm,1310 nm |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-BX-D |
| Power Description | |
| Power Source | AC |
| Power Consumption | 25 W |
| Physical Characteristics | |
| Height | 5.50" (139.70 mm) |
| Width | 4.50" (114.30 mm) |
| Depth | 1.75" (44.45 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter do?
This converter bridges copper and fiber network segments by converting 10/100/1000Base-TX Ethernet over twisted pair cable to 1000Base-BXD single-mode fiber optic signals. It enables network extension up to 20 kilometers while maintaining Gigabit speeds, with an integrated PoE PSE port to power connected devices.
What is the maximum distance supported?
The converter supports a maximum distance of 20 kilometers (approximately 12.43 miles) over single-mode fiber. This far exceeds the typical 100-meter limit of copper Ethernet cables, making it suitable for long-distance network links between buildings, campuses, or remote sites.
How many PoE ports does it have and what type?
It includes one Power over Ethernet (PoE) port configured as a Power Sourcing Equipment (PSE) port. This port can deliver power to compatible devices like IP cameras or wireless access points over the Ethernet cable, simplifying installation by eliminating the need for separate power supplies at the remote location.
What fiber type and wavelengths are supported?
The converter supports single-mode fiber with a core/cladding specification of 9/125 µm. It uses bidirectional (BiDi) wavelengths of 1550 nm and 1310 nm on a single fiber strand, allowing transmission and reception over one fiber to optimize fiber infrastructure utilization.
What is the data transfer rate?
It operates at a maximum data transfer rate of 1 Gbit/s (Gigabit per second), supporting both Fast Ethernet (100 Mbps) and Gigabit Ethernet (1000 Mbps) over copper, with full Gigabit performance over fiber. This ensures high-speed connectivity for bandwidth-intensive applications.
What is the warranty and compliance?
The converter comes with a 3-year limited warranty from AddOn. It is environmentally friendly and RoHS (Restriction of Hazardous Substances) compliant, meeting international standards for reduced environmental impact. It is not TAA compliant and is manufactured in China.
