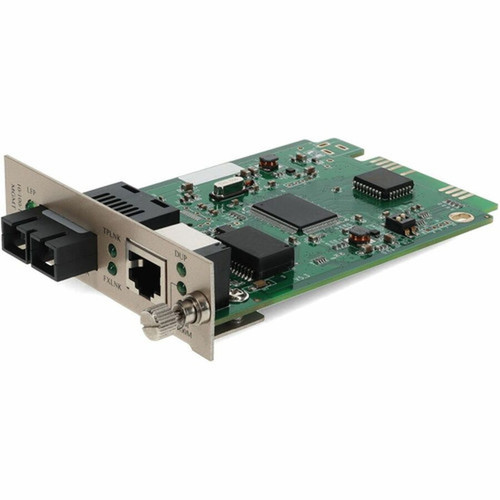

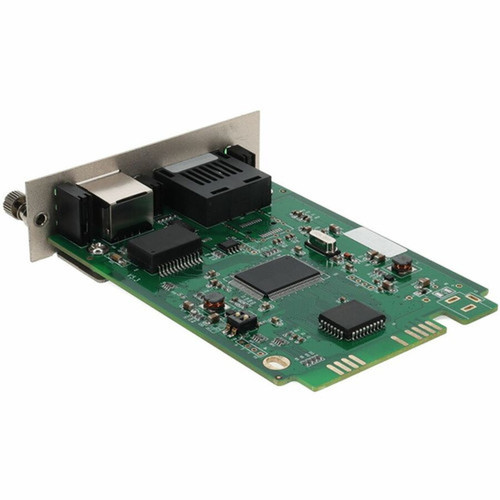

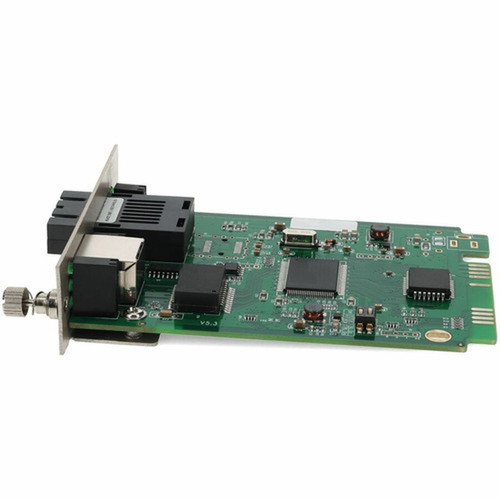

AddOn ADD-MCC1GSM20 Gigabit Media Converter Card - 10/100/1000Base-TX to 1000Base-LX SC Single-Mode 1310nm 20km Internal
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at a maximum data transfer rate of 1 Gbit/s, fully supporting Gigabit Ethernet standards for both copper and fiber interfaces. The RJ-45 port auto-negotiates between 10, 100, and 1000 Mbps speeds, ensuring compatibility with a wide range of network devices, while the SC fiber port uses 1310 nm wavelength single-mode optics to achieve a reach of up to 20 kilometers.
The converter adheres to 9/125 µm fiber core/cladding specifications, matching standard single-mode cabling for reliable optical performance. Its internal form factor measures 4.50" x 3.50" x 0.75" (114.30 mm x 88.90 mm x 19.05 mm) and weighs approximately 8 oz (226.80 g), designed for low-profile installation in dedicated slots.
Key Product Advantages
This media converter excels in extending network reach while maintaining high-speed performance, making it ideal for environments where copper cabling limits distance or where fiber's immunity to electromagnetic interference is critical. Its internal design reduces external hardware dependencies, offering a neat and integrated solution for system upgrades.
Long-Distance Connectivity
Enables network segments to span up to 20 kilometers using single-mode fiber, far beyond the limitations of standard copper Ethernet cables.
- Supports 1000Base-LX over fiber
- Uses 1310 nm wavelength optics
- Compatible with 9/125 µm fiber cables
Seamless Integration
Auto-negotiating RJ-45 port ensures plug-and-play compatibility with existing 10/100/1000 Mbps Ethernet devices, simplifying network expansions.
- No configuration required for speed matching
- Works with switches, routers, and servers
- Maintains Gigabit throughput
Deployment / Use Cases
Deploy this media converter in scenarios where extending network connectivity beyond the typical 100-meter limit of copper cabling is necessary, such as linking buildings across a campus, connecting remote data centers, or integrating fiber backbones into copper-based office networks. Its internal form factor makes it suitable for installation in network racks, media converter chassis, or custom enclosures where centralized management is preferred.
Common applications include integrating fiber optic internet connections into enterprise networks, extending surveillance system reach over long distances, and bridging network segments in industrial environments where fiber's durability and noise immunity are advantageous. The converter supports both data center redundancy setups and straightforward point-to-point links.
Building-to-Building Links
Connect network equipment between separate facilities using single-mode fiber for reliable, high-bandwidth communication immune to lightning or ground potential differences.
Data Center Extensions
Integrate fiber uplinks into server racks or network switches, enabling long-distance connections between data halls or to offsite storage without signal degradation.
Physical Profile
The converter features a compact internal card design with dimensions of 4.50" (114.30 mm) in height, 3.50" (88.90 mm) in width, and 0.75" (19.05 mm) in depth, allowing it to fit into standard media converter slots or compatible system bays. Its lightweight construction at approximately 8 oz (226.80 g) ensures minimal impact on rack weight, while the RoHS compliance indicates environmentally responsible manufacturing without hazardous substances.
- Width
- 3.50" (88.90 mm)
- Depth
- 0.75" (19.05 mm)
- Height
- 4.50" (114.30 mm)
- Weight
- 8 oz (226.80 g)
- Length
- 1310 nm
Highlights
- Converts 10/100/1000Base-TX RJ-45 to 1000Base-LX SC single-mode fiber for network extension.
- Supports distances up to 20 km (12.43 miles) using 1310 nm wavelength optics.
- Internal form factor fits into rack or standalone systems, minimizing external clutter.
- Auto-negotiating RJ-45 port ensures compatibility with Gigabit Ethernet devices.
- Uses standard 9/125 µm single-mode fiber cables for reliable optical performance.
- RoHS compliant and backed by a 3-year limited warranty for long-term reliability.
- Weighs only 8 oz (226.80 g) with compact dimensions for space-efficient installation.
- Ideal for building-to-building links, data center extensions, and industrial networks.
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MCC1GSM20 |
| Brand Name | AddOn |
| Product Model | ADD-MCC1GSM20 |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-LX |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 4.50" (114.30 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 0.75" (19.05 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What types of connections does this media converter support?
This converter supports 10/100/1000Base-TX over an RJ-45 port for copper Ethernet connections and 1000Base-LX over an SC port for single-mode fiber optic connections. It translates signals between these two media types, enabling seamless integration of fiber segments into copper-based networks.
What is the maximum distance this converter can achieve over fiber?
The converter supports a maximum distance of 20 kilometers (approximately 12.43 miles) when using single-mode fiber with 1310 nm wavelength. This extended reach is ideal for long-distance network links between buildings or across campuses where copper cabling would be insufficient.
Is this media converter internally or externally powered?
This converter has an internal form factor, meaning it is designed to be installed inside compatible rack systems or enclosures and draws power from the host system's internal power supply. It does not require an external power adapter, simplifying deployment and reducing cable clutter.
What fiber specifications are compatible with this converter?
The converter is compatible with standard 9/125 µm single-mode fiber optic cables and uses an SC connector interface. It operates at a 1310 nm wavelength, which is common for long-distance single-mode applications, ensuring reliable performance with widely available fiber cabling.
Does this converter support auto-negotiation on the copper port?
Yes, the RJ-45 port auto-negotiates between 10, 100, and 1000 Mbps speeds, allowing it to seamlessly connect to a variety of network devices such as switches, routers, and servers without manual configuration. This ensures optimal performance based on the connected equipment's capabilities.
What warranty and compliance standards apply to this product?
The converter comes with a 3-year limited warranty, providing coverage for defects in materials and workmanship. It is RoHS (Restriction of Hazardous Substances) compliant, meaning it is manufactured without harmful materials like lead or mercury, aligning with environmental regulations for electronic products.
