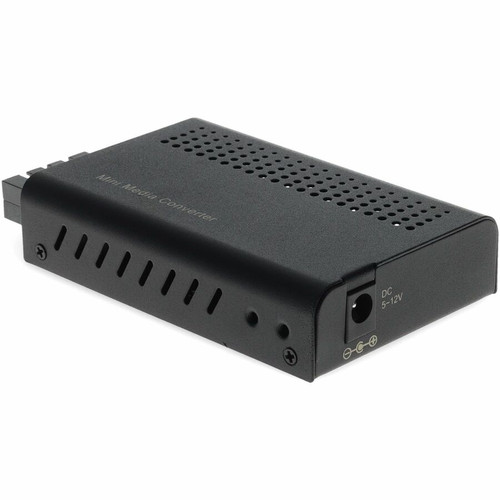

AddOn ADD-GMCMN-LX-2SC Gigabit Media Converter - RJ-45 to SC Single-mode Fiber 1310nm 20km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The media converter operates with Gigabit Ethernet technology, handling auto-negotiation for 10/100/1000Base-TX on the copper side and 1000Base-LX on the fiber side. It supports both optical fiber and twisted pair media, with a dedicated SC port for single-mode fiber connections.
Power is supplied via an AC/DC adapter, offering flexibility in deployment locations. The device features a total of two ports: one RJ-45 port for copper Ethernet and one SC port for fiber optic cabling, with no management port for simplified plug-and-play operation.
Relevant factors for this section include Total Number of Ports, Network (RJ-45), DVI, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This media converter extends network reach efficiently by leveraging fiber optic technology for long-distance runs without signal degradation. Its compact form factor and simple installation make it a practical solution for expanding existing copper networks.
Long-Distance Connectivity
Supports up to 20 km distances using single-mode fiber, ideal for campus links or remote device connections.
- 20 km maximum range
- Single-mode fiber support
- 1310 nm wavelength
High-Speed Conversion
Delivers full Gigabit throughput at 1 Gbps, ensuring no bottleneck in data transfer between network segments.
- 1 Gbit/s data rate
- 10/100/1000Base-TX compatibility
- 1000Base-LX fiber standard
Deployment / Use Cases
Deploy this media converter to connect Ethernet switches, routers, or servers across extended distances where copper cabling is impractical. It is commonly used in enterprise networks, industrial automation, and surveillance systems to link devices separated by long runs.
Typical applications include extending network connections between buildings, integrating fiber backbones into copper-based LANs, and connecting remote network equipment in harsh environments where fiber's immunity to EMI is beneficial.
Building-to-Building Links
Connect network equipment across separate structures using fiber for reliable, high-bandwidth interconnects.
Industrial Network Expansion
Extend Ethernet to remote machinery or sensors in manufacturing plants, leveraging fiber's durability and distance capabilities.
Physical Profile
The converter measures 3.75 inches in height, 2.25 inches in width, and 1 inch in depth, with an approximate weight of 4.80 ounces. Its small footprint allows for discreet placement on desktops, in network racks, or alongside other equipment, and the AC/DC power source supports flexible installation options.
- Width
- 2.25" (57.15 mm)
- Depth
- 1" (25.40 mm)
- Height
- 3.75" (95.25 mm)
- Weight
- 4.80 oz (136.08 g)
- Length
- 1310 nm
Highlights
- Converts 10/100/1000Base-TX copper Ethernet to 1000Base-LX single-mode fiber
- Supports distances up to 20 km (12.43 miles) for long-range network extensions
- Operates at 1 Gbps data transfer rate for high-speed connectivity
- Uses SC connectors for reliable fiber optic interfacing
- Compact design with dimensions of 3.75" H x 2.25" W x 1" D
- Powered by AC/DC source for versatile deployment
- Plug-and-play operation with no management port required
- Backed by a 3-year limited warranty for reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-GMCMN-LX-2SC |
| Brand Name | AddOn |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX,1000Base-LX |
| Power Description | |
| Power Source | AC/DC |
| Physical Characteristics | |
| Height | 3.75" (95.25 mm) |
| Width | 2.25" (57.15 mm) |
| Depth | 1" (25.40 mm) |
| Weight (Approximate) | 4.80 oz (136.08 g) |
| Miscellaneous | |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter do?
It converts Gigabit Ethernet signals from a copper RJ-45 port to single-mode fiber optic signals over an SC connector, enabling network connections over distances up to 20 kilometers at 1 Gbps.
What types of fiber does it support?
This converter supports single-mode fiber optic cable with a wavelength of 1310 nm, which is optimized for long-distance transmission with minimal signal loss compared to multimode fiber.
What is the maximum distance it can cover?
It supports a maximum distance of 20 kilometers (approximately 12.43 miles) when using single-mode fiber, making it suitable for extending networks across large campuses or between remote sites.
What Ethernet speeds are compatible?
It is compatible with 10/100/1000Base-TX Ethernet on the copper side, auto-negotiating to the connected device's speed, and converts to 1000Base-LX on the fiber side for consistent Gigabit performance.
How is the converter powered?
It uses an AC/DC power source, providing flexibility for installation in various environments, such as offices, data centers, or industrial settings, without requiring specialized power infrastructure.
What is included in the warranty?
The product comes with a 3-year limited warranty from AddOn, covering defects in materials and workmanship under normal use, ensuring reliable operation for network deployments.
