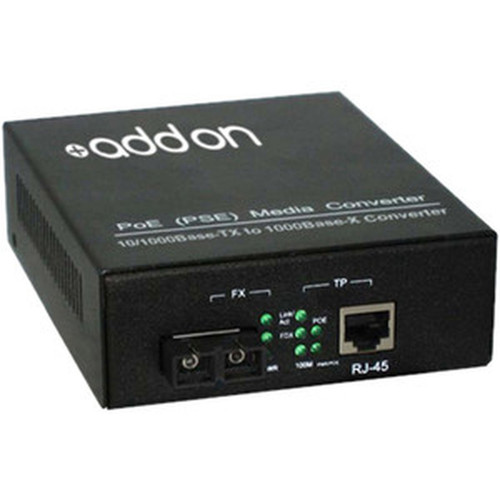

AddOn ADD-GMCP-LX-2SC Media Converter - 10/100/1000Base-TX(RJ-45) to 1000Base-LX(SC) Single-Mode 1310nm 20km PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The converter operates at a wavelength of 1310 nm over single-mode fiber, supporting distances up to 20 km (12.43 miles). It maintains a maximum data transfer rate of 1 Gbit/s, ensuring full Gigabit Ethernet performance across both media types.
The device features one RJ-45 port for copper connectivity and one SC port for fiber optic connections, with a total of two ports. It consumes 25 W of power from an AC source and is built to comply with environmental standards, including RoHS (Restriction of Hazardous Substances).
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter extends network reach by converting copper Ethernet to fiber optic, overcoming distance limitations of traditional cabling. It supports high-speed data transmission up to 1 Gbit/s over 20 km, making it ideal for long-distance network links.
Distance Extension
Enables network connectivity over 20 km using single-mode fiber, far exceeding the range of standard copper Ethernet cabling.
- 20 km maximum distance
- Single-mode fiber support
Media Flexibility
Bridges between twisted pair and fiber optic networks, allowing integration of fiber infrastructure into existing copper-based setups.
- Copper to fiber conversion
- SC connector compatibility
Deployment / Use Cases
The ADD-GMCP-LX-2SC is deployed in scenarios where network segments need to span long distances or where fiber optic cabling is required for noise immunity and security. Common use cases include connecting buildings across a campus, extending network links in industrial environments, or integrating fiber backbones into enterprise networks.
Its PoE support allows it to power remote devices such as IP cameras or wireless access points over the copper connection, simplifying installations by reducing the need for separate power sources. The compact size and standard AC power make it easy to install in racks or on shelves.
Campus Networking
Connect multiple buildings over long distances with fiber optic cabling, maintaining high-speed data transfer between network segments.
Remote Device Powering
Use PoE to deliver both data and power to devices like IP cameras or access points over the copper link, streamlining deployment.
Physical Profile
The converter measures 5.50" (139.70 mm) in height, 4.50" (114.30 mm) in width, and 1.75" (44.45 mm) in depth, with an approximate weight of 8 oz (226.80 g). Its compact design allows for flexible placement in network cabinets or on desktop surfaces, and the sturdy construction ensures reliable operation in various environments.
- Width
- 4.50" (114.30 mm)
- Depth
- 1.75" (44.45 mm)
- Height
- 5.50" (139.70 mm)
- Weight
- 8 oz (226.80 g)
- Length
- 1310 nm
Highlights
- Converts 10/100/1000Base-TX Ethernet to 1000Base-LX over single-mode fiber
- Supports distances up to 20 km (12.43 miles) for long-range network links
- Features one RJ-45 port and one SC port for copper-to-fiber connectivity
- Operates at 1310 nm wavelength with 9/125 µm fiber core/cladding
- Delivers maximum data transfer rate of 1 Gbit/s for Gigabit Ethernet performance
- Includes Power over Ethernet (PoE) support for combined data and power delivery
- Consumes 25 W from an AC power source
- Complies with RoHS environmental standards
- Compact form factor for easy deployment in racks or on shelves
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-GMCP-LX-2SC |
| Brand Name | AddOn |
| Product Model | ADD-GMCP-LX-2SC |
| Product Name | 10/100/1000Base-TX(RJ-45) to 1000Base-LX(SC) SMF 1310nm 20km POE Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-LX |
| Power Description | |
| Power Source | AC |
| Power Consumption | 25 W |
| Physical Characteristics | |
| Height | 5.50" (139.70 mm) |
| Width | 4.50" (114.30 mm) |
| Depth | 1.75" (44.45 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter do?
This media converter bridges copper and fiber network segments by converting 10/100/1000Base-TX Ethernet signals from twisted pair cabling to 1000Base-LX signals over single-mode fiber. It enables high-speed data transmission over distances up to 20 km, extending network reach beyond the limitations of standard copper cabling.
What types of fiber and connectors does it support?
The converter supports single-mode fiber optic cable with SC connectors. It operates at a wavelength of 1310 nm and uses a 9/125 µm core/cladding specification, making it compatible with standard single-mode fiber infrastructure for long-distance applications.
What is the maximum distance and data rate?
It supports a maximum distance of 20 km (12.43 miles) over single-mode fiber and a maximum data transfer rate of 1 Gbit/s. This ensures full Gigabit Ethernet performance across extended network links, maintaining high-speed connectivity over long ranges.
Does it support Power over Ethernet (PoE)?
Yes, this media converter includes PoE support, allowing it to deliver both data and power over the copper connection. This feature simplifies deployments by powering remote devices like IP cameras or access points without requiring separate power sources at the endpoint.
What are the power requirements?
The converter consumes 25 W of power and uses an AC power source. This power consumption supports its conversion functions and PoE capabilities, ensuring reliable operation in network environments where stable power is available.
What is the warranty and environmental compliance?
It comes with a 3-year limited warranty and complies with RoHS (Restriction of Hazardous Substances) environmental standards. The device is environmentally friendly and manufactured in China, but it is not TAA compliant.
