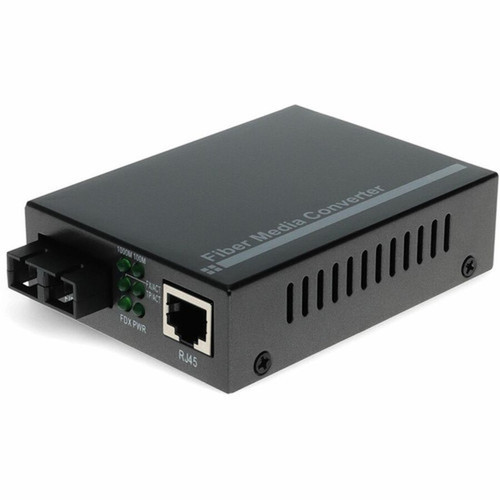

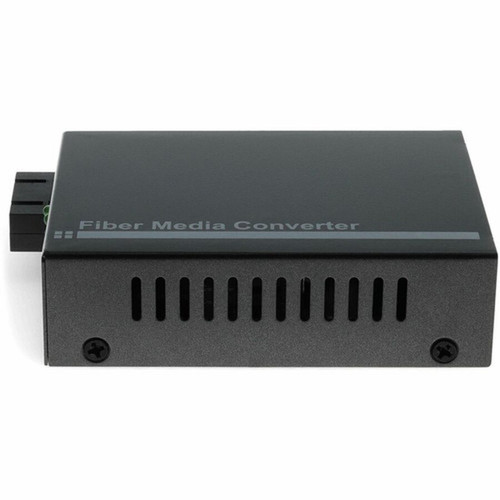

AddOn ADD-GMC-SX-5SC Gigabit Ethernet Media Converter - 10/100/1000Base-TX to 1000Base-SX - SC Multimode Fiber 850nm 550m
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at a maximum data transfer rate of 1 Gbit/s, fully supporting Gigabit Ethernet standards. It features one RJ-45 port for copper connections and one SC port for fiber optic connections, with a total of two ports. The fiber interface uses an 850 nm wavelength and is compatible with 50/125 µm core/cladding specifications, ensuring optimal performance with standard multimode fiber cables.
The converter supports distances up to 0.55 km (0.34 miles) over multimode fiber, extending network reach beyond typical copper limitations. It automatically negotiates between 10, 100, and 1000 Mbps speeds on the copper side, while maintaining a stable 1000 Mbps link on the fiber side. The device is powered by an AC/DC adapter, providing versatile installation options in various power environments.
Key Product Advantages
The ADD-GMC-SX-5SC media converter delivers reliable network extension with minimal latency and signal degradation. Its dual media support allows seamless integration into mixed infrastructure environments, reducing the need for costly network overhauls.
Extended Reach
Enables network connections up to 550 meters over multimode fiber, overcoming the distance limitations of standard copper cabling.
- Supports longer runs between switches or routers
- Reduces signal loss in extended deployments
Flexible Compatibility
Works with both multimode and single-mode fiber, as well as standard twisted-pair Ethernet, providing adaptability for diverse network setups.
- Backwards compatible with 10/100 Mbps networks
- SC connector for secure fiber connections
Compact Design
With dimensions of 3.50" x 2.50" x 0.75" and a weight of 1.10 lb, the converter fits easily in tight spaces or standard rack mounts.
- Low-profile footprint
- Suitable for desktop or rack installation
Deployment / Use Cases
This media converter is ideal for scenarios where network segments need to span longer distances or traverse environments with high electromagnetic interference. It effectively bridges copper-based LANs to fiber optic backbones, enhancing network reliability and performance.
Common applications include connecting network switches between buildings in a campus, extending network reach in industrial settings, or integrating fiber segments into existing copper infrastructure for future-proofing. The converter also supports network segmentation and isolation, useful in security-sensitive deployments where fiber's inherent signal integrity is advantageous.
Campus Network Extension
Connect buildings across a campus using fiber for long-distance, high-speed links while maintaining compatibility with existing copper equipment.
Industrial Networking
Deploy in manufacturing or utility environments where fiber's immunity to electrical noise ensures stable network performance.
Physical Profile
The converter measures 3.50 inches in height, 2.50 inches in width, and 0.75 inches in depth, with a weight of approximately 1.10 pounds. Its compact size allows for flexible placement in network cabinets, on desktops, or in wall-mounted enclosures. The sturdy construction and RoHS compliance ensure durability and environmental safety in various operating conditions.
- Width
- 2.50" (63.50 mm)
- Depth
- 0.75" (19.05 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 1.10 lb (498.95 g)
- Length
- 850 nm
Highlights
- Converts 10/100/1000Base-TX copper to 1000Base-SX multimode fiber
- Supports distances up to 550 meters (0.34 miles) over fiber
- Features one RJ-45 port and one SC port for dual-media connectivity
- Operates at 1 Gbit/s data transfer rate for Gigabit Ethernet performance
- Uses 850 nm wavelength compatible with 50/125 µm multimode fiber
- Powered by AC/DC input for versatile installation options
- RoHS compliant and environmentally friendly
- Backed by a 3-year limited warranty for reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-GMC-SX-5SC |
| Brand Name | AddOn |
| Product Model | ADD-GMC-SX-5SC |
| Product Name | 10/100/1000Base-TX(RJ-45) to 1000Base-SX(SC) MMF 850nm 550m Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode,Single-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-SX |
| Power Description | |
| Power Source | AC/DC |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 2.50" (63.50 mm) |
| Depth | 0.75" (19.05 mm) |
| Weight (Approximate) | 1.10 lb (498.95 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter do?
This converter bridges copper and fiber network segments by converting 10/100/1000Base-TX signals from standard Ethernet cables to 1000Base-SX signals for multimode fiber optic cabling. It allows you to extend network connections over longer distances with minimal signal loss, making it useful for connecting equipment across different locations where copper limitations exist.
What types of fiber does it support?
The converter supports both multimode and single-mode fiber optic cables. It is optimized for multimode fiber with an 850 nm wavelength and 50/125 µm core/cladding specification, but it can also work with single-mode fiber depending on the deployment requirements and compatible transceivers.
What is the maximum distance supported over fiber?
It supports a maximum distance of 0.55 kilometers (approximately 0.34 miles) over multimode fiber. This extended reach helps overcome the distance limitations of standard copper cabling, enabling reliable network connections across buildings or large campuses.
What connectors are used on this converter?
The converter features one RJ-45 connector for copper Ethernet connections and one SC connector for fiber optic connections. The SC connector provides a secure and stable interface for multimode fiber cables, ensuring reliable data transmission in network extensions.
How is the converter powered?
It is powered by an AC/DC power source, which provides flexibility for installation in various environments. This allows the converter to be used in standard office settings with AC power or in locations where DC power is available, supporting versatile deployment options.
What warranty comes with this product?
The converter comes with a 3-year limited warranty, covering defects in materials and workmanship. This warranty ensures reliable performance and provides peace of mind for enterprise and industrial deployments where network uptime is critical.
