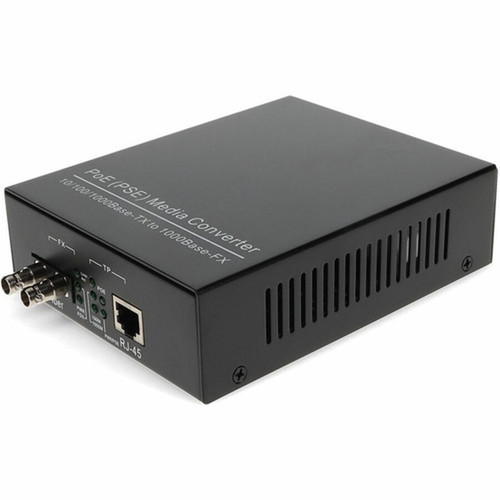

AddOn ADD-GMCP-SX-5ST Gigabit PoE Fiber Media Converter - 10/100/1000Base-TX to 1000Base-SX MMF 850nm 550m
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at a maximum data transfer rate of 1 Gbit/s, ensuring full Gigabit Ethernet performance across both copper and fiber interfaces. It uses 850 nm wavelength multi-mode fiber with a 9/125 µm core/cladding specification, supporting distances up to 0.55 km (0.34 miles). The device handles optical fiber and twisted pair media types, providing flexibility in network cabling.
Power is supplied via an AC source with a consumption of 25 W. The converter includes one PoE (RJ-45) port configured as PSE (Power Sourcing Equipment), allowing it to deliver power to connected devices such as IP cameras or wireless access points over the copper link.
Key Product Advantages
The ADD-GMCP-SX-5ST offers distinct advantages for network extension and fiber conversion tasks. Its PoE capability simplifies deployments by powering remote devices directly through the network cable, reducing the need for additional power outlets at distant locations.
Extended Reach
Converts copper to fiber to overcome distance limitations of traditional Ethernet cabling, supporting runs up to 550 meters.
- Eliminates signal degradation over long copper runs
- Maintains data integrity across fiber segments
PoE Integration
Includes one PSE PoE port to deliver power to connected devices, streamlining installations for PoE-powered endpoints.
- Reduces cabling complexity
- Supports IP cameras, access points, and other PoE devices
Deployment / Use Cases
This media converter is suited for scenarios where network segments need to span beyond the typical 100-meter limit of copper Ethernet. It effectively extends network connectivity across buildings, between floors, or in industrial settings where electromagnetic interference is a concern.
Common use cases include connecting remote office switches to a central data closet over fiber, linking surveillance cameras in perimeter security systems, and integrating wireless access points in large warehouses or campuses. The PoE functionality makes it particularly valuable for powering devices in locations without readily available electrical infrastructure.
Building-to-Building Links
Connect network equipment between separate structures using fiber for reliable, high-speed data transfer unaffected by environmental factors.
Industrial Networking
Deploy in manufacturing or utility environments where fiber's immunity to EMI ensures stable network performance around heavy machinery.
Physical Profile
The converter measures 5.50" (139.70 mm) in height, 4.50" (114.30 mm) in width, and 1.75" (44.45 mm) in depth, with an approximate weight of 8 oz (226.80 g). Its compact size allows for flexible placement on desktops, in network racks, or on shelves. The design supports straightforward installation without requiring extensive space or specialized mounting hardware.
- Width
- 4.50" (114.30 mm)
- Depth
- 1.75" (44.45 mm)
- Height
- 5.50" (139.70 mm)
- Weight
- 8 oz (226.80 g)
- Length
- 850 nm
Highlights
- Converts 10/100/1000Base-TX copper to 1000Base-SX multi-mode fiber
- Supports distances up to 0.55 km (0.34 miles) over fiber
- Includes one PoE (RJ-45) port configured as PSE for device powering
- Operates at 1 Gbit/s data transfer rate for Gigabit Ethernet performance
- Uses 850 nm wavelength with 9/125 µm fiber core/cladding
- Compact form factor: 5.50" H x 4.50" W x 1.75" D
- AC powered with 25 W consumption
- RoHS compliant and backed by a 3-year warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-GMCP-SX-5ST |
| Brand Name | AddOn |
| Product Name | 10/100/1000Base-TX(RJ-45) to 1000Base-SX(ST) MMF 850nm 550m POE Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX,10/100/1000Base-T |
| Power Description | |
| Power Source | AC |
| Power Consumption | 25 W |
| Physical Characteristics | |
| Height | 5.50" (139.70 mm) |
| Width | 4.50" (114.30 mm) |
| Depth | 1.75" (44.45 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter do?
This converter bridges copper and fiber network segments by converting 10/100/1000Base-TX Ethernet over twisted pair (RJ-45) to 1000Base-SX over multi-mode fiber (ST connector). It enables data transmission across longer distances where direct copper runs are limited, typically extending network reach up to 550 meters while maintaining Gigabit Ethernet speeds.
What type of fiber does it support?
It supports multi-mode fiber (MMF) with an 850 nm wavelength and a 9/125 µm core/cladding specification. This fiber type is commonly used for shorter-distance, high-speed network links within buildings or campuses, offering a balance of performance and cost-effectiveness for Gigabit Ethernet applications.
How many PoE ports does it have and what type?
It has one PoE (RJ-45) port configured as PSE (Power Sourcing Equipment). This port can deliver power to connected devices such as IP cameras, wireless access points, or VoIP phones over the Ethernet cable, eliminating the need for separate power supplies at remote locations and simplifying installation.
What is the maximum distance supported over fiber?
The maximum supported distance is 0.55 km (0.34 miles) over multi-mode fiber when using 1000Base-SX technology. This distance significantly exceeds the 100-meter limit of standard copper Ethernet, making the converter ideal for extending network connectivity across longer spans without signal degradation.
What are the power requirements?
The converter requires an AC power source and consumes 25 W of power. This includes the operational power for the converter itself plus the power delivered through its PoE PSE port to connected devices, ensuring reliable performance for both data conversion and device powering functions.
Is this converter compliant with environmental standards?
Yes, it is environmentally friendly and complies with the Restriction of Hazardous Substances (RoHS) directive. This ensures the product meets regulatory requirements for reduced hazardous materials, making it suitable for use in regions with strict environmental regulations and for organizations prioritizing sustainable IT infrastructure.
