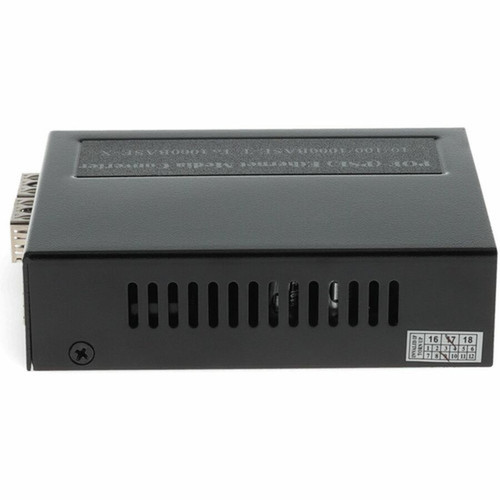

AddOn ADD-GMC-1RJ2SFP-POE+ 10/100/1000Base-TX to 2 SFP Port PoE+ Media Converter - 1 PoE+ RJ-45 Port - Gigabit - Multi/Single-mode Fiber
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with Gigabit Ethernet technology, supporting network standards including 1000Base-X for fiber and 10/100/1000Base-T for copper. It features three total ports: one 10/100/1000Base-TX RJ-45 port with PoE+ (PSE) functionality and two open SFP slots for modular transceivers. The SFP slots accept industry-standard SFP modules, allowing customization for specific fiber types, distances, or copper connections up to 1 Gbit/s.
Power is supplied via an AC/DC input with a consumption of 30 watts, sufficient to support the PoE+ port and internal conversion circuitry. The device handles optical fiber and twisted pair media, compatible with multi-mode and single-mode fiber for distances up to network limits. Physical design includes a metal housing with dimensions of 9.50 inches wide, 5.50 inches high, and 3.75 inches deep, weighing approximately 11.20 ounces for easy integration into network cabinets or enclosures.
Key Product Advantages
The ADD-GMC-1RJ2SFP-POE+ offers distinct advantages for network expansion and power delivery. Its PoE+ port eliminates the need for separate power injectors or outlets at remote device locations, reducing installation complexity and cost. The dual open SFP slots provide flexibility to mix and match fiber or copper transceivers, adapting to existing infrastructure or future upgrades without replacing the entire unit.
Media Flexibility
Supports both multi-mode and single-mode fiber optics alongside standard twisted pair cabling, enabling seamless integration into diverse network environments.
- Choose SFP modules for specific fiber types
- Use for long-distance fiber runs or short copper links
Power Integration
The integrated PoE+ port delivers up to 30W of power, compliant with IEEE 802.3at standards, to directly power networked devices like cameras or APs.
- Reduces cable clutter and power adapters
- Simplifies deployments in hard-to-reach areas
Deployment / Use Cases
This media converter is ideal for extending network segments between buildings, floors, or across campuses where fiber optic cabling is required for distance or EMI immunity. It can connect copper-based network switches to fiber backbone links, enabling high-speed data transfer over hundreds of meters or kilometers with appropriate SFP modules. The PoE+ port makes it particularly useful for powering edge devices in surveillance, wireless networking, or IoT deployments.
Common use cases include linking office networks to remote security cameras via fiber, providing uplinks from PoE switches to fiber distribution panels, or integrating into industrial networks where electrical noise necessitates fiber optic isolation. Its compact size allows installation in telecom closets, network racks, or outdoor enclosures, supported by a robust metal chassis for durability in varied environments.
Physical Profile
The converter features a compact, desktop or rack-mountable design with dimensions of 9.50 inches in width, 5.50 inches in height, and 3.75 inches in depth. Its metal construction provides durability and heat dissipation for continuous operation. The unit weighs approximately 11.20 ounces, making it easy to mount in standard network cabinets or on walls using optional brackets. Front-panel indicators for power, link, and activity facilitate quick status monitoring during deployment.
- Width
- 9.50" (241.30 mm)
- Depth
- 3.75" (95.25 mm)
- Height
- 5.50" (139.70 mm)
- Weight
- 11.20 oz (317.51 g)
Highlights
- Converts 10/100/1000Base-TX RJ-45 to two open SFP ports for fiber or copper uplinks
- Includes one PoE+ RJ-45 port delivering up to 30W to power connected devices
- Supports multi-mode and single-mode fiber optics for flexible distance requirements
- Gigabit Ethernet performance with 1 Gbit/s data transfer rate
- Compact metal housing suitable for rack, wall, or desktop installation
- AC/DC power input with 30W consumption for reliable operation
- Backed by a 3-year limited warranty for long-term reliability
- Ideal for extending networks in surveillance, wireless, or industrial applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-GMC-1RJ2SFP-POE+ |
| Brand Name | AddOn |
| Product Name | 10/100/1000Base-TX(RJ-45) to 2 Open SFP Port POE+ Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode,Single-mode |
| Maximum Data Transfer Rate | 1 Gbit/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X,10/100/1000Base-T |
| Power Description | |
| Power Source | AC/DC |
| Power Consumption | 30 W |
| Physical Characteristics | |
| Height | 5.50" (139.70 mm) |
| Width | 9.50" (241.30 mm) |
| Depth | 3.75" (95.25 mm) |
| Weight (Approximate) | 11.20 oz (317.51 g) |
| Miscellaneous | |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter do?
This converter bridges copper Ethernet networks to fiber optic or additional copper segments. It takes a 10/100/1000Base-TX RJ-45 input and converts it to signals for two SFP ports, allowing connection to fiber or twisted pair media. It also includes a PoE+ port to deliver power to networked devices, combining data conversion and power delivery in one unit.
How many PoE+ ports does it have and what power do they provide?
The converter has one PoE+ RJ-45 port that functions as a Power Sourcing Equipment (PSE) port. It provides up to 30 watts of power, compliant with IEEE 802.3at PoE+ standards, suitable for powering devices like IP cameras, wireless access points, or VoIP phones that require higher power levels than standard PoE.
What types of SFP modules are compatible?
The two open SFP slots accept industry-standard SFP transceiver modules. You can use SFP modules for multi-mode or single-mode fiber optics, as well as copper SFP modules for twisted pair connections. This allows customization based on your network's distance, media type, and performance needs, supporting data rates up to 1 Gbit/s.
Can it support both multi-mode and single-mode fiber?
Yes, the converter supports both multi-mode and single-mode fiber optics when used with appropriate SFP modules. Multi-mode fiber is typically for shorter distances up to a few hundred meters, while single-mode fiber can extend to kilometers. The device itself is media-agnostic, relying on the installed SFP modules to determine fiber compatibility and distance capabilities.
What is the power requirement and consumption?
The converter uses an AC/DC power source with a power consumption of 30 watts. This includes power for the internal conversion circuitry and the PoE+ port. It requires a standard power adapter input, making it suitable for various installation environments without specialized power infrastructure.
Is this converter rack-mountable?
Yes, the compact metal design allows for rack mounting using optional brackets, in addition to desktop or wall mounting. Its dimensions of 9.50" x 5.50" x 3.75" fit well in standard network racks or enclosures, and the lightweight construction of 11.20 ounces facilitates easy installation in telecom closets or equipment rooms.
