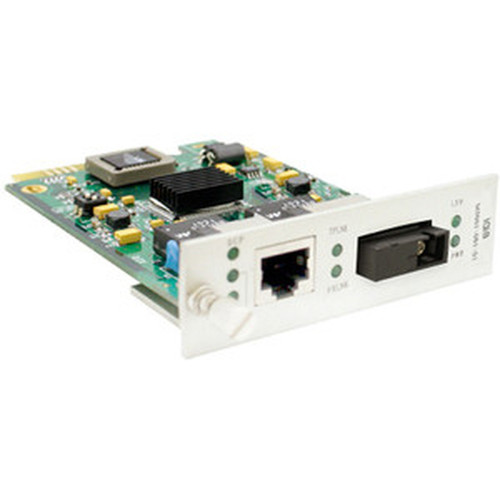

AddOn ADD-MCC1MBX35-20 Media Converter Card - 10/100Base-TX to 100Base-BX-U SC Single-Mode 20km Internal
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ADD-MCC1MBX35-20 features one RJ-45 port for twisted pair connections and one SC port for single-mode fiber optic connections, totaling two ports. It supports Fast Ethernet technology with network standards of 10/100Base-TX on the copper side and 100Base-BX-U on the fiber side, ensuring compatibility with legacy and modern network equipment.
This media converter is engineered for single-mode fiber, which allows for longer distance transmissions compared to multimode fiber. It achieves a maximum supported distance of 20 km (12.43 miles), making it ideal for connecting network segments across campuses, between buildings, or in other scenarios where copper cabling falls short.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter card extends network reach by converting copper Ethernet to fiber optic signals, overcoming the distance limitations of twisted pair cabling. It supports cost-effective network upgrades by leveraging existing copper infrastructure while adding fiber capabilities for enhanced performance and reliability.
Extended Distance Support
With a maximum distance of 20 km, this converter enables long-range network connections that are impractical with standard copper cables, reducing the need for additional networking hardware.
- Ideal for campus or inter-building links
- Minimizes signal degradation over long runs
Efficient Integration
The internal form factor allows for seamless installation into compatible systems, saving space and simplifying deployment compared to external converter units.
- Compact dimensions for tight spaces
- Reduces cable clutter and power requirements
Deployment / Use Cases
The ADD-MCC1MBX35-20 is well-suited for environments where network segments need to span longer distances or where fiber optic cabling is required for noise immunity and security. Its conversion capabilities make it a practical choice for integrating fiber backbones into existing copper-based networks.
Common use cases include connecting network switches across different buildings in an enterprise campus, extending network reach in industrial settings, or upgrading network infrastructure in data centers to incorporate fiber for higher bandwidth and reliability. The internal design makes it particularly useful for OEM integrations or custom rack deployments.
Campus Network Expansion
Deploy this converter to link buildings over single-mode fiber, maintaining Fast Ethernet speeds across extended distances without signal loss.
Infrastructure Upgrades
Use it to transition from copper to fiber in network upgrades, preserving existing copper equipment while adding fiber benefits like EMI resistance.
Physical Profile
This media converter card has a compact internal form factor with dimensions of 4.50 inches in height, 3.50 inches in width, and 0.75 inches in depth (114.30 mm x 88.90 mm x 19.05 mm). It weighs approximately 8 ounces (226.80 grams), making it lightweight and easy to install in rack systems or standalone enclosures. The design prioritizes space efficiency and minimal energy consumption, aligning with modern network hardware standards.
- Width
- 3.50" (88.90 mm)
- Depth
- 0.75" (19.05 mm)
- Height
- 4.50" (114.30 mm)
- Weight
- 8 oz (226.80 g)
- Length
- 1310 nm,1550 nm
Highlights
- Converts 10/100Base-TX Ethernet to 100Base-BX-U single-mode fiber
- Supports distances up to 20 km (12.43 miles) for extended network reach
- Features one RJ-45 port and one SC port for copper-to-fiber conversion
- Internal form factor for integration into rack or standalone systems
- Operates at 1310 nm transmission and 1550 nm reception wavelengths
- Maximum data transfer rate of 100 Mbit/s with Fast Ethernet technology
- RoHS compliant and environmentally friendly
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MCC1MBX35-20 |
| Brand Name | AddOn |
| Product Model | ADD-MCC1MBX35-20 |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-BX-U |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 4.50" (114.30 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 0.75" (19.05 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter card do?
This card converts 10/100Base-TX Ethernet signals from twisted pair copper cables to 100Base-BX-U signals over single-mode fiber optic cables. It enables network segments to extend beyond the typical limits of copper cabling by using fiber for longer distances and improved signal integrity.
What is the maximum distance supported by this converter?
The ADD-MCC1MBX35-20 supports a maximum distance of 20 kilometers (12.43 miles) over single-mode fiber. This makes it suitable for connecting network equipment across campuses, between buildings, or in other scenarios where long-range connections are necessary.
What types of connectors does this media converter use?
It uses one RJ-45 connector for the copper twisted pair connection and one SC connector for the single-mode fiber optic connection. The SC connector is common in fiber optic networks for its reliable performance and ease of use.
Is this converter internal or external?
This is an internal media converter card, designed to be installed inside compatible rack or standalone systems. It integrates directly into the hardware, saving space and reducing external cabling compared to standalone converter units.
What is the data transfer rate of this media converter?
It supports a maximum data transfer rate of 100 Mbit/s, which aligns with Fast Ethernet standards. This rate is sufficient for many business and industrial applications that require reliable network connectivity over extended distances.
Does this converter support single-mode or multimode fiber?
This converter supports single-mode fiber only. Single-mode fiber is ideal for longer distance transmissions, such as the 20 km supported here, due to its lower signal attenuation compared to multimode fiber.
