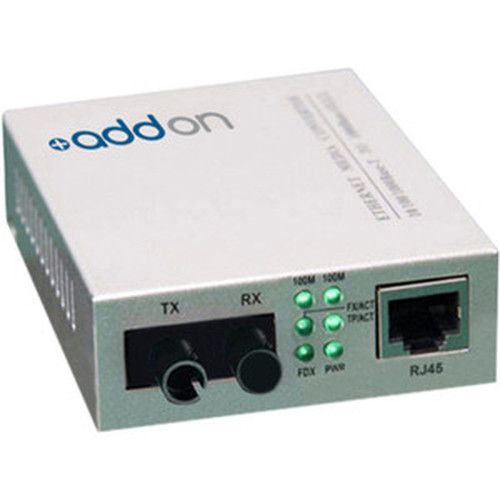

AddOn ADD-FMC-BX-DST 10/100Base-TX to 100Base-BXD BiDi ST Media Converter - 1 Gbit/s - 20 km - Single-mode Fiber - Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Technically, this media converter utilizes Fast Ethernet technology with support for both 100Base-TX over twisted pair and 100Base-BX-D over optical fiber. The fiber optic interface adheres to a 9/125 µm core/cladding specification, ensuring compatibility with standard single-mode cabling.
The converter maintains signal integrity over distances up to 20 km (12.43 miles), leveraging bidirectional communication on a single fiber strand. Its environmental compliance includes RoHS certification, and it comes with a 3-year limited warranty for added reliability.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter offers distinct advantages for network extension and fiber integration. Its bidirectional technology reduces fiber count requirements, while the desktop form factor allows flexible placement without rack mounting.
Extended Reach
Supports network extensions up to 20 km, ideal for connecting remote buildings or equipment over single-mode fiber.
- 20 km maximum distance
- Single-mode fiber compatibility
Simplified Deployment
The desktop design and AC/DC power option enable easy installation in various environments, from offices to industrial settings.
- Desktop form factor
- AC/DC power source
Deployment / Use Cases
Deploy this media converter to extend Ethernet networks over fiber where copper cabling is impractical or distance limitations exist. Common use cases include connecting network switches between buildings, integrating fiber backbones into existing copper infrastructures, or setting up remote workstations.
It is particularly effective in environments requiring reliable data transfer over long distances, such as campus networks, manufacturing facilities, or surveillance systems. The converter's compatibility with twisted pair and optical fiber media allows seamless integration into mixed-network topologies.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The converter features a compact desktop form factor with dimensions of 3.50" (88.90 mm) in height, 2.50" (63.50 mm) in width, and 0.75" (19.05 mm) in depth. It weighs approximately 8 oz (226.80 g), making it lightweight and portable for various deployment scenarios. The small footprint allows placement on desks, shelves, or in equipment enclosures without occupying significant space.
- Width
- 2.50" (63.50 mm)
- Depth
- 0.75" (19.05 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 8 oz (226.80 g)
- Length
- 1550 nm,1310 nm
Highlights
- Converts 10/100Base-TX Ethernet to 100Base-BXD single-mode fiber with BiDi ST ports
- Supports distances up to 20 km (12.43 miles) for extended network reach
- Operates at 1 Gbit/s data transfer rate with 1550 nm and 1310 nm wavelengths
- Desktop form factor enables flexible deployment outside wiring closets
- AC/DC power source provides installation versatility
- RoHS compliant and environmentally friendly
- Includes a 3-year limited warranty for reliability assurance
- Compact design with dimensions of 3.50" x 2.50" x 0.75" and 8 oz weight
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-FMC-BX-DST |
| Brand Name | AddOn |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1550 nm,1310 nm |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-BX-D,100Base-TX |
| Power Description | |
| Power Source | AC/DC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 3.50" (88.90 mm) |
| Width | 2.50" (63.50 mm) |
| Depth | 0.75" (19.05 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter convert between?
This converter transforms 10/100Base-TX Ethernet signals from an RJ-45 copper port to 100Base-BXD signals over an ST single-mode fiber port. It enables bidirectional communication on a single fiber strand, connecting copper-based network devices to fiber optic infrastructure.
What is the maximum distance supported by this converter?
The converter supports a maximum distance of 20 km (12.43 miles) over single-mode fiber. This extended reach makes it suitable for applications requiring long-distance network connections, such as linking separate buildings or remote equipment locations.
What type of fiber optic cable is compatible with this converter?
It is compatible with single-mode fiber optic cables that have a core/cladding specification of 9/125 µm. The converter operates at wavelengths of 1550 nm and 1310 nm, which are standard for single-mode fiber communications.
What are the power requirements for this media converter?
The converter uses an AC/DC power source, providing flexibility in deployment environments. This allows it to be powered from standard electrical outlets or DC sources, making it adaptable for various installation scenarios without requiring specialized power infrastructure.
What is the form factor of this converter, and where can it be installed?
It features a desktop form factor with compact dimensions of 3.50" x 2.50" x 0.75" and weighs approximately 8 oz. This design enables installation on desks, shelves, or in equipment enclosures, ideal for deployments outside traditional wiring closets or in space-constrained locations.
Does this converter include any warranty or compliance certifications?
Yes, it comes with a 3-year limited warranty and is RoHS (Restriction of Hazardous Substances) compliant. These features ensure product reliability and adherence to environmental standards, providing peace of mind for long-term network deployments.
