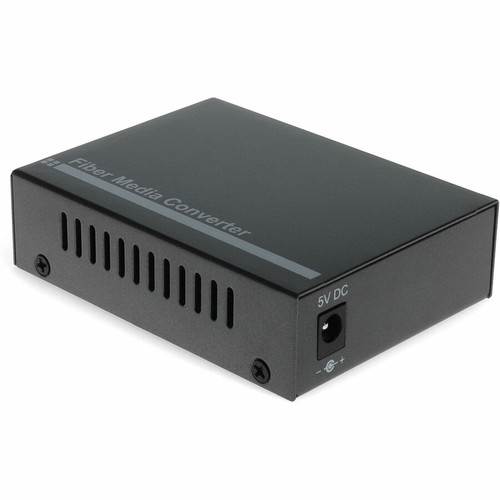

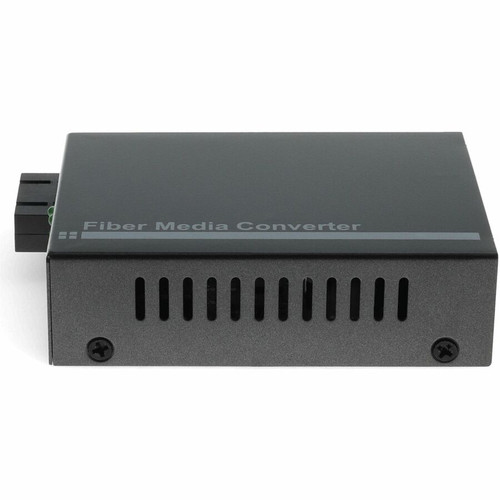

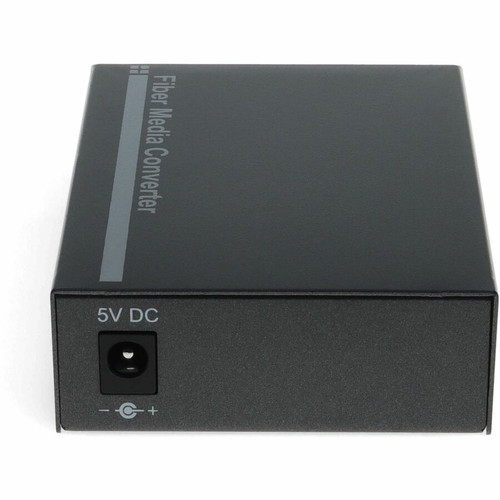

AddOn ADD-FMC-FX-SC Media Converter - 10/100Base-TX (RJ-45) to 100Base-FX (SC) MMF 1310nm 2km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at a 1310nm wavelength, compatible with common 50/125 µm and 62.5/125 µm multimode fiber cables. It provides one RJ-45 port for copper connectivity and one SC port for fiber optic termination, supporting full-duplex communication at 100 Mbps. The converter handles media conversion transparently, requiring no configuration for plug-and-play operation in most network environments.
Built with RoHS-compliant components, the device meets environmental standards while delivering consistent performance. Its internal design ensures signal integrity during conversion, minimizing latency and packet loss for stable network extensions.
Relevant factors for this section include Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ADD-FMC-FX-SC extends network segments efficiently by leveraging fiber optic cabling for longer distances and reduced electromagnetic interference. Its conversion capability allows integration of fiber backbone links with existing copper-based network equipment without replacing switches or routers.
Distance Extension
Enables reliable Ethernet connectivity up to 2 km, far exceeding the 100-meter limit of standard Cat5e/Cat6 copper cabling.
- Eliminates copper distance constraints
- Reduces signal degradation over long runs
Fiber Compatibility
Works with common multimode fiber types and SC connectors, ensuring broad compatibility with installed fiber infrastructure.
- Supports 50/125 µm and 62.5/125 µm cables
- Standard SC interface for easy connectivity
Deployment / Use Cases
Deploy this media converter to connect copper network equipment to fiber optic backbones in office buildings, campuses, or industrial settings. It is particularly useful for linking switches in different buildings where direct copper connections are impractical due to distance or environmental interference.
Common applications include extending network connections between floors in a high-rise, connecting remote workgroup switches to a central data closet, or integrating fiber runs in manufacturing environments where electrical noise affects copper performance. The compact size allows placement in tight spaces, while the AC/DC power adapter offers flexibility for various installation scenarios.
Building-to-Building Links
Connect network segments across separate structures using outdoor-rated fiber cable, maintaining data integrity over longer distances.
Industrial Network Extensions
Use in factories or warehouses to extend networks across large floors while avoiding electrical interference common in copper cables.
Physical Profile
The converter measures 3.50 inches in height, 2.50 inches in width, and 0.75 inches in depth, with a lightweight design at approximately 8 ounces. Its slim profile facilitates mounting on walls, racks, or desktops using optional brackets. The casing provides adequate ventilation for continuous operation without overheating.
- Width
- 2.50" (63.50 mm)
- Depth
- 0.75" (19.05 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 8 oz (226.80 g)
- Length
- 1310 nm
Highlights
- Converts 10/100Base-TX copper Ethernet to 100Base-FX fiber optic signals
- Supports multimode fiber with 1310nm wavelength for up to 2 km distance
- Features one RJ-45 port and one SC port for easy connectivity
- Plug-and-play operation with no configuration required
- Compact dimensions (3.50" H x 2.50" W x 0.75" D) for space-constrained installations
- AC/DC power input for flexible deployment options
- RoHS-compliant and environmentally friendly construction
- Backed by a 3-year limited warranty for reliable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-FMC-FX-SC |
| Brand Name | AddOn |
| Product Model | ADD-FMC-FX-SC |
| Product Name | 10/100Base-TX(RJ-45) to 100Base-FX(SC) MMF 1310nm 2km Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm,62.5/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-FX |
| Power Description | |
| Power Source | AC/DC |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 2.50" (63.50 mm) |
| Depth | 0.75" (19.05 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter do?
This converter bridges copper and fiber network segments by converting 10/100Base-TX Ethernet signals from an RJ-45 twisted pair connection to 100Base-FX signals for transmission over multimode fiber optic cable. It enables network extension beyond the 100-meter limit of copper cabling, supporting distances up to 2 kilometers while maintaining 100 Mbps Fast Ethernet performance.
What type of fiber cable is compatible?
The converter is compatible with multimode fiber optic cables that have 50/125 µm or 62.5/125 µm core/cladding specifications. It uses an SC connector interface and operates at a 1310nm wavelength, which is standard for many multimode fiber installations in enterprise and campus environments.
What is the maximum distance supported?
This media converter supports fiber optic transmission up to 2 kilometers (approximately 1.24 miles). This distance is significantly greater than the 100-meter maximum for standard copper Ethernet cabling, making it ideal for connecting network equipment across buildings or large facilities.
How is the converter powered?
The converter uses an AC/DC power source, typically supplied with an external power adapter. This flexible power method allows installation in various locations, such as equipment racks, wall mounts, or desktop setups, without requiring specialized power infrastructure.
Does this converter require configuration?
No, the converter operates in a plug-and-play manner with no configuration needed. It automatically handles the media conversion between copper and fiber, making it straightforward to deploy for network extensions without technical setup.
What warranty comes with this product?
AddOn provides a 3-year limited warranty for this media converter, covering defects in materials and workmanship under normal use. This warranty ensures reliable performance and support for network extension projects over an extended period.
