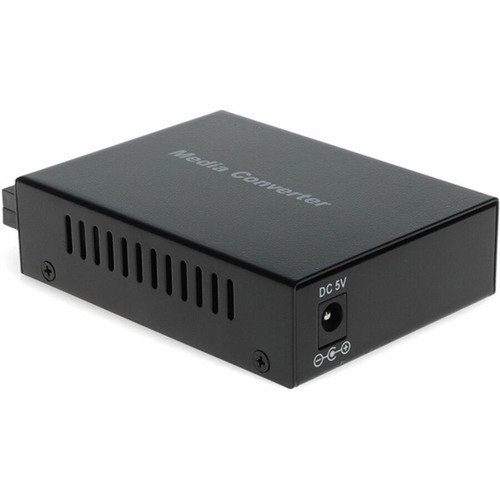

AddOn ADD-GMC-MMSM-2SC 1000Base-SX to 1000Base-LX Media Converter - 2 x SC Ports - 850nm/1310nm - 20km - Single-mode/Multi-mode
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at a maximum data transfer rate of 1 Gbit/s, aligning with Gigabit Ethernet standards. It supports fiber optic cable core/cladding specifications of 62.5/125 µm, 50/125 µm, and 9/125 µm, ensuring compatibility with common fiber types. The device uses an AC/DC power source for reliable operation in various environments. Its compact form factor measures 3.50 inches in height, 1.50 inches in width, and 0.75 inches in depth, making it suitable for space-constrained installations.
Relevant factors for this section include Total Number of Ports, DVI, USB, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ADD-GMC-MMSM-2SC offers dual-mode fiber support, allowing seamless integration into both single-mode and multi-mode network segments without requiring separate converters. Its 20-kilometer maximum distance capability extends network reach significantly beyond typical copper-based solutions. The converter is environmentally friendly and RoHS compliant, meeting modern regulatory standards for reduced hazardous substances.
Flexible Fiber Compatibility
Supports 62.5/125 µm, 50/125 µm, and 9/125 µm fiber cables with 850nm and 1310nm wavelengths for versatile deployment.
- Single-mode and multi-mode support
- Dual wavelength operation
- Common fiber core sizes
Extended Network Reach
Enables connections up to 20 kilometers, ideal for campus networks, industrial settings, or long-distance fiber links.
- 20 km maximum distance
- Gigabit Ethernet performance
- SC port connectivity
Deployment / Use Cases
This media converter is ideal for extending Gigabit Ethernet networks across different fiber types, such as converting 1000Base-SX multi-mode connections to 1000Base-LX single-mode links. Common applications include connecting buildings in campus environments, integrating legacy fiber infrastructure with newer equipment, and overcoming distance limitations in industrial or enterprise networks. Its compact size and AC/DC power make it suitable for rack-mounted installations, wall mounting, or placement in network closets.
Campus Network Extension
Connect buildings up to 20 kilometers apart by converting between SX and LX fiber standards, ensuring consistent Gigabit performance across diverse fiber types.
Legacy Infrastructure Integration
Bridge older multi-mode fiber systems with modern single-mode equipment, extending the lifespan of existing network investments while upgrading to longer-distance capabilities.
Physical Profile
The converter has a slim profile with dimensions of 3.50 inches high, 1.50 inches wide, and 0.75 inches deep, weighing approximately 8 ounces. This compact design facilitates installation in tight spaces, such as network racks, wall mounts, or equipment enclosures. The sturdy construction ensures reliable operation in various environmental conditions, supported by RoHS compliance for reduced environmental impact.
- Width
- 1.50" (38.10 mm)
- Depth
- 0.75" (19.05 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 8 oz (226.80 g)
- Length
- 850 nm,1310 nm
Highlights
- Converts 1000Base-SX to 1000Base-LX Gigabit Ethernet
- Supports single-mode and multi-mode fiber optics
- Maximum distance of 20 kilometers (12.43 miles)
- Two SC ports for direct fiber connections
- 850nm and 1310nm wavelength compatibility
- 1 Gbps maximum data transfer rate
- Compact dimensions: 3.50" H x 1.50" W x 0.75" D
- AC/DC power source for flexible deployment
- RoHS compliant and environmentally friendly
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-GMC-MMSM-2SC |
| Brand Name | AddOn |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of SC Ports | 2 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode,Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm,1310 nm |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm,50/125 µm,9/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX,1000Base-LX |
| Power Description | |
| Power Source | AC/DC |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 1.50" (38.10 mm) |
| Depth | 0.75" (19.05 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter convert between?
This converter transforms 1000Base-SX signals to 1000Base-LX signals, allowing interoperability between multi-mode and single-mode fiber optic networks while maintaining Gigabit Ethernet performance.
What types of fiber does it support?
It supports both single-mode and multi-mode fiber optics, compatible with core/cladding specifications of 62.5/125 µm, 50/125 µm, and 9/125 µm, and operates at 850nm and 1310nm wavelengths.
What is the maximum distance this converter can support?
The converter supports distances up to 20 kilometers (12.43 miles), making it suitable for extending network connections across campuses, industrial sites, or between buildings.
How many ports does it have and what type are they?
It features two SC ports, providing direct connections for fiber optic cables without requiring additional adapters, ensuring simple and reliable fiber interfacing.
What power source does it use?
It uses an AC/DC power source, offering flexibility for deployment in various environments, from standard office settings to industrial locations with different power availability.
Is this converter compliant with environmental standards?
Yes, it is RoHS compliant, meaning it restricts hazardous substances, and is environmentally friendly, aligning with modern regulatory requirements for electronic equipment.
