AddOn ADD-MPO-4LC15M9SMF 15m MPO/APC to 4xLC/UPC Duplex Yellow OS2 OFNR Riser-Rated 8-Strand SMF Fiber Fanout Cable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This cable utilizes bend-insensitive single-mode fiber, which maintains signal integrity even when routed around tight corners or in confined spaces. The MPO-12 connector uses Angled Physical Contact (APC) polishing to minimize back reflection, while the LC connectors feature Ultra Physical Contact (UPC) polishing for optimal optical performance in duplex configurations.
With a maximum distance capability of 656,167.98 ft (200,000,000 mm), this cable is engineered for extended reach in fiber optic networks. The 8-strand construction provides redundancy and flexibility for various patching scenarios, supporting data transmission speeds suitable for modern networking equipment.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This fiber optic cable combines robust construction with practical features that enhance network reliability and installation flexibility. The fanout design simplifies connectivity between MPO backbone systems and LC-based equipment, reducing the need for multiple individual patch cables.
Enhanced Durability
The bend-insensitive fiber and stranded construction withstand physical stress during installation and maintenance, while the OFNR-rated PVC jacket resists flame propagation in riser applications.
- Withstands tight bends without performance degradation
- Fire-resistant jacket for safety compliance
- Durable PVC material for long-term use
Optimized Connectivity
APC polishing on the MPO connector reduces optical return loss, while UPC polishing on LC connectors ensures efficient light transmission for clear signal quality across all four channels.
- APC polishing minimizes back reflection
- UPC polishing maximizes signal transmission
- Precision connectors for reliable mating
Deployment / Use Cases
This cable is specifically designed for indoor network environments where reliable, high-speed data transmission is critical. Its riser-rated construction makes it suitable for vertical runs between floors in office buildings, while the industrial-grade durability supports deployment in data centers and manufacturing facilities.
The MPO to LC fanout configuration is ideal for connecting high-density MPO trunk cables to individual LC ports on switches, routers, or transceivers. This cable efficiently distributes signals from a single 12-fiber MPO connection to four separate duplex LC connections, streamlining cable management in rack-mounted equipment.
Data Center Patching
Connect MPO backbone cables to LC-based network equipment in server racks, supporting high-density fiber deployments with organized cable management.
- Simplifies high-density patching
- Reduces cable clutter in racks
- Supports 40G/100G network upgrades
Enterprise Network Expansion
Extend fiber optic networks between floors or across large office spaces with reliable, long-distance connectivity for business applications and data transmission.
- Suitable for vertical riser applications
- Supports office network infrastructure
- Compatible with standard network devices
Physical Profile

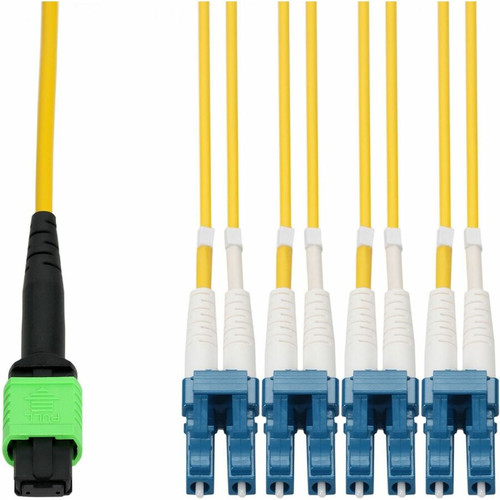

The cable features a distinctive yellow jacket that aids in visual identification within cable management systems. Green and blue connector boots on the LC ends provide additional channel identification for proper polarity maintenance in duplex fiber systems. The standard boot type ensures consistent connector protection and strain relief during repeated connections and disconnections.
- Weight
- 12.80 oz (362.87 g)
- Length
- 49.2 ft (15 m)
Highlights
- 49.2 ft (15 m) length for flexible deployment in various network environments
- MPO-12 female to 4xLC male fanout configuration simplifies high-density connectivity
- OS2 single-mode fiber with 9/125 µm core for long-distance, high-bandwidth transmission
- OFNR riser-rated PVC jacket provides fire resistance for vertical installations
- Bend-insensitive fiber maintains performance in tight routing situations
- APC polishing on MPO connector minimizes back reflection for cleaner signals
- UPC polishing on LC connectors ensures optimal optical performance
- Yellow jacket with green/blue connector boots for easy identification
- Compatible with industry-standard network devices and equipment
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MPO-4LC15M9SMF |
| Brand Name | AddOn |
| Product Name | Fiber Optic Network Cable |
| Packaged Quantity | 1.0 Piece |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Fan-out Cable |
| Fiber Optic Mode | Single-mode |
| Fiber Type | Duplex |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Category | OS2 |
| Cable Length | 49.2 ft (15 m) |
| Maximum Distance | 656167.98 ft (200000000 mm) |
| Connector Type on First End | MPO Network - Female |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x MPO-12 Network - Female |
| Connector Type on Second End | LC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 4 x LC Network - Male |
| Shielding | No |
| Jacket Type | Riser,OFNR |
| Device Supported | Network Device |
| Boot Type | Standard |
| Features | Bend Insensitive,Riser Rated,Fire Resistant,Stranded,Angled Physical Contact (APC),Ultra Physical Contact (UPC) |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Connector Color | Green,Blue |
| Product Material | Fiber |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 12.80 oz (362.87 g) |
| Miscellaneous | |
| Application/Usage | Indoor,Data Transmission,Vertical Riser,Business,Office,Data Center,Industrial |
| Compatibility | Compatible OEM: Industry Standard |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the cable length and how does it impact deployment?
This cable measures 49.2 feet (15 meters), providing sufficient reach for most indoor network installations. This length allows flexible routing between equipment racks, across rooms, or through vertical risers while maintaining signal integrity. The 15-meter span is ideal for connecting MPO backbone systems to LC-based network devices in data centers, office buildings, and industrial environments without requiring intermediate connections.
What connectors are on each end of this fiber optic cable?
One end features a single MPO-12 female connector with APC polishing, designed for high-density backbone connections. The other end branches into four separate LC male connectors with UPC polishing, each supporting duplex fiber connections. This fanout configuration efficiently distributes signals from a 12-fiber MPO trunk to individual LC ports on switches, transceivers, or other network equipment.
What does OS2 single-mode fiber mean for network performance?
OS2 designates the fiber category optimized for single-mode transmission with low attenuation over long distances. The 9/125 µm core/cladding specification enables efficient light propagation with minimal signal loss. This cable supports high-bandwidth data transmission suitable for 10G, 40G, and 100G network applications, with a maximum distance capability exceeding 656,000 feet for extended network reach.
What safety ratings does the cable jacket have?
The cable features an OFNR riser-rated PVC jacket that resists flame propagation and limits smoke generation. This rating certifies the cable for installation in vertical riser spaces between floors, plenums, and other air-handling areas where fire safety is critical. The fire-resistant properties ensure compliance with building codes and safety standards for indoor network installations.
What does bend-insensitive fiber technology provide?
Bend-insensitive fiber maintains optical performance even when routed around tight corners or subjected to physical stress during installation. This technology reduces signal loss that typically occurs when conventional fiber is bent, allowing more flexible cable management in confined spaces like equipment racks, conduits, and cable trays without compromising data transmission quality.
What applications is this cable best suited for?
This cable is designed for indoor network environments including data centers, office buildings, and industrial facilities. The MPO to LC fanout configuration makes it ideal for connecting high-density MPO backbone systems to LC-based network equipment. Specific applications include data center patching, enterprise network expansion, vertical riser installations, and any scenario requiring reliable single-mode fiber connectivity with efficient cable management.
