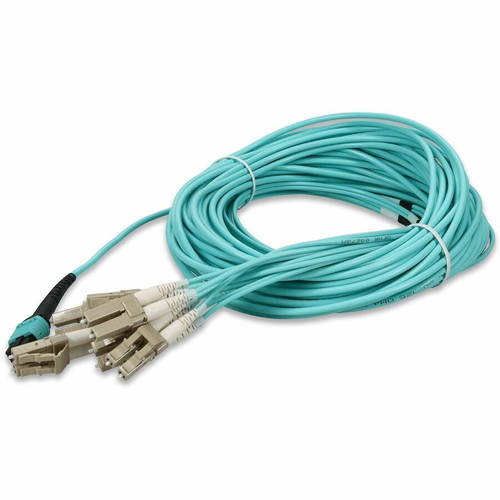

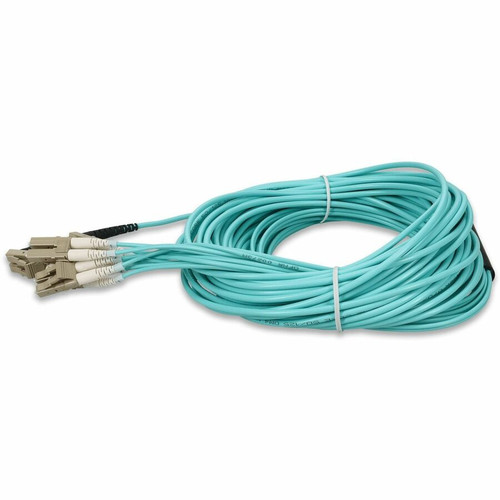

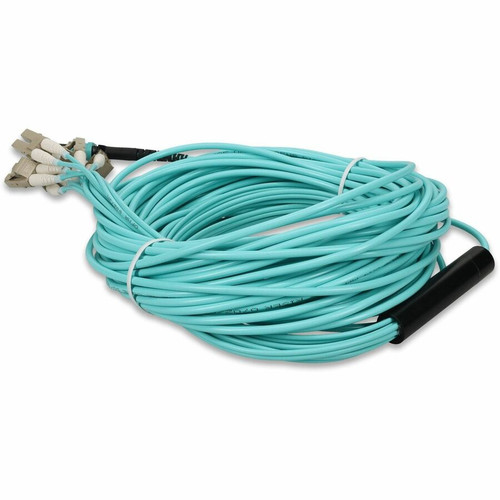

AddOn ADD-MPO-6LC15M5OM3 MPO/UPC to 6xLC/UPC Duplex Aqua OM3 OFNR Riser-Rated 12-Strand Fiber Fanout Cable - 49. 2 ft (15 m)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fanout cable utilizes OM3 multi-mode fiber, which is engineered for 10 Gigabit Ethernet applications at distances up to 300 meters. The 50/125 µm fiber geometry provides optimal bandwidth for short to medium-range data center and enterprise network links. The cable features a duplex fiber type, supporting simultaneous bidirectional data flow essential for full-duplex communication protocols.
Connector integrity is maintained through stranded construction, which enhances flexibility and durability during installation and routine handling. The absence of shielding simplifies deployment while the LSZH (Low Smoke Zero Halogen) jacket material reduces toxic emissions in case of fire, aligning with modern safety requirements for riser-rated installations.
Key Product Advantages
This cable streamlines network architecture by reducing the need for multiple individual patch cables, saving space and simplifying cable management in high-density racks. The MPO to LC fanout design allows direct integration with MPO trunk cables, minimizing connection points and potential failure sites.
High-Density Connectivity
The 1:12 MPO to LC configuration supports up to twelve devices from a single MPO port, ideal for consolidating connections in data centers, server rooms, and network closets.
- Reduces cable clutter
- Simplifies patch panel layouts
- Enhances airflow in racks
Reliable Performance
Physical Contact (PC) connectors ensure low insertion loss and back reflection, critical for maintaining signal integrity in high-speed fiber networks.
- Minimizes data transmission errors
- Supports 10GbE applications
- Consistent optical performance
Deployment / Use Cases
This cable is primarily deployed in environments where MPO backbone systems need to interface with LC-based equipment. It serves as a critical link between high-capacity MPO trunk lines and individual network devices, facilitating scalable and organized network expansions.
Common applications include connecting MPO-terminated fiber distribution panels to LC ports on switches, routers, media converters, and servers. It is also used in data center migrations where existing LC infrastructure must integrate with newer MPO-based systems, ensuring backward compatibility without sacrificing performance.
Data Center Interconnects
Enables efficient breakout from MPO backbone cables to LC ports on top-of-rack switches, supporting high-density server deployments and storage area networks.
Enterprise Network Upgrades
Facilitates the transition to higher-speed network standards by providing a reliable MPO to LC pathway for upgrading legacy LC-based networks to 10GbE-capable infrastructure.
Physical Profile
The cable features a durable aqua-colored jacket, which visually identifies it as OM3 multi-mode fiber according to industry standards. The riser-rated LSZH construction allows safe vertical runs between floors in plenum spaces, while the lightweight design at 8 oz (226.80 g) simplifies handling and installation. The 49.2 ft (15 m) length provides flexibility for medium-distance connections without excessive slack, making it suitable for structured cabling systems in commercial and data center environments.
- Weight
- 8 oz (226.80 g)
- Length
- 49.2 ft (15 m)
Highlights
- Converts 1 MPO female to 12 LC male duplex connectors for high-density networking
- OM3 multi-mode fiber with 50/125 µm core/cladding for 10GbE support
- 49.2 ft (15 m) length ideal for medium-distance data center and enterprise links
- Riser-rated LSZH jacket ensures fire safety and compliance for indoor installations
- Laser-optimized with Physical Contact (PC) connectors for low signal loss
- Aqua color identifies OM3 fiber type per industry standards
- Supports network devices, patch panels, media converters, routers, hubs, and switches
- Lifetime warranty for long-term reliability and peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MPO-6LC15M5OM3 |
| Brand Name | AddOn |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1.0 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Fan-out Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Category | OM3 |
| Cable Length | 49.2 ft (15 m) |
| Connector Type on First End | MPO Network - Female |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 12 x LC Network - Male |
| Shielding | No |
| Jacket Type | Riser,LSZH |
| Device Supported | Network Device,Patch Panel,Media Converter,Router,Hub,Switch |
| Features | Physical Contact (PC),Laser-optimized,Stranded |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the purpose of an MPO to LC fanout cable?
An MPO to LC fanout cable converts a single MPO connector into multiple LC connectors, allowing high-density MPO backbone systems to connect to individual LC-based network devices. This simplifies cabling in data centers by reducing the number of separate patch cables needed, improving organization and airflow in racks while maintaining reliable fiber optic performance.
What does OM3 fiber category mean for this cable?
OM3 is a laser-optimized multi-mode fiber category designed to support 10 Gigabit Ethernet at distances up to 300 meters. It ensures the cable can handle high-speed data transmission with minimal signal loss, making it suitable for modern enterprise networks and data center applications where bandwidth and reliability are critical.
Can this cable be used in riser applications?
Yes, this cable features a riser-rated LSZH (Low Smoke Zero Halogen) jacket, which meets fire safety standards for vertical runs between floors in plenum spaces. The LSZH material reduces toxic smoke and halogen emissions in case of fire, making it safe for indoor installations in commercial buildings and data centers.
What devices are compatible with this fiber cable?
This cable is compatible with a wide range of network equipment including network devices, patch panels, media converters, routers, hubs, and switches that support LC duplex connectors. It is designed for use in environments where MPO trunk lines need to interface with LC ports, facilitating connections in data centers, server rooms, and enterprise networks.
What is the significance of the 50/125 µm fiber specification?
The 50/125 µm specification refers to the core and cladding diameters of the fiber, with 50 microns for the core and 125 microns for the cladding. This geometry is standard for OM3 multi-mode fiber, providing optimal bandwidth for short to medium-distance high-speed data transmission. It ensures efficient light propagation and compatibility with common fiber optic transceivers used in 10GbE networks.
Does this cable include any warranty?
Yes, this AddOn cable comes with a lifetime limited warranty, which covers defects in materials and workmanship for the duration of its use. This warranty provides long-term assurance of quality and reliability, supporting investment in network infrastructure by protecting against premature failure under normal operating conditions.
