AddOn ADD-IGMC-BXU-2ST2 Industrial Media Converter - 2x RJ-45 to 2x ST Single-Mode Fiber 20km 1Gbps Gigabit Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with single-mode fiber using 1310 nm transmit and 1550 nm receive wavelengths, achieving a maximum supported distance of 20 kilometers. The bidirectional fiber technology optimizes signal clarity and minimizes loss over long hauls.
Network compatibility includes auto-negotiation on the RJ-45 ports for seamless integration with existing switches, routers, and endpoints. The terminal block power connector ensures secure electrical connections in industrial settings, reducing the risk of accidental disconnection.
Relevant factors for this section include Total Number of Ports, Network (RJ-45), DVI, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ADD-IGMC-BXU-2ST2 delivers critical advantages for network expansion and media conversion projects. Its industrial design prioritizes durability and stable operation in environments with electrical noise, temperature fluctuations, or physical vibrations.
Extended Reach
Overcomes copper distance limitations by supporting fiber runs up to 20 kilometers, ideal for connecting buildings, campuses, or remote equipment.
- Eliminates signal degradation over long distances
- Maintains 1 Gbps throughput across full range
Media Flexibility
Enables seamless integration between copper and fiber segments without replacing entire network infrastructure.
- Converts 10/100/1000Base-T to 1000Base-BX-U
- Supports mixed cabling in same deployment
Industrial Reliability
Built with industrial-grade components and terminal block power for secure operation in challenging environments.
- Resists electrical interference
- Secure power connection minimizes downtime
Deployment / Use Cases
This media converter addresses specific network challenges where copper cabling cannot meet distance or environmental requirements. It serves as a practical solution for extending network segments beyond the 100-meter limit of standard Ethernet cabling.
Common deployments include industrial automation networks connecting control systems across manufacturing floors, campus networks linking buildings with fiber backbone connections, and surveillance systems transmitting video data from remote cameras to central monitoring stations. The converter also facilitates network upgrades by allowing gradual fiber adoption while preserving existing copper investments.
Industrial Network Expansion
Connect PLCs, sensors, and control systems across large facilities with reliable fiber links that resist electromagnetic interference.
Campus/Building Interconnects
Establish high-speed connections between separate buildings using existing fiber infrastructure or new installations.
Physical Profile

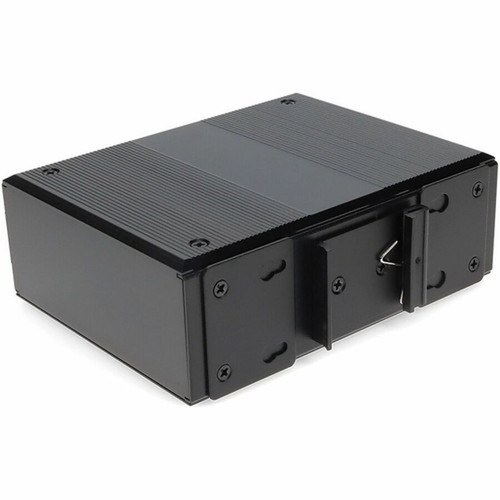

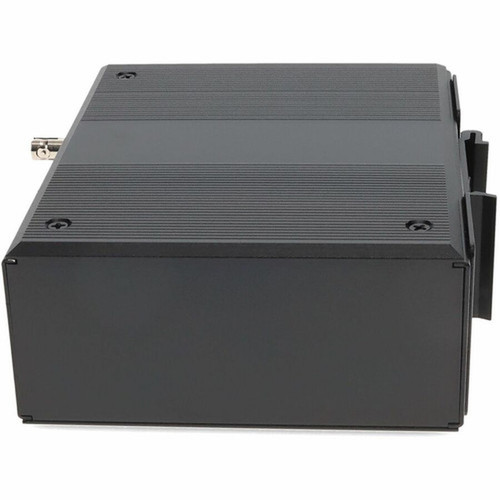

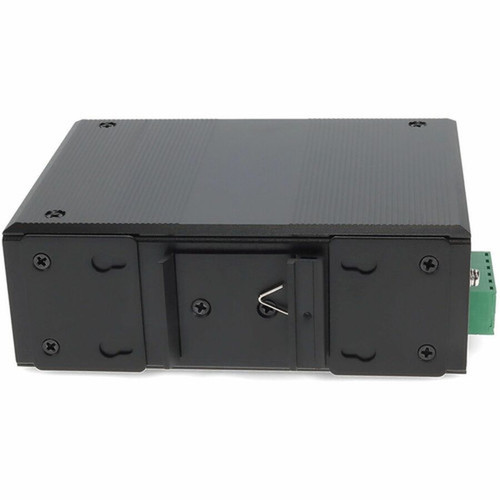

The compact industrial enclosure measures 5.50" (139.70 mm) in height, 5" (127 mm) in width, and 1.75" (44.45 mm) in depth, with an approximate weight of 1 lb (453.59 g). This form factor supports flexible mounting in control cabinets, network racks, or wall-mounted enclosures. The sturdy construction ensures reliable operation in environments where space constraints and physical durability are priorities.
- Width
- 5" (127 mm)
- Depth
- 1.75" (44.45 mm)
- Height
- 5.50" (139.70 mm)
- Weight
- 1 lb (453.59 g)
- Length
- 1310 nm,1550 nm
Highlights

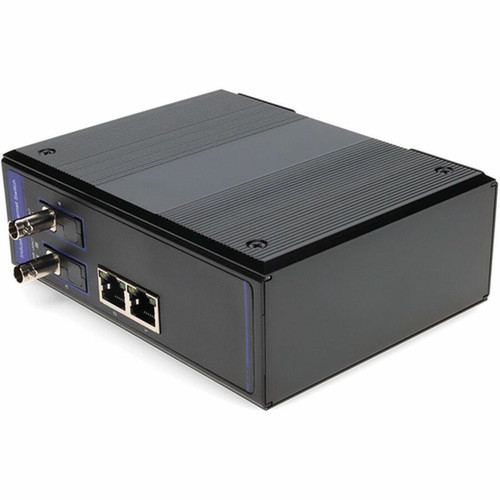

- Converts 2 RJ-45 copper ports to 2 ST single-mode fiber ports
- Supports 20 km fiber distance for extended network reach
- Delivers 1 Gbps Gigabit Ethernet performance on both media types
- Uses 1310 nm/1550 nm wavelengths for bidirectional fiber communication
- Industrial-grade design with terminal block power connection
- Compatible with 10/100/1000Base-T and 1000Base-BX-U standards
- Compact dimensions: 5.50"H × 5"W × 1.75"D (139.70 × 127 × 44.45 mm)
- Backed by 3-year limited warranty for reliable operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-IGMC-BXU-2ST2 |
| Brand Name | AddOn |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 4 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 2 |
| Number of ST Ports | 2 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-BX-U |
| Power Description | |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Height | 5.50" (139.70 mm) |
| Width | 5" (127 mm) |
| Depth | 1.75" (44.45 mm) |
| Weight (Approximate) | 1 lb (453.59 g) |
| Miscellaneous | |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter actually convert?
This converter transforms electrical signals from two RJ-45 Ethernet ports (copper cabling) into optical signals for two ST single-mode fiber ports. It enables communication between copper-based network devices and fiber optic infrastructure, supporting bidirectional data flow at Gigabit Ethernet speeds.
What is the maximum distance supported on fiber?
The converter supports fiber optic cable runs up to 20 kilometers (approximately 12.43 miles) when using single-mode fiber with ST connectors. This extended reach significantly exceeds the 100-meter limitation of standard copper Ethernet cabling, making it ideal for connecting distant network segments.
What types of fiber does this converter support?
It supports single-mode fiber optic cable exclusively, operating with 1310 nm transmit and 1550 nm receive wavelengths. Single-mode fiber provides better performance over long distances compared to multimode fiber, with lower signal attenuation and higher bandwidth capacity for the 20 km range.
What network speeds are supported?
The converter supports Gigabit Ethernet speeds up to 1 Gbps on both copper and fiber interfaces. The RJ-45 ports auto-negotiate 10/100/1000Base-T connections, while the fiber ports operate at 1000Base-BX-U standards, maintaining full throughput across the conversion process.
How is this converter powered?
Power is supplied through a terminal block connector, which provides a secure, screw-down connection that resists vibration and accidental disconnection. This industrial-grade power interface ensures reliable operation in environments where standard power plugs might be insufficient.
What are the physical dimensions of this converter?
The converter measures 5.50 inches (139.70 mm) in height, 5 inches (127 mm) in width, and 1.75 inches (44.45 mm) in depth, with an approximate weight of 1 pound (453.59 grams). This compact form factor allows flexible installation in network racks, control cabinets, or wall-mounted enclosures.
