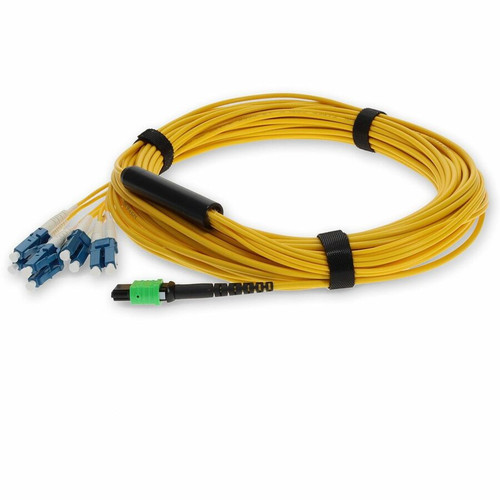

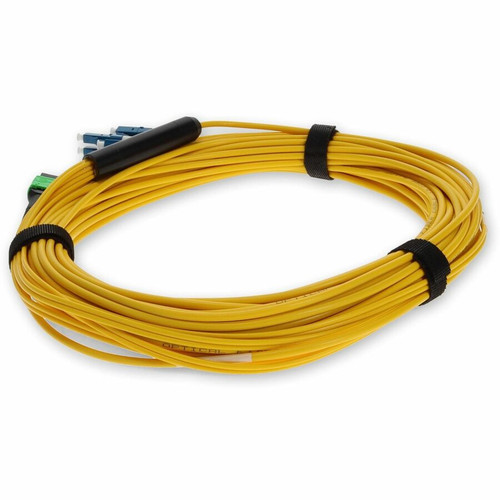

AddOn ADD-MPO-4LC20M9SMF 20m MPO/APC to 4xLC/UPC Duplex OS2 SMF Fiber Fanout Cable - 65. 6 ft Yellow OFNR Riser-Rated
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This cable utilizes single-mode fiber optic technology, optimized for long-haul network links with high bandwidth requirements. The OS2 fiber category and 9/125 µm construction provide low attenuation and dispersion, making it suitable for data centers, enterprise backbones, and telecommunications infrastructure where signal clarity over distance is critical.
The connector configuration features one MPO female end with APC polish, mating seamlessly with MPO-based transceivers or cassettes, and eight LC male ends with UPC polish for direct connection to SFP modules or LC ports. This fanout design simplifies cable management by reducing the need for multiple individual patch cables in high-density setups.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This fanout cable streamlines network deployments by providing a ready-to-use solution for connecting MPO backbone systems to LC-based equipment. Its pre-terminated design eliminates field termination errors and reduces installation time, while the high-quality connectors ensure consistent performance and durability in frequent plug/unplug scenarios.
Enhanced Signal Integrity
APC-polished connectors minimize back reflection, crucial for single-mode fiber applications where signal loss can impact network performance over long distances.
- Reduced optical return loss
- Improved data transmission clarity
Simplified Cable Management
The fanout configuration consolidates multiple connections into a single cable, reducing clutter and improving airflow in rack environments.
- Fewer individual cables to manage
- Cleaner rack organization
Deployment / Use Cases
This cable is ideal for data center environments where high-density fiber patching is required, such as connecting MPO trunk cables from fiber distribution frames to LC ports on core switches or routers. It also serves well in enterprise network upgrades, enabling seamless integration of new equipment with existing MPO-based infrastructure.
Common applications include linking media converters for protocol translation, extending network segments in campus backbones, and providing breakout connectivity in telecommunications central offices. Its riser-rated jacket makes it suitable for vertical runs between floors, while compatibility with network devices, patch panels, and hubs ensures versatility across various network topologies.
Data Center Patching
Use for connecting MPO backbone cables to LC SFP ports on switches, simplifying high-density fiber installations in server racks.
Network Expansion
Deploy in enterprise networks to extend fiber links from MPO cassettes to individual LC-based devices like routers or media converters.
Physical Profile
The cable features a durable yellow OFNR riser-rated LSZH jacket, providing flame resistance and low smoke emission for safe indoor use. With a length of 65.6 feet (20 meters) and a lightweight design at 9.60 ounces, it offers flexibility for routing through conduits, trays, or overhead pathways without excessive bulk. The stranded construction enhances flexibility, making it easier to handle and install in tight spaces while maintaining signal integrity.
- Weight
- 9.60 oz (272.16 g)
- Length
- 65.6 ft (20 m)
Highlights
- 20-meter MPO/APC to LC/UPC duplex fanout cable for high-density network connections
- OS2 single-mode fiber with 9/125 µm core/cladding for long-distance data transmission
- 1 MPO female to 8 LC male connectors with APC polish for reduced back reflection
- Yellow OFNR riser-rated LSZH jacket for safe indoor plenum installations
- Compatible with network devices, patch panels, media converters, routers, hubs, and switches
- Stranded construction for enhanced flexibility and easier handling during deployment
- Lifetime limited warranty for long-term reliability assurance
- Pre-terminated design eliminates field termination, reducing installation time and errors
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MPO-4LC20M9SMF |
| Brand Name | AddOn |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1.0 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Fan-out Cable |
| Fiber Optic Mode | Single-mode |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Category | OS2 |
| Cable Length | 65.6 ft (20 m) |
| Connector Type on First End | MPO Network - Female |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 8 x LC Network - Male |
| Shielding | No |
| Jacket Type | OFNR,Riser,LSZH |
| Device Supported | Network Device,Patch Panel,Media Converter,Router,Hub,Switch |
| Features | Stranded,Angled Physical Contact (APC) |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Weight (Approximate) | 9.60 oz (272.16 g) |
| Miscellaneous | |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the purpose of this MPO to LC fanout cable?
This cable converts a single MPO connector into eight individual LC duplex connectors, allowing you to break out a multi-fiber trunk cable for connection to LC-based network equipment like switches, routers, or media converters. It simplifies high-density fiber patching in data centers and enterprise networks by reducing the number of separate patch cables needed.
What type of fiber does this cable use, and why is it important?
The cable uses OS2-grade single-mode fiber with a 9/125 µm core/cladding specification. Single-mode fiber is designed for long-distance data transmission with minimal signal loss, making it ideal for backbone links, data center interconnects, and telecommunications applications where high bandwidth over extended distances is required.
What does APC polish mean on the connectors?
APC stands for Angled Physical Contact, which refers to the 8-degree angled end face on the connectors. This design reduces back reflection (optical return loss) compared to flat UPC polish, improving signal integrity in single-mode fiber systems. It is particularly beneficial for high-speed networks and long-haul links where signal clarity is critical.
Is this cable suitable for indoor plenum installations?
Yes, the cable features an OFNR riser-rated LSZH jacket. OFNR indicates it is suitable for riser applications (vertical runs between floors), and LSZH means low smoke zero halogen, which reduces toxic fumes in case of fire. This makes it safe for indoor use in plenum spaces, such as air handling areas, without requiring additional conduit.
What devices is this cable compatible with?
The cable is compatible with a wide range of network equipment, including network devices, patch panels, media converters, routers, hubs, and switches that support MPO or LC connectors. It is commonly used with SFP modules, fiber distribution frames, and high-density switching environments to facilitate reliable fiber optic connectivity.
What is the warranty coverage for this fiber optic cable?
AddOn provides a lifetime limited warranty for this cable, ensuring long-term reliability and support against defects in materials or workmanship. This warranty reflects the durable construction and quality components used, giving you confidence in its performance for critical network infrastructure deployments.
