AddOn ADD-MPO-6LC3M9SMF MPO/APC to 6xLC/UPC Duplex Yellow OS2 OFNR Riser-Rated 12-Strand SMF Fiber Fanout Cable - 9. 8 ft (3 m)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This cable employs single-mode fiber optics, which supports longer transmission distances and higher bandwidth compared to multimode alternatives. The OS2 classification indicates it is optimized for outdoor and long-haul applications, though its riser-rated jacket also makes it suitable for indoor vertical installations. The 9/125 µm core/cladding size is standard for single-mode fiber, ensuring compatibility with most network equipment designed for such media.
The MPO connector on one end features a female interface, while the other end terminates in twelve LC male connectors. This configuration is ideal for breakout applications where high-density MPO trunks need to connect to individual LC ports on switches, media converters, or patch panels. The APC polish on the connectors provides an 8-degree angle to reduce reflectance, which is particularly important in networks using sensitive optics like those in GPON or active Ethernet systems.
Key Product Advantages
This fanout cable simplifies network deployments by reducing the number of individual patch cords needed. Instead of managing twelve separate LC cables, a single MPO trunk can be broken out efficiently, saving space in cable management systems and reducing installation time. The stranded construction adds durability, allowing the cable to withstand repeated flexing without compromising performance.
High-Density Connectivity
The MPO to LC fanout design supports high-density network environments, making it ideal for data centers, telecommunications closets, and enterprise network racks.
- Consolidates 12 connections into one MPO interface
- Reduces cable clutter in tight spaces
- Compatible with MPO-based transceivers and patch panels
Reliable Signal Integrity
APC connectors ensure minimal signal loss and back reflection, which is essential for maintaining network performance in demanding applications.
- 8-degree angled polish reduces reflectance
- Suitable for sensitive optical networks
- Supports high-speed data transmission
Deployment / Use Cases
This cable is primarily used in environments where MPO backbone cables need to connect to LC-based equipment. Common applications include data center interconnects, fiber distribution frames, and media converter installations. It supports devices such as network switches, routers, hubs, and patch panels, providing a versatile solution for both new deployments and upgrades.
In enterprise networks, this fanout cable can be deployed in riser shafts to connect floors via MPO trunks, then broken out to LC ports in telecommunications rooms. For internet service providers, it facilitates connections between central office MPO panels and customer-premises equipment with LC interfaces. The riser-rated jacket ensures compliance with building codes for vertical runs, while the LSZH material enhances safety in occupied spaces.
Data Center Patching
Use this cable to connect MPO trunk cables from fiber enclosures to LC ports on top-of-rack switches or media converters, streamlining cable management in high-density racks.
Telecom Backbone Breakout
Deploy in central offices or headends to break out MPO backbone fibers into individual LC connections for distribution to various network segments or customer endpoints.
Physical Profile

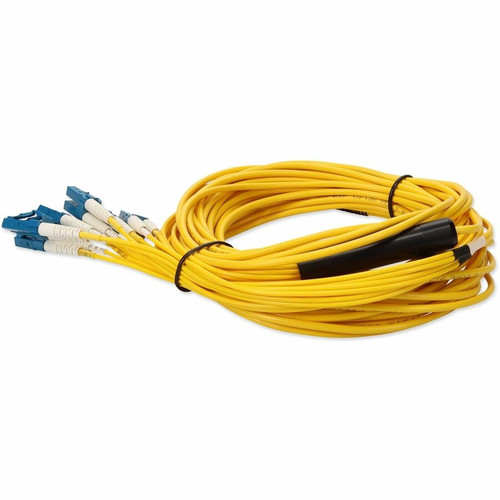

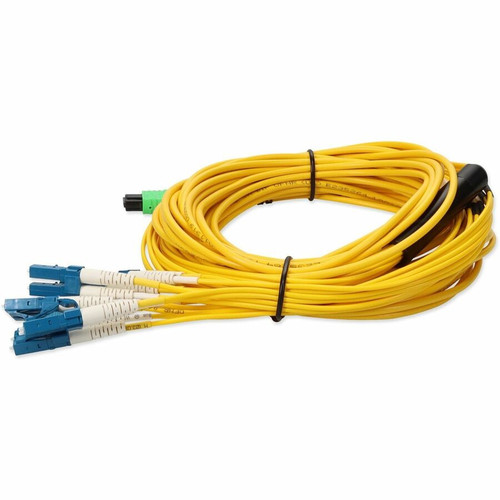

The cable features a bright yellow jacket, which aids in quick identification and differentiation from other cable types in complex installations. With a weight of approximately 6.40 ounces (181.44 grams), it is lightweight enough for easy handling without adding significant load to cable trays or hooks. The 9.8-foot (3-meter) length provides ample reach for typical patching scenarios while minimizing excess slack.
- Weight
- 6.40 oz (181.44 g)
- Length
- 9.8 ft (3 m)
Highlights
- Converts MPO/APC to 6xLC/UPC for high-density network connections
- Uses single-mode OS2 fiber with 9/125 µm core/cladding for long-distance transmission
- Features Angled Physical Contact (APC) connectors to minimize back reflection
- Yellow OFNR riser-rated LSZH jacket ensures safety in vertical indoor runs
- Supports devices like network switches, routers, patch panels, and media converters
- Stranded construction enhances durability and flexibility
- 12-strand duplex design simplifies cable management
- Made in the United States with a lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MPO-6LC3M9SMF |
| Brand Name | AddOn |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1.0 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Fan-out Cable |
| Fiber Optic Mode | Single-mode |
| Fiber Type | Duplex |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Category | OS2 |
| Cable Length | 9.8 ft (3 m) |
| Connector Type on First End | MPO Network - Female |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 12 x LC Network - Male |
| Shielding | No |
| Jacket Type | OFNR,Riser,LSZH |
| Device Supported | Network Device,Patch Panel,Media Converter,Router,Hub,Switch |
| Features | Stranded,Angled Physical Contact (APC) |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the difference between MPO/APC and LC/UPC connectors?
MPO/APC connectors are multi-fiber push-on connectors with an Angled Physical Contact polish, designed for high-density applications and reduced back reflection. LC/UPC connectors are single-fiber connectors with an Ultra Physical Contact polish, commonly used for individual fiber connections. This cable converts one MPO/APC female connector to twelve LC/UPC male connectors, bridging these interface types.
Is this cable suitable for outdoor use?
This cable has an OFNR riser-rated jacket, which is intended for indoor vertical runs. While the OS2 fiber is suitable for outdoor applications, the jacket is not rated for direct burial or prolonged outdoor exposure. For outdoor use, consider cables with outdoor-rated jackets or conduit protection.
What devices are compatible with this fanout cable?
The cable is compatible with network devices that support MPO or LC interfaces, including switches, routers, hubs, patch panels, and media converters. It is designed for use in structured cabling systems where MPO trunk cables need to connect to LC ports, common in data centers and enterprise networks.
Why is the cable color yellow?
The yellow color helps identify the cable as single-mode fiber, which is a standard industry practice for quick visual differentiation from multimode cables (often orange or aqua). This aids technicians in managing and troubleshooting complex network installations.
What does 'LSZH' mean in the jacket specification?
LSZH stands for Low Smoke Zero Halogen, indicating the jacket material produces minimal smoke and no halogen gases when exposed to fire. This enhances safety in occupied spaces by reducing toxic emissions and improving visibility during evacuation.
How does the lifetime warranty work for this cable?
The lifetime warranty covers defects in materials and workmanship for the life of the product. If the cable fails under normal use due to manufacturing issues, AddOn will repair or replace it. This warranty provides long-term assurance of quality and reliability for network installations.
