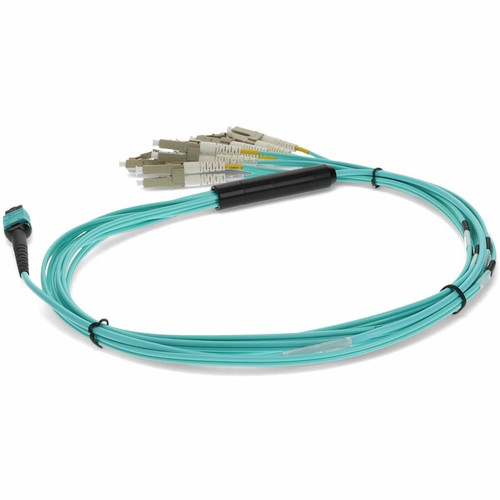

AddOn ADD-MPO-6LC3M5OM3 MPO/UPC to 6xLC/UPC Duplex Aqua OM3 OFNR Riser-Rated 12-Strand Fiber Fanout Cable - 9. 8 ft (3 m)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fanout cable utilizes physical contact (PC) polished connectors to minimize insertion loss and back reflection, ensuring reliable signal integrity in data centers and enterprise networks. The MPO end features a female interface, while the LC ends are male, providing direct compatibility with a wide range of network devices, patch panels, media converters, routers, hubs, and switches.
The OM3 fiber category supports data rates up to 10 Gbps over distances suitable for short-reach applications, such as within server rooms or between adjacent racks. The lack of shielding simplifies handling and reduces weight, while the LSZH jacket material offers low smoke and zero halogen properties for enhanced fire safety in enclosed spaces.
Key Product Advantages
This cable streamlines network deployments by reducing the need for multiple individual patch cords, saving space and simplifying cable management in high-density setups. The precise connector alignment and PC polishing deliver consistent performance, critical for maintaining high-speed data transmission without signal degradation.
High-Density Connectivity
Enables one MPO port to serve six duplex LC connections, ideal for consolidating links in switches, routers, or media converters.
- Reduces cable clutter
- Improves airflow in racks
- Simplifies troubleshooting
Safety and Compliance
The riser-rated LSZH jacket ensures compliance with building codes for vertical runs, while the TAA non-compliant status indicates it is manufactured in the United States.
- Suitable for plenum spaces
- Low smoke emission
- Halogen-free for reduced toxicity
Deployment / Use Cases
This fanout cable is ideal for data center environments where MPO trunk cables are used to connect to LC-based equipment, such as in spine-leaf architectures or storage area networks. It facilitates quick upgrades from older LC patch panels to newer MPO-based systems without replacing entire cable runs.
In enterprise networks, it can be deployed to connect MPO backbone links to LC ports on media converters, supporting fiber-to-copper transitions. The 9.8 ft length provides flexibility for short connections within racks or between adjacent enclosures, minimizing excess cable slack and improving organization.
Data Center Patching
Use to link MPO modules in high-density switches to LC ports on servers or storage arrays, optimizing space in hyper-converged infrastructure.
- Supports 10G Ethernet
- Compatible with OM3 transceivers
- Reduces installation time
Network Expansion
Deploy in network closets to extend MPO backbone cables to LC-terminated patch panels, enabling scalable growth without major re-cabling.
- Facilitates modular upgrades
- Maintains signal quality
- Cost-effective for retrofits
Physical Profile
The cable features a durable aqua-colored LSZH jacket that is both riser-rated and flexible, allowing for easy routing in tight spaces. With a weight of 6.40 oz (181.44 g), it is lightweight enough for overhead tray installations without adding significant load. The 9.8 ft (3 m) length is optimized for short-reach applications, providing sufficient reach for intra-rack connections while minimizing excess cable management.
- Weight
- 6.40 oz (181.44 g)
- Length
- 9.8 ft (3 m)
Highlights
- Converts 1 MPO/UPC female to 6 duplex LC/UPC male connectors for high-density networking
- OM3 multi-mode fiber with 50/125 µm core/cladding, supporting data rates up to 10 Gbps
- 9.8 ft (3 m) length ideal for short-reach data center and enterprise applications
- Riser-rated LSZH jacket ensures safety and compliance for vertical installations
- Aqua color coding aligns with OM3 fiber standards for easy identification
- Physical contact (PC) polished connectors minimize insertion loss and back reflection
- Compatible with network devices, patch panels, media converters, routers, hubs, and switches
- Lifetime warranty provides long-term reliability and peace of mind
- Stranded construction enhances flexibility and durability during installation
- Manufactured in the United States with TAA non-compliant status
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MPO-6LC3M5OM3 |
| Brand Name | AddOn |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1.0 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Fan-out Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Category | OM3 |
| Cable Length | 9.8 ft (3 m) |
| Connector Type on First End | MPO Network - Female |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 12 x LC Network - Male |
| Shielding | No |
| Jacket Type | Riser,LSZH |
| Device Supported | Network Device,Patch Panel,Media Converter,Router,Hub,Switch |
| Features | Physical Contact (PC),Laser-optimized,Stranded |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the purpose of this MPO to LC fanout cable?
This cable converts a single MPO connector into six duplex LC connectors, enabling high-density connectivity in data centers and enterprise networks. It is used to link MPO-based backbone systems, such as trunk cables or switch modules, to LC-terminated equipment like servers, routers, or patch panels, simplifying cable management and reducing the number of individual patch cords required.
What type of fiber does this cable use, and what are its capabilities?
The cable uses OM3 multi-mode fiber with a 50/125 µm core/cladding specification. OM3 fiber is laser-optimized to support data rates up to 10 Gbps over short distances, typically up to 300 meters, making it suitable for high-speed applications within data centers, server rooms, or network closets where low latency and reliable performance are critical.
Is this cable suitable for riser or plenum installations?
Yes, this cable features a riser-rated LSZH (Low Smoke Zero Halogen) jacket, which meets safety standards for vertical installations in riser spaces within commercial buildings. The LSZH material reduces smoke emission and eliminates halogens, enhancing fire safety in enclosed environments, though it is not specifically rated for plenum spaces unless local codes permit riser-rated cables in plenums.
What devices is this cable compatible with?
This cable is compatible with a wide range of network devices, including patch panels, media converters, routers, hubs, and switches that support MPO or LC connectors. It is designed for use in environments where MPO interfaces need to connect to LC-based equipment, facilitating integration in mixed-connector setups without requiring adapters or additional components.
What is the warranty coverage for this fiber optic cable?
The cable comes with a lifetime limited warranty, providing long-term assurance against defects in materials and workmanship. This warranty reflects the product's durability and reliability, offering peace of mind for deployments in critical network infrastructure where downtime must be minimized.
How does the aqua color of the cable relate to its specifications?
The aqua color is an industry-standard identifier for OM3 multi-mode fiber, helping network technicians quickly distinguish it from other fiber types like OS2 (yellow for single-mode) or OM4 (violet). This color coding aids in efficient cable management, reduces installation errors, and ensures compatibility with corresponding transceivers and equipment designed for OM3 fiber.
